NTN SUC205 bearing | SUC205 25mm Stainless Steel Insert Bearing Set

Categories Pillow block bearing
Brand Name: NTN
Model Number: SUC205
Certification: ISO : 9001
Place of Origin: CHINA
MOQ: 1
Price: US$ 0.1-50 /pcs
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000/pcs/month
Delivery Time: 3-15 days
Packaging Details: Single box
Inside diameter: 25 MM
Outside diameter: 52 MM
Thickness/width: 34 MM
Basic dynamic load rating: 12kn
Basic static load rating: 7.06 kN
Weight: 0.2 kg
Category: Stainless steel insert bearings
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

NTN SUC205 bearing | SUC205 25mm Stainless Steel Insert Bearing Set

NTN SUC205 bearing | SUC205 25mm Stainless Steel Insert Bearing Set

The stainless steel bearings not only have the characteristics of the ordinary bearings: Low vibration, low noise, high precision rotating, lower friction torque and high speed running but also have its special usage function.

The range of application is wide:

It is an acid-proof and alkali-proof
It can work in corrosion medium such as sea water, river aqua, distilled water, sparse nitric acid, maritime climate, steam and so on
It can work in the high or low temperature environment

SUC 205, SUC Stainless Steel Bearing Inserts :

Balls & Rings - 440 Stainless Steel
Seal - Silicone Rubber
Seal Frame & Slinger - 302 Stainless Steel
Retainer - 302 Stainless Steel
Set Screws - 304 Stainless Steel
Locking Collar (SNA only) - 304 Stainless Steel
Lubrication - H-1 Food Grade Grease


Product definition
B34.1 mm
C17 mm
C13.9 mm
d25 mm
D52 mm
GM6x1
m5 mm
r0.5
S14.3 mm
SW3 mm
C11 kN
C08 kN
T min.-20 °C
T max.100 °C
Other features
Weight0.2 kg
Recommended tightening torque for set screw3.9 Nm

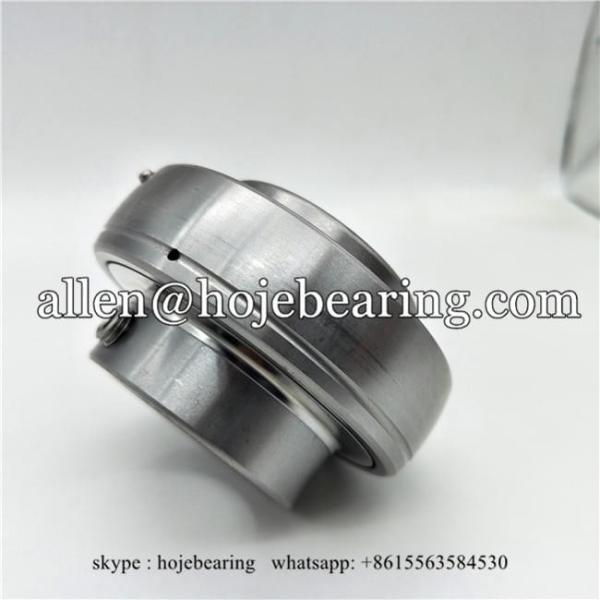

Below is the picturer of NTN SUC205 bearing | SUC205 25mm Stainless Steel Insert Bearing Set :

stainless steel insert bearing

NTN stainless steel bearing
