| Categories | Magnetic Drive Pump |
|---|---|
| Brand Name: | ZY |
| Model Number: | CQB-F |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | 400 |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 15pcs 1 month |
| Delivery Time: | 15days |
| Packaging Details: | plywood |
| material: | cast iron with fluorine |
| color: | blue |
| voltage: | 380v/415v/50hz/60hz |
| motor: | orginal or EX |
| use: | acid-base |
| pressure: | low pressure |
| power: | electric |
| structure: | single-stage |
| Connection Size: | 1/2 to 3 Inch |
| Flow Rate: | 10-100 GPM |
| Horsepower: | 1/2 to 5 HP |
| Impeller Type: | Open/Closed |
| Material: | Cast Iron/Stainless Steel |
| Phase: | Single/Three |
| Pressure Rating: | Up to 150 PSI |
| Product Name: | Magnetic Drive Pump |
| Speed: | 1750/3450 RPM |
| Temperature Rating: | Up to 250°F |
| Voltage: | 115/230V |
| Warranty: | 1 Year |
| Weight: | 20-50 lbs |
| Company Info. |
| QUZHOU ZHONGYI CHEMICALS CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
1. widely usage
2. anti-corrosion
3. non-ageing
4. non-leakage
Brief Instruction:

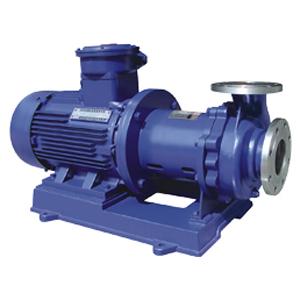

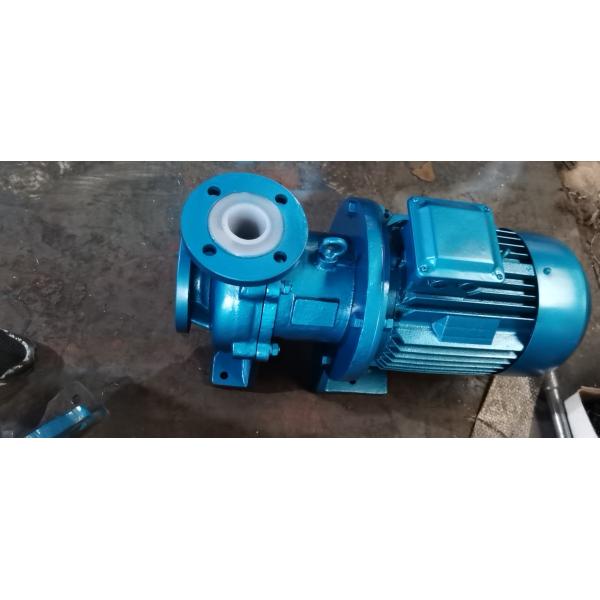

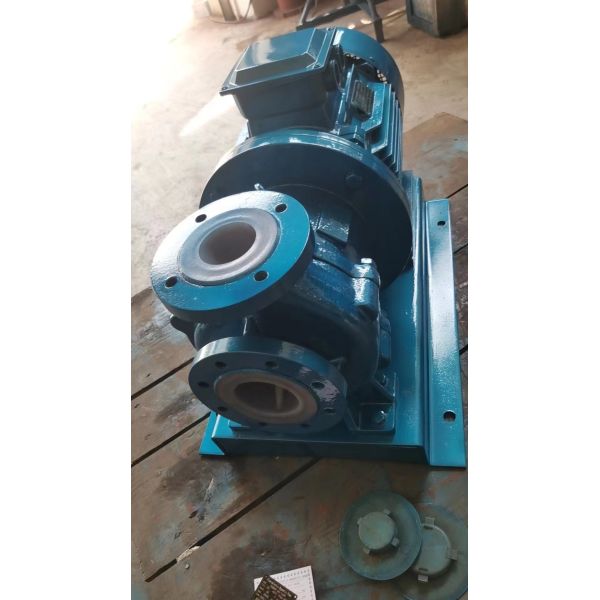

CQB-F fluorine plastic magnetic drive pumps are inline with fluorine. They adopt the best material for anti-corrosion.
Leakage proof design: It is with magnetic drive not shaft seal.
Usage temperature: -20 to 100 degree
Parameters
| Working Principle: | Centrifugal, Magnetic |
| Flowrate range: | 1.6~100m3/h |
| Head range: | 7~50m |
| Max.permissible fluid temperature: | 100°C(212°F) |
| Material: | Cast iron lined with FEP, PFA |
| Power specs: | 0.18~18.5kw / 110~480v / 50/60hz |
| Model | Capacity (m³/h) | Head (m) | Inlet (mm) | Outlet (mm) | NPSH (m) | Motor Power (KW) | |
| CQB20-15-75F | 1.6 | 7 | 20 | 15 | 6 | 0.18 | |
| CQB25-20-100F | 2.5 | 10.5 | 25 | 20 | 6 | 0.37 | |
| CQB32-20-110F | 5.5 | 13 | 32 | 20 | 5 | 0.55 | |
| CQB40-25-120F | 6.3 | 15 | 40 | 25 | 5 | 0.75 | |
| CQB40-40-100F | 6.3 | 11 | 40 | 40 | 5 | 0.55 | |
| CQB40-40-125F | 6.3 | 17.5 | 40 | 40 | 3.7 | 1.1 | |
| CQB40-25-150F | 6.3 | 25 | 40 | 25 | 3.5 | 1.5 | |
| CQB40-25-160F | 6.3 | 32 | 40 | 25 | 3.5 | 3 | |
| CQB40-25-200F | 6.3 | 50 | 40 | 25 | 3.5 | 5.5 | |
| CQB50-32-125F | 12.5 | 20 | 50 | 32 | 3.5 | 2.2 | |
| CQB50-32-160F | 12.5 | 32 | 50 | 32 | 3.5 | 4 | |
| CQB50-32-200F | 12.5 | 50 | 50 | 32 | 3.5 | 7.5 | |
| CQB65-50-125F | 25 | 20 | 65 | 50 | 4 | 4 | |
| CQB65-50-150F | 20 | 25 | 65 | 50 | 4 | 4 | |
| CQB65-50-160F | 17.5 | 32 | 65 | 50 | 4 | 4 | |
| CQB65-50-180F | 18 | 38 | 65 | 50 | 4 | 5.5 | |
| CQB80-65-125F | 50 | 20 | 80 | 65 | 4 | 7.5 | |
| CQB90-65-160F | 50 | 32 | 80 | 65 | 4 | 11 | |
| CQB100-80-125F | 100 | 20 | 100 | 80 | 4 | 11 | |
| CQB100-80-160F | 100 | 32 | 100 | 80 | 4 | 18.5 | |
|
