Cheap 1390 Titanimum Plate OSB Board Laser Cutter Engraver Machine with Dual Heads

Categories Metal & Non-metal Co2 Laser Engraving Cutting Machine
Brand Name: UPGOAL
Model Number: UG-1390ML-2
Certification: CE/FDA
Place of Origin: Jinan, City, Shandong Province, China
MOQ: 1set
Price: USD 3080-USD4000 FOB QINGDAO
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 200 sets/month
Delivery Time: Within 7 working days
Packaging Details: One plywood case, 2020*1600*1300mm, 400kg
Effective working area of each laser head: 1150*900mm
Laser Type: Co2 sealed-off laser tube
Laser tube power A1: W6 series, Reci, Beijing
Laser tube power A2: W2 series, Reci, Beijing
Working table: Double working table:honey comb and strip knife
Auto lifting table: Up and down 300mm automatically
Driver mode: 3 phases stepper motor and Driver, Yako brand
Guide rail: Linear square guide rail ( Hiwin,Taiwan)
Control system: Leetro MPC6585
Control software: LaserCut 6.1
Type of cooling: Industrial chiller, CW-5200 cooling
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Cheap 1390 Titanimum Plate OSB Board Laser Cutter Engraver Machine with Dual Heads

Cheap 1390 Titanimum Plate OSB Board Laser Cutter Engraver Machine with Dual Heads


Application

Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth. Widely used in the industry of Advertising, craft gift, shoes, toys, garment, model, construction, package, paper and computerized embroidery &clipping.

Features

1. Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.

2. Equipped with double metal&non-metal cutting head. Stainless steel, carbon steel, acrylic and wood can be cut.

Laser head A1: with Reci W6 Co2 laser tube, mainly used for thin metal cutting & more thickness non-metal cutting, laser head A2: with Reci W2 Co2 laser tube, used for non-metal engraving and thin non-metal cutting.

3. Reci seal Co2 laser tube, strong cutting ability and long working life.

4. Adopting imported focus lens with high luminous and mirror with high relativity ensure stable power transference and laser beam consistency.

5. Working Table: double working table and auto lifting table

Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.

Knife Strips: With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table:Maximum Loading 50kgs with 300mm up-down distance.

6. Motion System: Imported High precision, low friction force and stand wear and Hiwin linear square guide rail and blocks with 3M belt ensured stable transmission, lower noise

7. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti jamming capability.

8. With advanced embedded Leetro DSP real-time laser cutting control system, running faster, laser intensity and speed automatic matching, perfectly realized the consistency of the corner cutting effect high strength cutting table, applicable for metal and non-metal cutting.

9. Industrial water chiller CW-5200 is equipped to ensure the machine can work last long time.

10. Roller tupe rotary axis for cylinder engraving, no diameter limitation, especially for goblet such glass engraving.


Technical Parameters

Effective working area of each laser head1150*900mm
Laser TypeCo2 sealed-off laser tube
Laser tube power

A1: W6 series, Reci, Beijing

(Rated power: 130W, max. Power: 160W)

A2: W2 series, Reci, Beijing

(Rated power: 90W, max. Power: 100W)

Working tableDouble working table:honey comb and strip knife
Auto lifting tableUp and down 300mm automatically
Driver mode3 phases stepper motor and Driver, Yako brand
Guide railLinear square guide rail ( Hiwin,Taiwan)
TransmissionBelt transmission
Control panelEnglish
Laser output control1-100% software setting
Engraving speed0-60000mm/min
Cutting speed0-10000mm/min
Control systemLeetro MPC6585
Control softwareLaserCut 6.1
Design software when deliveryCorelDraw
Control panelDSP offline
Resolution accuracy< 0.01mm
Location precision< 0.01mm
Highest scanning accuracy2500DPI
Type of coolingIndustrial chiller, CW-5200 cooling
Water protection systemYes
Oxygen control systemHave
Blow-off system

Air pump for the laser head

Air blower for the machine

Working temperature0-45 °C
Operating humidity5-95% (without condensed water)
Supporting picture formatPLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage

AC 220V±10% 50/60Hz, single phase or

AC 110V±10% 50/60Hz, single phase

CertificateCE/FDA

Reference Parts Photos

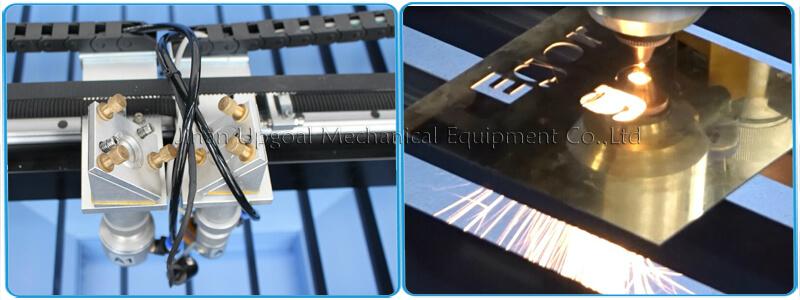

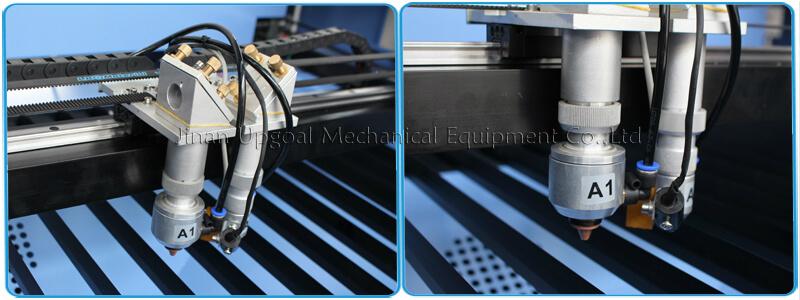

Double heads, A1 for metal non metal, A2 for non -metal

Double heads, A1 for metal non metal, A2 for non -metal

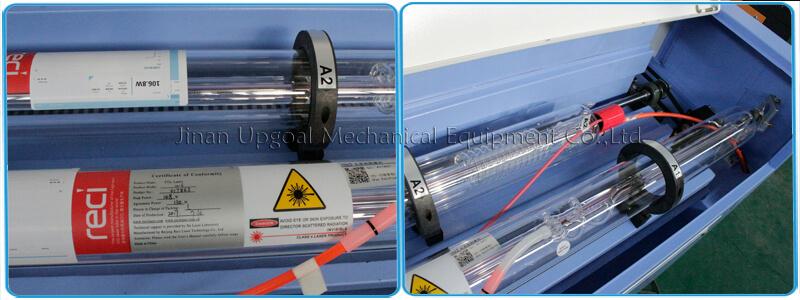

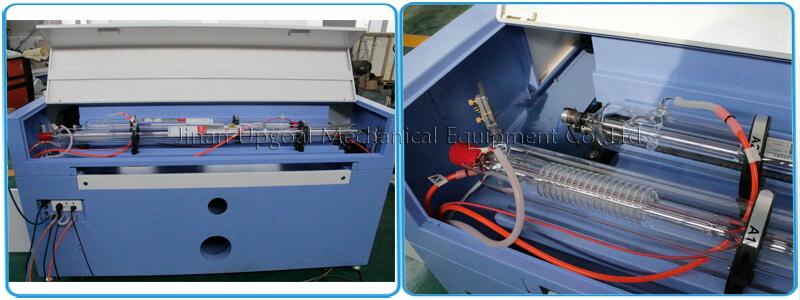

Dual co2 laser tube: A1, Reci W6, 130W, A2, W2, 90W

Dual co2 laser tube: A1, Reci W6, 130W, A2, W2, 90W

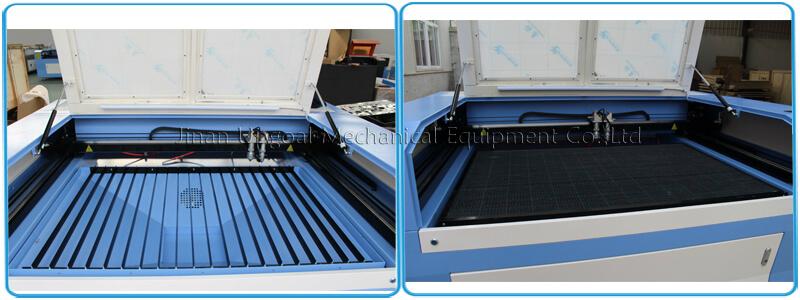

Double working table, honey comb and knife strip

Double working table, honey comb and knife strip

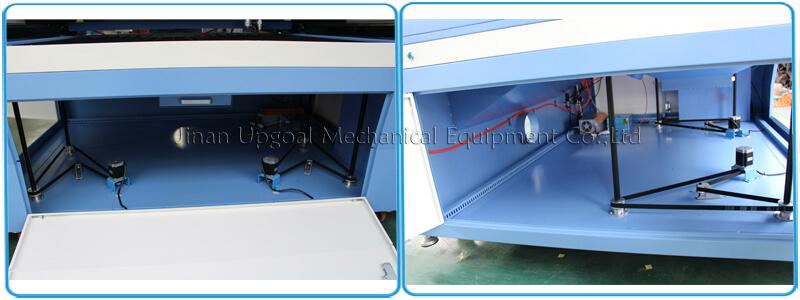

Auto lifting table

Auto lifting table

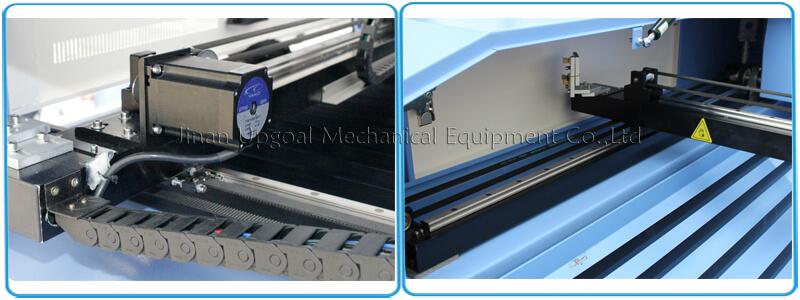

Yako stepper motor and Hiwin linear square guide rail and 3M belt transmission

Yako stepper motor and Hiwin linear square guide rail and 3M belt transmission

Control cabinet

Control cabinet

Oxygen control device

Oxygen control device

Accessories

Accessories


Reference Sample Photos

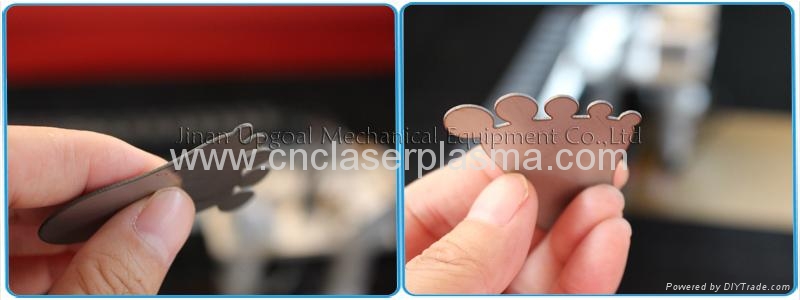

For 0.8mm titanium plate cutting

For 0.8mm titanium plate cutting

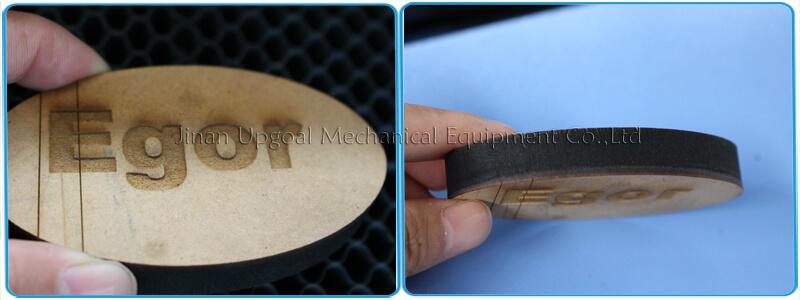

For 12mm OSB board engraving cutting

For 12mm OSB board engraving cutting

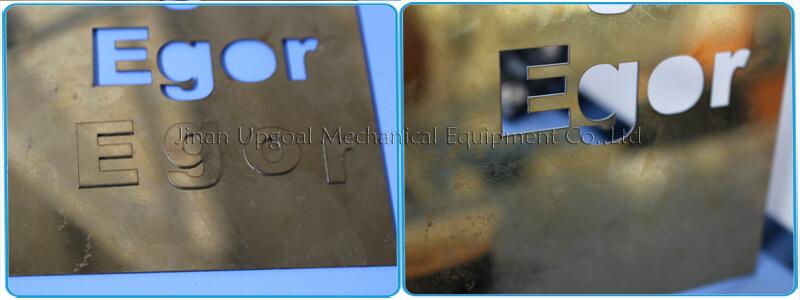

Stainless steel cutting

Stainless steel cutting

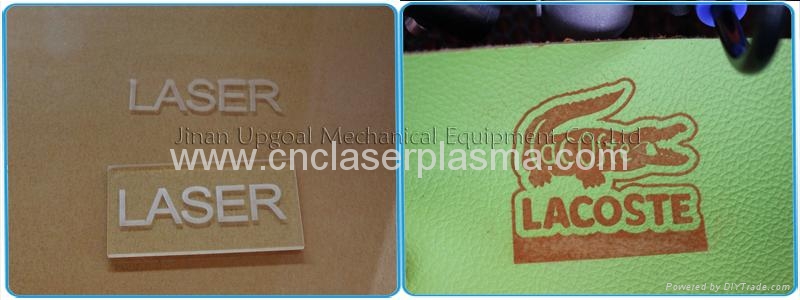

Acrlic & leather engraving cutting

Acrlic & leather engraving cutting

Reference Working Videos


https://www.youtube.com/watch?v=DKR6SOllZNU&index=1&list=LLVM-k1Y6rl9XWcX9CbQsNzg


For more information, just feel free to contact us!
