| Brand Name: | Vanwin Tracking |
| Model Number: | VW619C |
| Certification: | CE/FCC/RoHS |
| Place of Origin: | Shenzhen,China |
| MOQ: | 1pc |
| Price: | negotiated |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; Realtime Analysis Dual Counting Bus Automatic Passenger Counter With 4ch 720P Recording 3g 4g Wifi Supported |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Power Supply: | 8V-36V |
| Sensor type: | Video Counting, 98% accuracy |
| Level: | World class anti-vibration technology |
| Operation Interface: | OSD with mouse and remote control |
| Scanning Style: | Video counting |
| Data transmission: | 3g, GPS, wifi ,gprs, rs232/485, HDD storage |
| Camera: | Binocular Cameras&Monitoring cameras |
| Network: | 3G/4G/WIFI |
| USB port: | Standard 2.0 |
| City bus: | support 1/2/3/4 city buses |
| RS232/RS485: | Supported |
| Operating System: | Linux |
| Company Info. |
| Shenzhen Vanwin Tracking Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Realtime Analysis Dual Counting Bus Automatic Passenger Counter With 4ch 720P Recording 3g 4g Wifi Supported
Features:
* 98% up accurate
* High accuracy despite crowded group
* Not affected by clothes color and passenger height etc
* Long duration and low maintenance
* Accurate counting for On and Off through Front and Back door
* Automatically generate statistic report
* Easy installation and uninstallation
* More accurate surveillance and more effective management on ticket, conductor and driver.
* Supporting 4ch/8ch video recording, SD card& HDD storage.
* Supporting 3g, gps, wifi, alarm, G-sensor functions.
Product Description&Specification:
System: Linux
CPU: TMS320DM6446
Operation Interface: OSD with mouse and remote control
Video Counting input: Max 2 channels
Video Counting output: 1 channel
Accuracy: 98% up
operating voltage: DC 8—36V
Operating power: ≤4W
Operating temperature: -20°C -- +80°C
Operating humidity: 10% -- 95%
USB port: Standard 2.0
Counting input port: Aviation
| Item | Description | |
| OS | Linux3.0 | |
| Graphics Operation Interface | System parameters can be set through external display and remote controller | |
| Security Management | 2-level management for user password, administrator password, supporting encrypted transmission | |
| Video and Preview | Video Input, Output | 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
| OSD | Character superposition function, information superposition of time and date, device ID and GPS, etc. | |
| Video Compression Format | Compression coding. Applying Hisilicon hi-performance processor. | |
| Dual-Stream | Supported | |
| Preview Function | Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images | |
| Frame Rate | PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel | |
| Resolution | AHD 720P,D1, HD1 ,CIF 4channel | |
| Quality | Grade 1 to grade 8 for selection (1 is the best) | |
| Bit Rate | CIF: 300Kbps ~ 1.2 Mbps, 8-level bit rates for selection HD1: 500Kbps ~ 1.5 Mbps, 8-level bit rates for selection D1: 600Kbps ~ 2Mbps, 8-level bit rates for selection 720P: 800Kbps ~ 4Mbps, 8-level bit rates for selection | |
| Audio | Audio Input, Output | 4-channel input, 1-channel output |
| Compression Format | G.726 coding | |
| Recording | Storage Medium | Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology; |
| File Format/ System | Special file system | |
| Video Strategies | Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | |
| Video Search | Searching by time, type, storage device and other conditions | |
| Video Playback | Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files | |
| Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time | ||
| Alarm | Alarm Input/ Output | 8-channel on/off signal alarm input, 2-channel on/off signal alarm output |
| Alarm Recording | duration of recording after alarm can be adjusted from 10s ~ 999S | |
| Storage Space Alarm | Supporting settings for alarm of storage space | |
| Function Alarm | GPS overspeed alarm, acceleration alarm, motion detection alarm | |
| counter | Passenger Video counter | Two doors Synchronous statistics. the recognizing accuracy was more than 95% |
| Communication Ports | 485,RS232, RJ45 10M/100M self-adaptable network interface | |
| Wireless Transmission (Optional) | Supporting Wi-Fi; | |
| GPS (Optional) | Supporting external GPS | |
| PTZ Control | Supporting PTZ control realized by local; | |
| Parameter Configuration | Supporting parameter configuration functions for mobile DVR coding channel; | |
| G-Sensor | Embedded | |
| System Upgrading | Supporting SD card, hard drive upgrading and remote upgrading | |
| Power Supply and Power Consumption | Power Supply | 1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
| Input Voltage | DC:+9V ~ +36V | |
| Output Voltage | +12V@5*0.5A; | |
| Power-off Protection | With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure | |
| Power Consumption | <10W in normal operation; <0.5W in standby mode | |
| Operating Environment | Temperature | Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
| Humidity | 10% to 95% | |
| Dimensions | 160(W) x62(H) x200(D) mm. | |
| Weight | Net: 2020g, Gross: 3500g | |

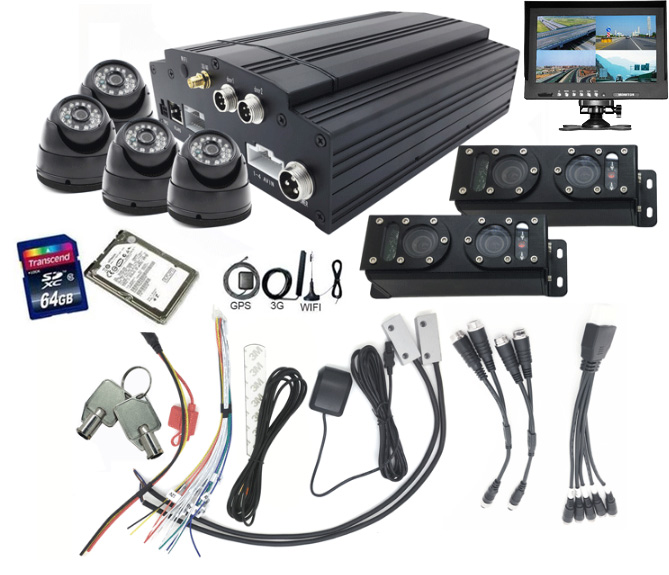

1. Main Unit(below)
Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or 3g/4g
2. Binocular Camera
Mounted on the ceiling of the doors, counts passengers get in or out of the bus.
3. Door Sensor
Door open/close sensor, is used for sensing the door open or close status.
4. 4 Monitoring Cameras
5. One monitor
Platform show
Notice: If you buy our 3G counter(with mdvr together), you will use our platform ;if you buy our GPRS counter ,also you can use our management platform tool ,also you can use your own platform with our protocol by RS232/485 interface.
Please contact us for specific manual in details
|
