Twisted Eye & Eye Construction Lifting Straps , 60mm Crane Lifting Belt

Categories Polyester Lifting Slings
Brand Name: Dahua Sling
Model Number: 2 Ply Type 4 Eye & Eye Polyester Sling
Certification: CE GS ISO
Place of Origin: CHINA
MOQ: 1000 pcs
Price: 8
Supply Ability: 5 containers per month
Delivery Time: 20-30 days for one container
Packaging Details: Package: Shrink Wrap, carton and pallet
Material: 100% High Tenacity Polyester Yarn
W.L.L: 6,200 lbs
Sling color: Yellow
Size: 60mm width, length as request
Logo printing: we do it oursleves
Eye protector: Available
Standard: American Standard according to WSTDA
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

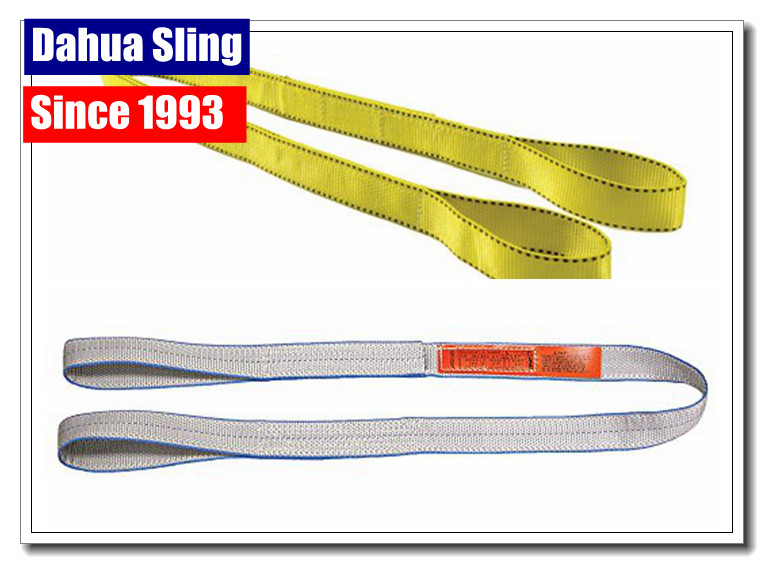

Twisted Eye & Eye Construction Lifting Straps , 60mm Crane Lifting Belt

2"x12' 2 Ply Type 4 Eye & Eye Polyester Sling Weight: 3.2 lbs vertical Capacities-6,200 lbs choker: 4,960 lbs


All of our slings are made to order with a standard lead time of 20-40 days for production prior to shipping.


Sling Width# of PlysEye LengthChokerVerticalBasket
1"18.5"120015003000
1"28.5"248031006200
1"310"330041008200
1"410"4400550011000
2"110"248031006200
2"210"4960620012400
2"312"6600820016500
2"412"88001100022000
3"111"376047009400
3"211"7520940018800
3"314"99001230024700
3"414"131201640032800
4"112"4960620012400
4"212"100001250025000
4"316"122001530030600
4"416"163202040040800
5"114"6300780015700
5"214"110001370027400
5"318"153001910038200
5"418"204002500051000
6"116"7520940018800
6"216"150401880037600
6"318"183002290045900
6"418"248803060061200
8"120"94001180023600
8"220"182002270045400
8"324"245003060061200
8"424"326004080081500
10"124"118001470029400
10"224"227002840056800
10"324"306003820076400
10"424"4080051000101900
12"124"141001760035200
12"224"273003410068200
12"324"367004590091700
12"424"4890061200122300

Features

1. Color, in according with international standard, to validate sling capacity.

2. Special thickness sleeves and special technical to add using life.

3. Each strips equal to 1ton capacity, it is easy to differentiate sling capacity.

4. Clearly print WLL and length on surface of sling.

5. Change-bearing point to add using life.

6. If the core material no break, no loss of strength from abrasion, there is a simple ness way, it is easy to differentiate to decide if the sling is taken away from service or not.

7. 100% polyester has less than 3% extension at rated capacity, and will return originally length, and 9-12% extension at break.

8. Clearly tag with serial number and a copy of certificate together with one sling.

9. Working temperature range: -40 -100.


10. The slings should avoid the harm of the sharp instrument when lifting the goods.


WARNING:

2. You can add the leather or polyester on the outer layer of the slings to protect it when lifting the goods .

3. Never use slings with damages or defects.

4. Forbidden to tie a knot of the sling or link with a knot. You should link the sling with the right connecting piece.

5. Only use slings with clear identifications.

6. Before use,check working load limit, length and working position.

7. Never use slings under -40°C Or more than 100°C .

8. Elongation rate <3% at working load <10% at breaking load.


ADVANTAGE:

  • SGS system and CE approved
  • Top Quality to America market and European markets
  • TUV/GS approved quality
  • Competitive Price
  • Long Time Cooperation
  • 20 customers are sourcing from us for 12 years
  • Quick Shipment
  • Sincere and Efficient work 24-Hours
  • Quick shipment within 20 days to 35 days
  • Produced according to customer's drawing and sample
  • 10 new items developed per month
