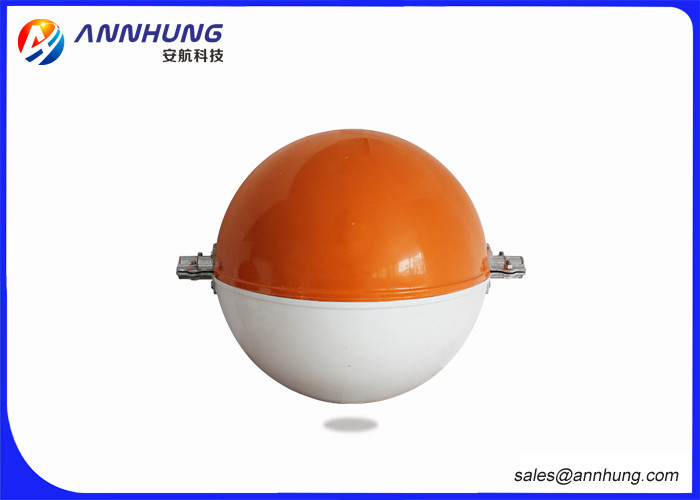

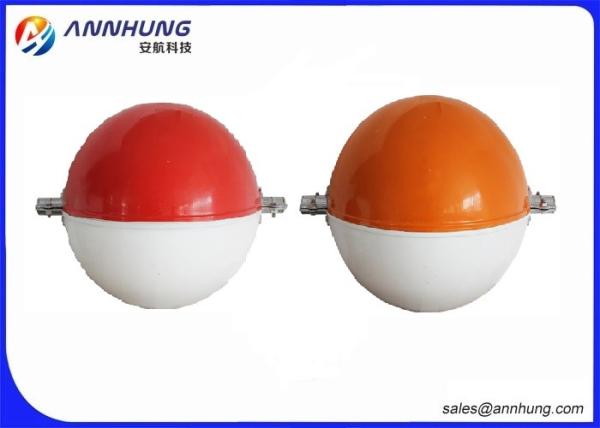

Fiber Glass Aircraft Warning Sphere

AH-AWS Fiber glass Aircraft Warning Ball Aircraft Warning Sphere

Aircraft Warning Sphere is Designed to use for high-rise transmission lines, eg. 110KV, 220KV, 500KV, transmission cables, river-crossing transmission lines to provide the warning marks.

Specification

Installation

1.At the mount point on the alerting ball, wrap cable protecting bars round cables for 1000-1200mm long, with two ends of protecting bars extending 200-300mm beyond the surface of the ball.

2.Fix the plastic wires which are mounted on lower hemisphere of the ball onto the cables and twist them.

3.Combine the lower hemisphere with the upper hemisphere according to module codes. Turn the hemisphere during the assembly and make sure two hemispheres are joined into position .

4.Insert stainless steel bolt(M12*35) and then put flat washers and spring washers around each bolt. Tighten each nut at last.

Anhang Technology is a Specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City,China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE,ICAO,FAA,CAAC,IALA,ROHS,ISO9001, ISO14001, ISO 45001etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), FAA(Federal Aviation Administration)CAAC(Civil Aviation Administration of China).All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we've got 42+ patent certificates.

Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technology like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.

Our products are covered by a lifetime warranty. If the product ever fail in any way, we will repair or replace the item for as long as you own the product.
