LS040S3DX01 Sharp LCD Panel SHARP 4.0 inch CG-Silicon 600×800 380 750:1 16.7M WLED TTL

Categories Sharp LCD Panel
Brand Name: SHARP
Model Number: LS040S3DX01
Certification: ISO9001
Place of Origin: KOREA
MOQ: 1
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY
Delivery Time: 1-3WORK DAY
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Resolution: 600(RGB)×800 , SVGA
Panel Size: 4.0 inch
Panel Type: CG-Silicon , LCM
Display Mode: Normally Black, Transmissive
Active Area: 60.75×81 mm
Outline: 65.5×90 mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

LS040S3DX01 Sharp LCD Panel SHARP 4.0 inch CG-Silicon 600×800 380 750:1 16.7M WLED TTL

LS040S3DX01 Sharp LCD Panel SHARP 4.0 inch CG-Silicon 600×800 380 750:1 16.7M WLED TTL


LS040S3DX01 Detail

Panel Size :4.0 inch
Dot Resolution :600(RGB)×800 (SVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :250 PPI
Aspect Ratio :3:4 (H:V)
Form Factor :
Flat Rectangle Display
Dot Pitch :0.0253125×0.0759375 mm (H×V)
Pixel Pitch :
0.0759375×0.0759375 mm (H×V)
Weight :24.4g (Typ.)

Active Area :
60.75×81 mm (H×V)
Outline Dimension :65.5×90 mm (H×V)
Outline Depth :
1.7 (Typ.) mm
Landscape or Portrait :Portrait type
Touch Panel :
Without
Display Mode :Normally Black, Transmissive
Brightness :380 cd/m² (Typ.)
Contrast Ratio :750 : 1 (Typ.) (Transmissive)
Display Color :
16.7M (8-bit)
Color Gamut :84% NTSC (CIE1931)
Response Time :15/25 (Typ.)(Tr/Td)
Viewing Angle :80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :
Symmetry
White color Chromaticity :
Wx:0.300; Wy:0.330
White Variation :1.25/1.43 (Typ./Max.)(9 points)
Sunlight Readable :N

Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

We can do for you:

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

Our Service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Competitive price for different brands hard disk.

• Mass stock with the better price.

• Multiple options.

• Warranty service.

• Better team to provide the before-sales, on-sale and after-sale service

• Pls send us message if any hard disk needed.


Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
LQ055T3SX04SHARP5.5"1080×1920
LQ079L1SX06SHARP7.9"1536×2048
LQ079L1SX04SHARP7.9"1536×2048
LQ133M1JW08SHARP13.3"1920×1080
LQ156D1JX02SHARP15.6"3840×2160
LQ156Z1JW01SHARP15.6"3200×1800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

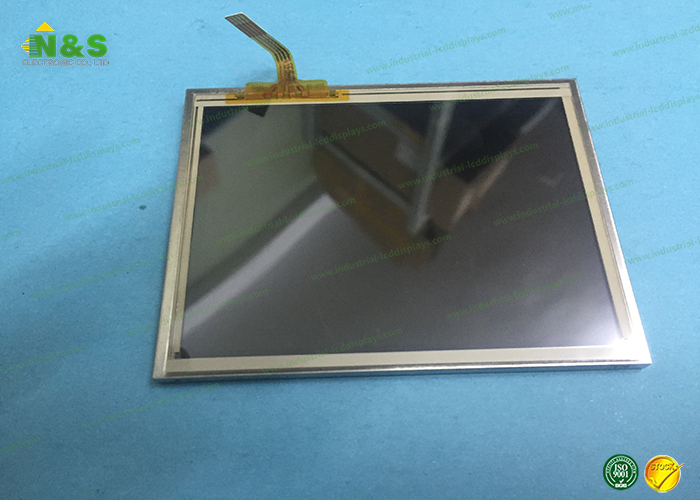

LS040S3DX01 Picture
