| Categories | tensile testing machine |
|---|---|
| Brand Name: | PTE |
| Model Number: | Labeling peel strength tester with computer |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T, Western Union |
| Delivery Time: | wooden case |
| Packaging Details: | within 10 days after the confirmed order |
| Usage: | Universal Testing Machine |
| standards: | ASTM, DIN, BS, JIS, GB, etc. |
| test material: | metal,plastic,rubber,spring, all kinds of rope material |
| fields: | metallurgy, machinery, building engineering,industry,lab,factory |
| Load accuracy: | ≤±1% |

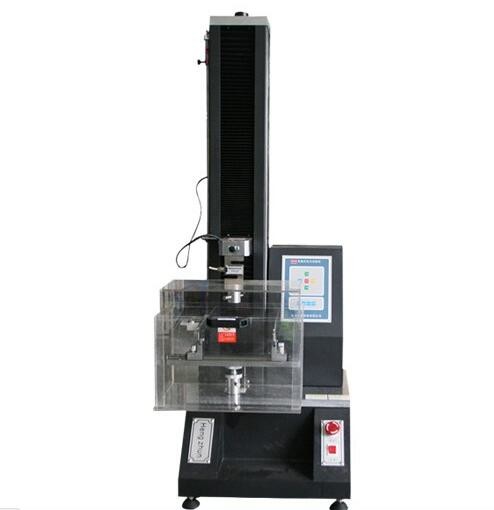

Labeling peel strength tester with computer is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control. This series of machine using single-space structure, operational space at the bottom,it is mainly applied to test non-metallic and metallic material ,which the load is less than 1kN, it has the parameters, such as stress,strain, control mode of displacement ,calculated max force, tensile strength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others.
Applicable industry:
Labeling peel strength tester with computer is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested..
Technical parameters:
| model | PTE 007C |
| Maximum load | 50N,100N,200N, 500N, 1KN,2KN(optional ) |
| Accurate grade | 1grade / 0.5 grade |
| Effective measuring range | Force from 0.2% to 100% / from 0.4% to 100% |
| Measuring accuracy | the value ±1% / the value ±0.5% |
| Tester resolution | Max load: 1/200000, constant the resolution |
| Load sensor | Basic configuration sensor max load: one |
| Effective tensile space | 400, 500mm (can be increased the tensile space according to customers requirement ) |
| Testing speed | From 0.001 to 500mm/min |
| Accruacy of displacement measurement | Tolerance:±0.5% / tolerance: ±0.2% |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow( two speeds to control ),can jog |
| Return Back | Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%, automatic protection |
| fixture | A set of tensile clamp |
| Machine dimension | 450*550*1400 mm (L*W*H) |
| Motor | Zhongyuan AC servo motor and drive |
| Power supply | 220V , 50HZ or according to the requirement |
| Power | 0.4KW ( depending on different demand of force,using different motor) |
| weight | About 160 Kg |
Main function:
Labeling peel strength tester with computer can be applied to test lots of materials in tension, compression, tear, peel (can 90 degrees and 180 degrees) and other mechanical test, such as rubber, tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons,thread, spring, wood,medicine packaging materials, tapes etc.
Main features:
1. Adopt Panasonic servo motor,the beam moves up and down to test the load through the transmission.
2. The whole control system is safe and high reliability.
3. Microcomputer control the whole testing process, real-time dynamic display the load values, displacement values, deformation,testing speed and testing curves.
4. Microcomputer for data processing and analysis, testing results can be saved automatically, testing curvers can be transferred out after the test, you can know the testing process through the testing curvers, or compare with others curves, or amplify the curvers.
5. The testing software of the Window, with strong processed capabilities of data and graphics, it can immediate print out a complete testing report and testing curves.
6. Has limit protection, overload protection, emergency stop and other safe protective functions.
More detail information ,please kindly contact with me .
|
