IP54 Dustproof 1D Barcode Scan Engine LV1000R 300 Scans / Sec For Kiosk

Categories Barcode Scan Engine
Brand Name: Rakinda
Model Number: LV1000 Bar Code Scan Engine
Certification: CE FCC ROHS
Place of Origin: Shenzhen, China
MOQ: 1 piece
Price: Negotiation
Payment Terms: Western Union, T/T, paypal
Supply Ability: 1000 piece for a week
Delivery Time: 3-10 working days
Packaging Details: package in carton;
Name: Bar Code Scan Engine
Certificate: CE FCC ROHS
Feature: Ease of Integration
IP54 Housing: Dust-Proof
Usage: Kiosk
Function: Read 1D Barcode
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

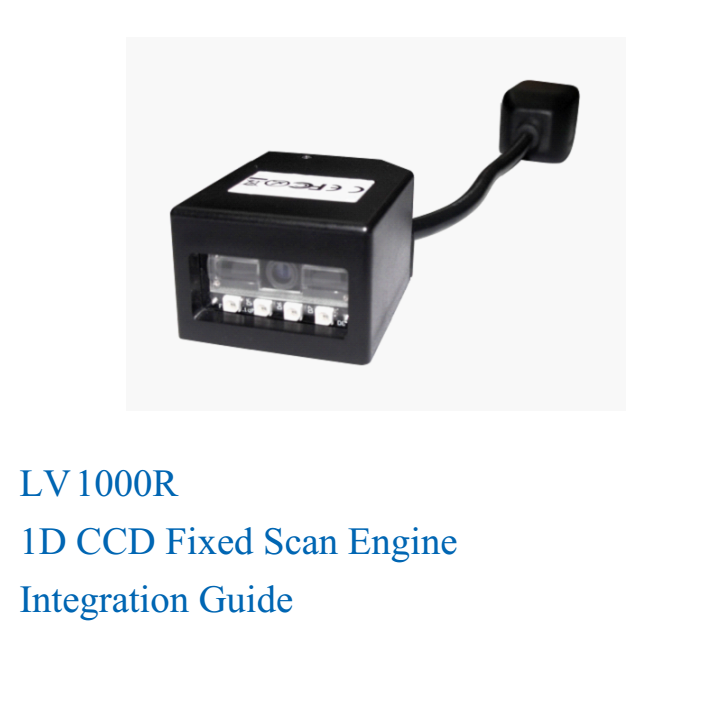

IP54 Dustproof 1D Barcode Scan Engine LV1000R 300 Scans / Sec For Kiosk


IP54 Dustproof 1D Barcode Scan Engine LV1000R 300 Scans / Sec For Kiosk


A bar code scanner having light sensitive means for detecting black and white regions of a bar code and having circuit means for translating the light pulses into digital signals. The scanner system has circuit means responsive to bar codes employing bars of only two different widths, specifically wide bars and narrow bars. The scanner has automatic level control circuitry and has means for detecting the bar code substantially independent of the angle and speed of scan within desired limitations. The scanner also has built-in error checking and warning devices as well as an automatic clear system for clearing errors. The data developed by the scanner is then transferred by suitable circuitry to a data collection and utilization system.



ModelLV1000R
InterfaceRS232
Scan RateUp to 300 scans/sec
Image SensorCCD
Decode Rate200 scans/sec
Resolution5mil
Light SourceLED(622nm-628nm)
Ambient Light0 ~ 100,000 LUX

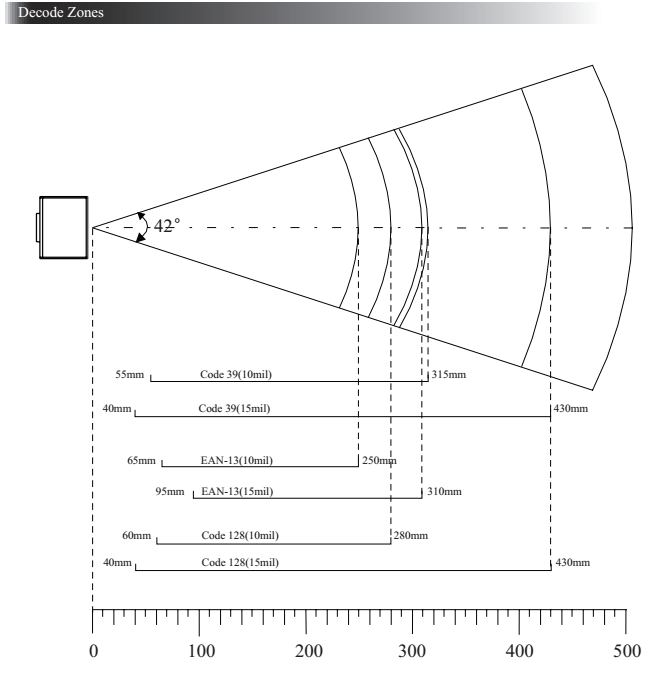

Depth of scan field40mm-430mm
Print Contrast Signal≥30%
Power Consumption1.25W(max)
NotificationBeep
Dimensions49 L×37 W×26 H mm
Weight70g
Operating Temperature-40°C - +60°C
Humidity5% - 95% (non-condensing)
CertificatesFCC Part15 Class B, CE EMC Class B
