2.14MP HD SDI PTZ Video Conferencing Camera , Wide Angle IP Camera For Video Conferencing

Categories Full HD PTZ Camera
Brand Name: WINSAFE
Model Number: AMC-E220N
Certification: CE,FCC
Place of Origin: China
MOQ: 1
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs/month
Delivery Time: 5-8 work days
Packaging Details: Neutral Packing
Field of View: 72.5°-6.3°
Focal: f=3.9mm - 46.8mm
BLC: Yes
Optical Zoom: 12X
Digital Zoom: 12X
WDR: Yes
Noise Reduction: 2D/3D
Image Sensor: 1/2.8" Exmor CMOS, 2.14MP
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2.14MP HD SDI PTZ Video Conferencing Camera , Wide Angle IP Camera For Video Conferencing

2.14MP HD SDI PTZ Video Conferencing Camera , Wide Angle IP Camera For Video Conferencing


Features


※ H.265 video compression,dual stream

※ Compatible with ONVIF,RTSP.RTMP protocols

※ 2.14MP,1/2.8" CMOS

※ With OSD menu,support image flip

※ Come with IR remote comtroller

※ Support standard VISCA & Pelco communication protocols

※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain,

※ Special mechanical PTZ driving system,ensure precise positioning


Technical Specification


Model No.AMC-E220N
Image Sensor1/2.8" Exmor CMOS, 2.14MP
Video Standard(HD)1080p60,1080p/30,1080i/60,720p/60,720p/30
Focalf = 4.7mm - 94mm
IRISF1.6 - F3.5
ZoomOptical: 20X, Digital: 12X
Field of View59.5° - 2.9°
FocusAuto, Manual, PTZ Trigger AF, One push
Min.Illumination0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed1/1 - 1/10,000s
AGCAuto/Manual
White BalanceAuto, Indoor, Outdoor, One push, Manual, Manual, Auto Track
AE ControlAuto, Manual, Shutter Priority, Iris Priority
S/N RatioAbove 50dB
PTZ
Pan Range-170° - +170°
Tilt Range-30° - +90°
Pan Speed0.1° - +120°/s
Tilt Speed0.1° - +80°/s
Preset Number256
OSDYes
Image FlipYes
Network
Max,Image Size1920x1080
Frame RateHD:50Hz:50fps(1920x1080) 60Hz:60fps(1920x1080)
Video CompressionH.265,H.264
Audio CompressionAAC
ProtocolHTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF
Dual StreamSupport
Simultaneous Usersup to 10 users
Interface
HD Video Output InterfaceDVI-D,HD-SDI
Control InterfaceRS-232IN/IR, RS-232OUT/RS-485
EthernetRJ45,100M
General
Control ProtocolVISCA and Support Daisy Chain, PELCO-D, PELCO-P
Address0 - 63
Power SupplyDC12V
Working Temp0°C - +40°C
Storage Temp-20°C - +60°C
Dimension243mm x 145mm x 163mm
Weight1.2KG
ColorGrey
l
Application
HD PTZ Video Coneference Camera are good used on video conference system, Telemedicine, Education Recordered, Church etc.

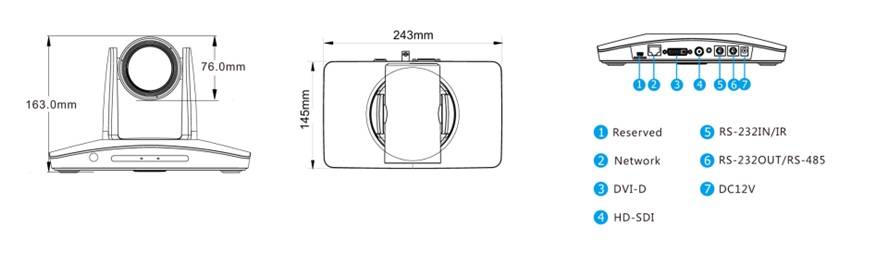

Dimensional Drawing

Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty


2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ


MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days


Why choose us


Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory


Quality 2.14MP HD SDI PTZ  Video Conferencing Camera , Wide Angle IP Camera For Video Conferencing for sale
