Stainless Steel Truck Scale Indicator With Printer 30.5mm LED Display

Truck Scale Indicator Model: T6-4, T6-4A Stainless Steel Housing 6-digit 30.5mm red LED Dimensions: 320×200×180mm Applications: Weigh Bridge, truck scale, platform scales etc. Front Panel View Specifications Analog signal input range: 1 3 mV/V Excitation voltage: 5V DC, up to 8, 350 load...

Truck Scale Indicator

• Model: T6-4, T6-4A
• Stainless Steel Housing
• 6-digit 30.5mm red LED
• Dimensions: 320×200×180mm
• Applications: Weigh Bridge, truck scale, platform scales etc.

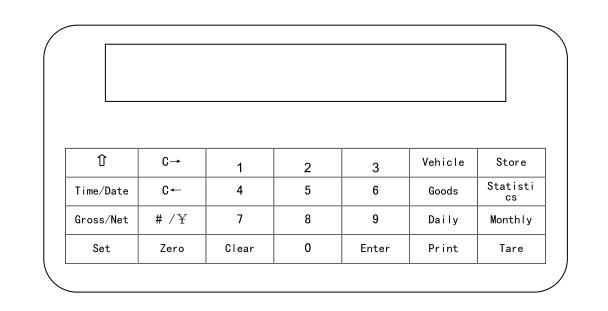

Front Panel View

Specifications

• Analog signal input range: 1 3 mV/V
• Excitation voltage: 5V DC, up to 8, 350 load cells.up to 16, 700 load cells
• A/D resolution: 1.5 million internal counts
• A/D sampling rate: 60 times/second
• Accuracy of measured weight can be temporary increased ten times
• 6-digit, 7-segment with a decimal point, 30.5 mm high LED display
• Real-time clock and programmable date and lock to stop work
• 28 function keys menu driven calibration and configuration
• Selectable display resolution
• Selectable kg and t unit
• Selectable digital filter value
• Four non-linearity calibration points
• Allow changing of indicator without recalibration
• Lock display when overload is greater 130% FS Auto zero range
• Store and recall up to 100 vehicle numbers and tares, 1000 weighing records Optional manual or automatic printout
• Daily, monthly and statistics reports by time, vehicle or goods number
• RS-232C interface with 2 transmit outputs, selectable baud rate: 1200, 2400, 4800, 9600

Our Product
1. Strain Gages
2. Load Cells
3. Portable Axle Scales
4. Pressure Sensors

5. Torque transducer
6. Digital Indicator

7. Signal Amplifier

Product Application
Measurement Application. Medical Application, Electronic Consumption Application

Our Certificate
CE ISO9001

Production Equipment
Force Test Machine, Voltage Meter, High -Low Temperature Cabinet, Environment Test Equipment,  Ageing Test Cabinet, Calibration Equioment

Production Market
Europe, America, Brazil, 5 million per year

Our service
1 year Warranty
