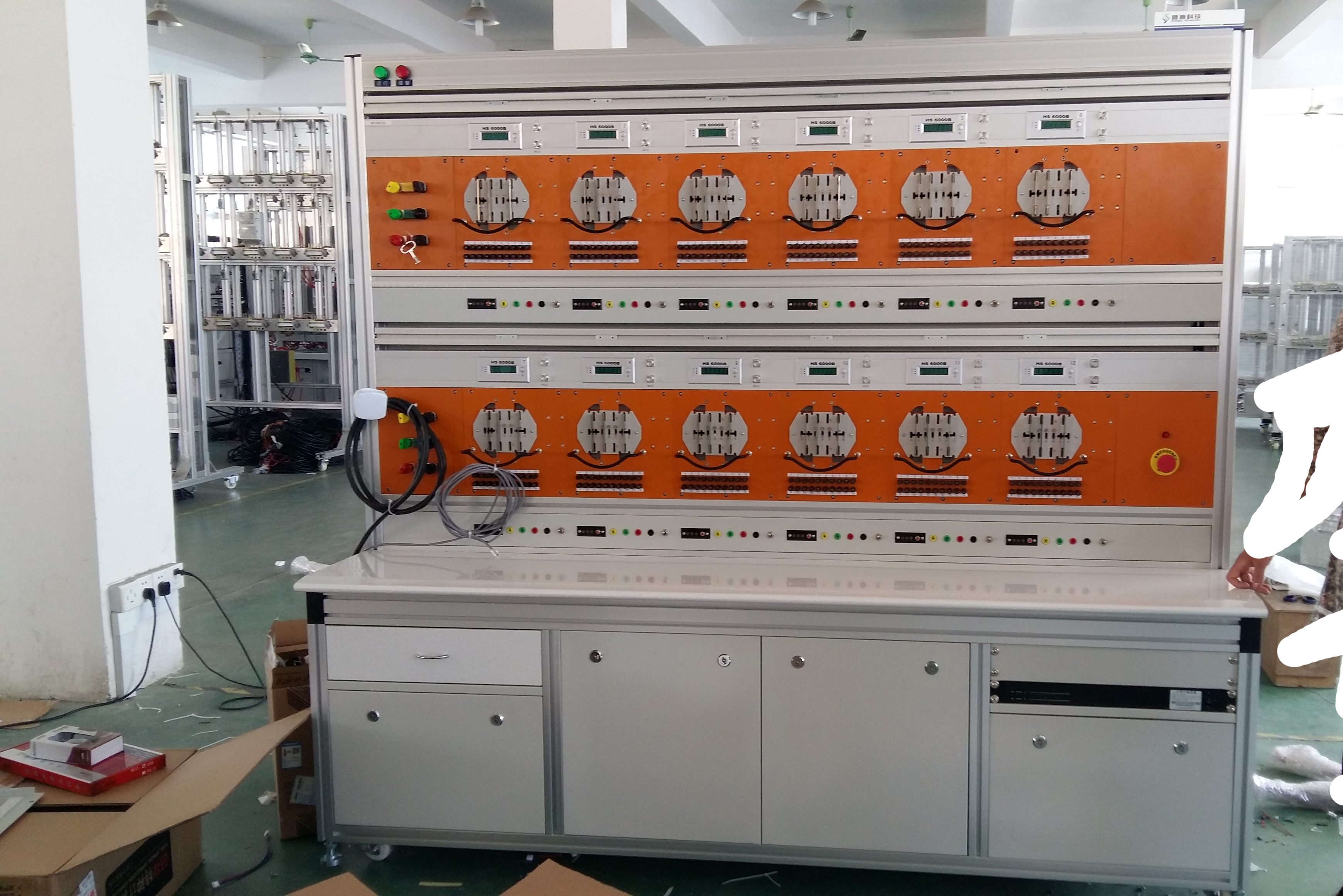

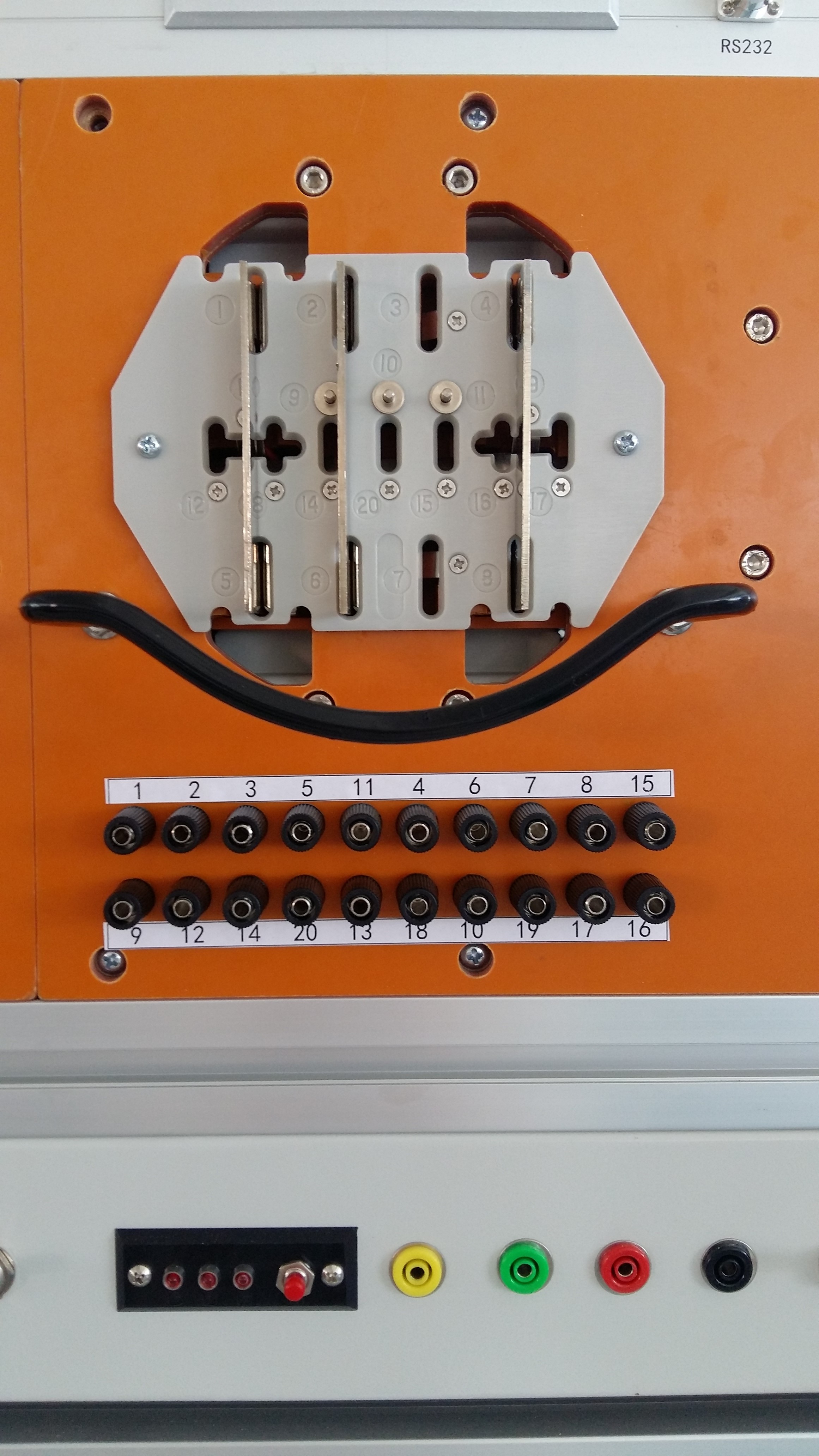

ANSI SOCKET FORM 1S,2S,9S,12S,16S Three-phase electric meter test equipment 24 POSITIONS

Features

1. The bench accords with the standard of “IEC 60736:1982 testing equipment for electrical energy meters”, “IEC 62053”
2. The bench can be used to test both single/three phase active energy meter and reactive energy meter (up to 0.2 class), it is also suitable for four quadrant energy meter testing.
3. The bench can do warm up test, starting test, no load test(creep test), error test(accuracy test), dial test, tests of the influence quantities(reverse phase, voltage unbalance, harmonic wave and so on) and test of repeatability of the measurements.
4. The bench is using the PWM to amplify voltage/current output, the high efficiency at >85%, and lower the heat. The PWM can check the malfunction checking, preset, alarm, and protection
5. The signal source is using the newest digital controlled sine wave technology for frequency, amplitude and phase adjust. The signal source can repeatedly add 2-21 harmonics on the first sine wave, or cause sub-harmonic wave and odd sub-harmonic wave.
6. The bench is using the HS 5300 reference standard energy meter with comparison technology to offer the accuracy of energy meters.
7. The bench is using the error processor system to calculate the error of each energy meter by the sub-error system, which can be connected by the internal RS485.
8. The same specification but different constant energy meter can be tested at one time.
9. The test bench can be installed scanning head, it can offer 3 ranges adjustment. It is also can be accepted the signal for both round-style energy meter and digital LED energy meter.
10. The test bench has the auto-search black marker function which can precisely locate the black marker during the no load test and starting test.
11. The bench can choose to operate by keyboard or PC which is very convenient. The working status of bench can be seen very clear and easy operation.
12. The bench is using the testing software complied with WINDOWS98/2000/XP/WIN7

/WIN8/win10 which can auto-testing different energy meters.

13. The software can realize the data from energy meter for statistics, search and management.

14. The energy meter hanging rack is made by Aluminum compound. The whole device configuration is a reasonable design and nice outfit

Technical Specification

PACKING DETAILS: WOODEN CASE

We are the manufacturer of HS Series Single & Three-Phase Energy meter Test Bench.
