| Categories | Microwave Motion Sensor Module |
|---|---|
| Brand Name: | Hynall |
| Model Number: | HNM01 |
| Certification: | RED, FCC, RoHS |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1,000pcs |
| Price: | To be negotiated |
| Payment Terms: | T/T |
| Supply Ability: | 30,000pcs / month |
| Delivery Time: | 3~4 weeks for bulk orders |
| Packaging Details: | Blister packaging |
| Antenna gain: | 2 dBi |
| Beam aperture: | 30° |
| Receiver bandwidth: | 1Hz~2KHz |
| Input voltage: | 5 ± 0.25V DC |
| Average current: | 1.5mA typ. |
| Duty cycle: | 10% DC |
| Company Info. |
| Hynall Intelligent Control Co. Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

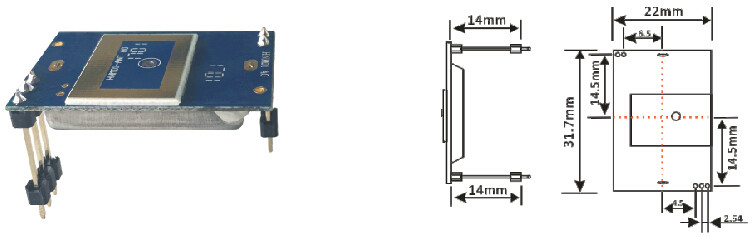

Key Component To Develop Your Own Sensor , Microwave Motion Sensor Module , Pure Antenna
In some cases, customers don't want to use the standard / finished sensor product, they prefer to design and produce their own sensor controls to fit better for their demands and bring more added values to their fixtures, at the same time save cost deeply. This antenna module is just for you to do that as the crucial component. For customers who have enough R&D competence to integrate such antenna module, this is definitely the most cost efficient and flexible solution to develop their own sensor product ranges.
Features--
Low cost.
5.8GHz C-band miniature transceiver.
Patch antenna, antenna gain: 2 dBi.
Beam aperture: 30°.
2 balanced mixer.
5dBm EIRP output power.
Receiver bandwidth: 1Hz ~ 2KHz.
Operating current(CW mode): 13.5mA@5V.
Low power consumption(Pulse mode):
Average current: 1.5mA typ.
Pulse width(min.):10~50µ s(10kHz~2kHz)
| Duty cycle:10% DC |
| RoHS compliant |
| Tested to EN300 440 |

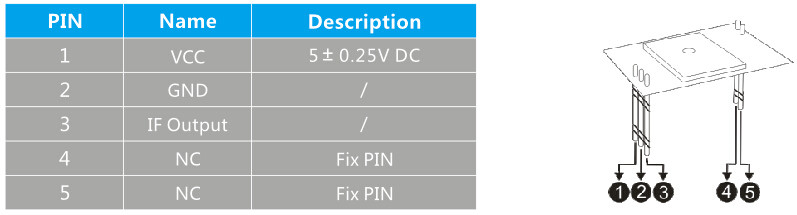

PIN Description--

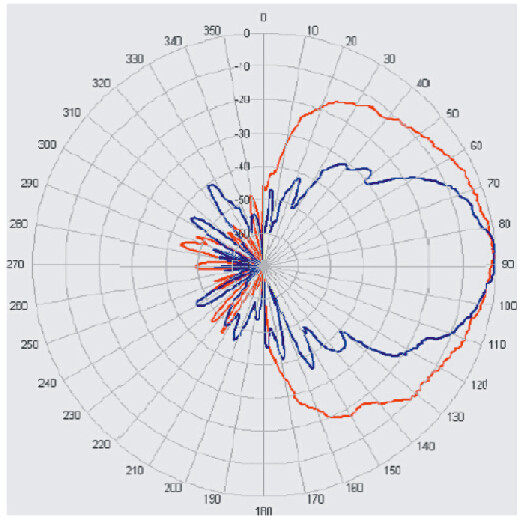

Coverage Pattern--
|
