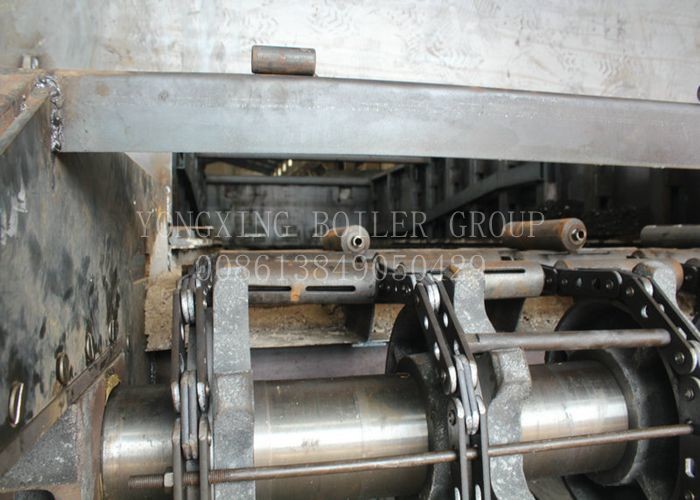

Flake Chain Active Fire Grate Bars Four Claw Grate Bar For Textile Factory

Best selling cast iron flake chain grate bars and active grate bar in coal boiler for textile factory

Four claw furnace row

Product Name: Four claw grate bar

Product material: high silicon cast iron, nodular cast iron

Product specifications: 126mm,210mm,216mm,230mm,252mm,286mm,300mm, etc.

A component for boiler or industrial furnace where solid fuel is stacked and effectively burned.

The entire grate mainly consists of two parts: The frame and the grate.

The grate pieces are usually made of cast iron, and the necessary ventilation gaps are maintained between the sheets after assembly, and often a ventilating chamber is provided under the grate to adjust the air volume so that air enters the fuel layer through the gap to burn. The burnt ash is discharged manually or mechanically. The grate has the types of fixed, moving, reciprocating, vibrating and feeding.

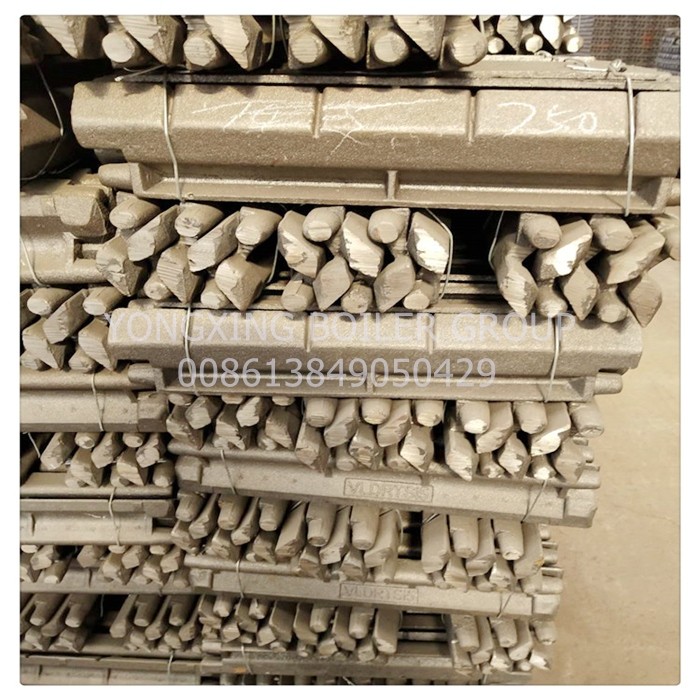

Long eye four claw grate bars

Working pressure: low pressure

Structure: Vertical

Type: fixed

Fuel: coal-fired boiler

Combustion method: Chamber burner

Boiler use: industrial boiler

Model: four claw grate

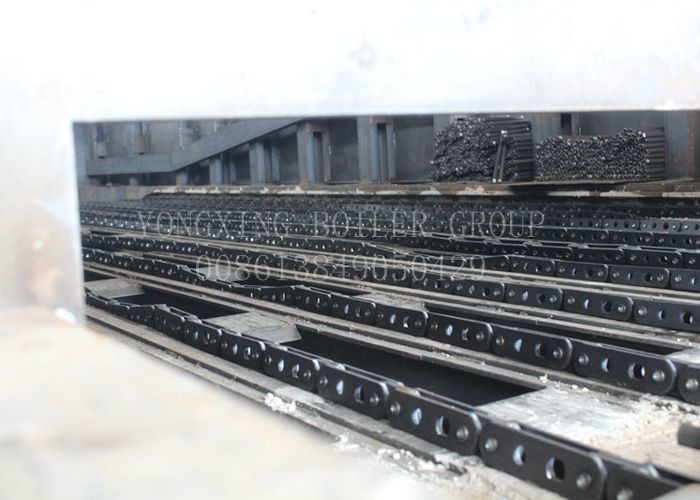

Flake type grate bar

1.Vibrating

There is a small inclination between the grate surface and the horizontal plane, and the grate piece generates periodic vibration by the action of the motor and the eccentric wheel. When vibrating, the fuel layer continuously moves toward the rear of the furnace, so that the burnt ash falls into the ash pit at the end of the grate. This grate is characterized by a simple structure.

2. Feeding bottom

A trough-shaped grate with a screw rod at the bottom of the trough, leading to the coal hopper outside the furnace. The coal is sent from the lower part of the coal hopper to the coal tank through the auger, and enters the high temperature zone from bottom to top. When the ash exceeds the accumulation angle, it is discharged to both sides by gravity. The grate structure is simple, but has certain requirements on the particle size and humidity of the coal, and is generally only applicable to small industrial boilers having an evaporation amount of less than 1 ton / hr.

3. Reciprocating grate

It consists of a set of fixed grate pieces and a set of reciprocating movable grate pieces, which are divided into two types: stepped and horizontal. The reciprocating motion of the movable grate plate gradually pushes the coal seam to the rear combustion, so the grate is more adaptable to the coal species.

Yongxing Boiler Group Co., Ltd. is a group company specializing in research, development, manufacturing, sales and installation services for various boilers and various thermal energy machinery and equipment.

Yongxing Boiler occupies an area of 60,000m2, with fixed assets of 15 million dollars, and is used for more than 100 sets of large and medium-sized equipment for production. More than 60 sets of advanced equipment for product quality inspection, with 37 series. The boiler and pressure vessel contains 167 specifications and models.

With A-class boiler manufacturing license issued by the General Administration of Quality Supervision, Inspection and Quarantine

A1 and A2 pressure vessel manufacturing licenses

The first-class boiler installation and transformation license

The ISO9001 international quality system certification and so on.

Annual production capacity is over 2000 tons.

YONGXING boiler main product:

Coal fired steam boilers, oil/gas steam boiler,hot water boilers, Thermal oil heaters, hot air furnace, oil/gas burners,chain grate accessories, and other environmentally friendly boilers and pressure vessels .

All the equipment are strictly enforced by the state and Industry standard, reasonable product design, advanced production technology, technical content in the country's similar products in a leading position, with compact structure, low noise, high thermal efficiency, safe and reliable operation, high degree of automation, etc.

All environmental indicators are in line with the national class I regional environmental protection standards require excellent products recommended by the environmental protection department.

Our company holds A-class boiler manufacturing qualification, A1, A2 pressure vessel manufacturing qualification and mechanical and electrical equipment installation engineering professional contracting qualification, and passed the international ISO9001 2000 quality management system certification.

Our company strictly follows the ISO9001 international quality management system guarantee model, carries out quality management and quality inspection and control activities, and the product quality is stable. It was rated as “Contract-honoring and Promise-keeping Enterprise” by the Henan Provincial Administration of Industry and Commerce, “National Honest and Law-abiding Enterprise” by the Ministry of Agriculture, and was included in the member unit by the China Quality and Technical Supervision Association, and has obtained a number of patented technologies.
