LCD Wall Mounting Belt Scale Controller For Corrosive Gas Environment

LCD wall- mounting belt conveyer scale indicator for corrosive gas environment

Main Applications

• Belt Weigher with Weight Totalizing.
• Suitable for corrosive gas environment.

Main Features

• EMC design with high anti-jam for industrial environment.
• 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
• 160×32 LCD display screen with yellow-green background.
• 24-bit ∑-△ADC with internal resolution 1/1,000,000.
• High sampling frequency 400Hz.
• Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
• ‘External Speed’ or ‘Inner Speed’ working modes.
• Zero Calibration & Auto Zero Tracking.
• Span Calibration & Segmenting Correction.
• Speed Calibration & Belt Length Calibration.
• Queryable Records per shift/day/month of a year.
• Definable COM[Communication Port].

Technical Specification:

Operation Interface

Model Panel-mounting / Wall-mounting Operation Interface

Model Panel-mounting / Wall-mounting Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the Indicator will return to ‘Main Display Interface’ automatically.

Model Explosion-proof Operation Interface

Model Explosion-proof Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the Indicator will return to ‘Main Display Interface’ automatically.

Model Wall-mounting Installation

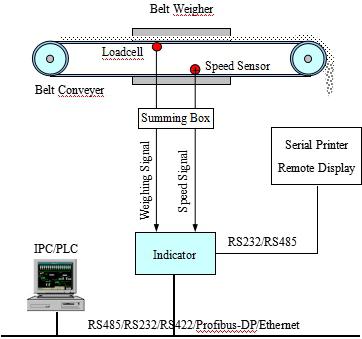

Belt Weighing System

Changsha SUPMETER Technological Co., Ltd., as a council member of China Weighing Instrument Association (CWIA), is a high-tech enterprise which specializes in designing and manufacturing weighing/batching controller, force measuring controller, explosion-proof controller and related system software.

Since founded in 2004, SUPMETER is persisting in doing the same thing of ‘customizing satisfied products for you and building win-win cooperation with you’ and insisting on the core idea of ‘Being Super in Meter and Being Perfect in Service’. On the quality basic of ‘Accurate Weighing, Quick and Steady Control, Standard Communication Bus and Protocol, Suitable for Industrial Environment’, SUPMETER is doing the best to meet your individual requirements and to reach the enterprise goal of ‘Outstanding Quality, Continuous Improvement, Effective Service and Customer Satisfaction’.

The products of SUPMETER have been sold to over 1000 weighing equipment manufacturers from China, Germany, USA, Canada, Australia, Russia, Ukraine, Uzbekistan, Turkey, Pakistan, India, Thailand, Vietnam, Philippines, Malaysia, Indonesia, Singapore, Sri Lanka, South Africa, Nigeria, Zimbabwe, Iran, Saudi Arabia, Jordan, United Arab Emirates, Oman, Palestine, Mexico, Brazil, Argentina, Venezuela, Honduras, Bolivia, Chile, Peru and other countries and regions. And we have built long-time relationship of technical exchange and co-development with many famous enterprises. By tracking and applying international advanced technology and combining with all kinds of typical applications from the worldwide customers, SUPMETER has developed multiple high-quality products for customers and became a famous enterprise and brand in weighing, batching and force measuring field.

We will do our best to make our development more high-efficiency, quality more superior, service more enthusiastic and price more reasonable. SUPMETER, as your faithful team of product-development and technical service, is one of your best choices.

Executing Standard & Product Certification:

• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• OMIL R76: 2006《Non-automatic Weighing Instruments》International Recommendation.
• OMIL R50: 1997《Continuous Totalizing Automatic Weighing Instruments》.
• PRC Approval Certificate No. PA2006F108-43, PA2014F108-43.
• CE Certification No. CPC16/042377, CPC16/042376.
