High Brightness Ultra Wide Stretched Displays LCD Digital Signage 7" - 59"

Categories Stretched Bar LCD Monitor
Brand Name: ITD/OEM
Model Number: ITD07SDN101-ITD59SDN101
Certification: CE, FCC, RoHS
Place of Origin: China
MOQ: 1PCS
Price: TBA
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000PCS/Month
Delivery Time: 5-15 Business Days
Packaging Details: 1-5pcs/CTN, Safe, Firm
Housing Material: Steel Chassis
Inputs: VGA, DVI, HDMI
Power Source: External Power Supply with Universal/Auto-Sensing, DC 24V
Key Control: Power on/off with LED, Menu/Remote Control, Select, Adjustment(Right/Left)
Accessories: Power Supply, VGA/DVI/HDMI cable
Operating Temperature: -10℃-55℃ (-20℃-70℃ optional)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Brightness Ultra Wide Stretched Displays LCD Digital Signage 7" - 59"

stretched bar type lcd display digital signage from 7" to 59"


ITD’s line of ultra wide stretched bar LCD displays provide super wide aspect ratios as wide as 16:1 and in sizes ranging from 6 inches to 60 inches. Large ultra wide displays are ideal for displaying panoramic content and catching an audience's attention in advertising and digital signage applications, while smaller sizes are commonly used in appliances, kiosks, mobile devices, flight simulators, and gaming machines. High brightness is native on all models, and is an option for making these displays suitable for outdoor applications where sunlight readability is necessary. The most popular application for bar-style LCD is in public transportation displays, including route displays onboard trains, streetcars, and busses, advertising displays in airports, bus stations, and train stations, and in several cases they are mounted on top of taxi cabs as mobile ad space.


Specifications:


ModelITD07SDN101ITD14SDN102ITD14SDN101ITD18SDN101ITD19SDN101
Resized Inch7.8”14.4”14.9”18.9”19.1”
Original SizeN/ACut By 15’’N/ACut By 21.5’’Cut By 21.5’’
Active Area184.8(H)x 300(V)337.9(W) × 140(H)360.94(H)x 109.98(V)476.6(H) x 49.6(V)476.6(H) x 88(V)
Contrast Ratio1000:1500:1500:11000:11000:1
Resolution800 x 3001280 x 5301280 x 3901920 x 2001920 x 354
Brightness500nits500nits500nits500nits500nits
Viewing Angles85/85/85/8580/80/70/7080/80/70/7089/89/89/8989/89/89/89
BacklightLEDLEDLEDLEDLED
Unit Dimension197 x 96.2mm421 x 170mm367.9 x 171mm506.6 x 79.7mm506.6 x 119mm
ModelITD25SDN101ITD28SDN101ITD28SDN102ITD35SDN101ITD37SDN101
Resized Inch25.3”28”28.5”35.3”37”
Original SizeCut By 27’’Cut By 32’’Cut By 32’’Cut By 40’’Cut By 40’’
Active Area576(H) x 162(V)698.4(H) x 131.8(V)698.4(H) x 196.4(V)895(H) x 150(V)895(H) x 320(V)
Contrast Ratio1000:11200:11200:15000:15000:1
Resolution1920 x 5401920 x 3681920 x 5401920 x 3251920 x 693
Brightness500nits500nits500nits500nits500nits
Viewing Angles89/89/89/8989/89/89/8989/89/89/8989/89/89/8989/89/89/89
BacklightLEDLEDLEDLEDLED
Unit Dimension606 x 193mm728 x 161.9mm728 x 226.5mm925 x 181mm925 x 351mm
ModelITD37SDN102ITD38SDN101ITD43SDN101ITD49SDN101ITD59SDN101
Resized Inch37.2”38”43”49.5”59”
Original SizeCut By 41.6’’Cut By 41.6’’Cut By 49’’Cut By 55’’Cut By 65’’
Active Area930(H)x 174.4(V)930(H) x 263.6(V)1073.8(H) x 201.3(V)1209.6(H) x 340.2(V)1461(W) × 473.7(H)
Contrast Ratio2500:12500:11300:11400:11400:1
Resolution1920 x 3601920 x 5401920 x 3601920 x 5401920 x 596
Brightness500nits500nits500nits500nits500nits
Viewing Angles89/89/89/8989/89/89/8989/89/89/8989/89/89/8989/89/89/89
BacklightLEDLEDLEDLEDLED
Unit Dimension960 x 204.5mm960 x 293.7mm1103.8 x 231.4mm1239.6 x 386.2mm1461 x 473.7mm
SPECIFICATION
InputsVGA, DVI, HDMI
Convenient FeaturesPlug & Play
Power SourceExternal Power Supply with Universal/Auto-Sensing, DC 24V
Power ConsumptionOperation/Power SavingTBA
Touch PanelOptional
Key ControlPower on/off with LED, Menu/Remote Control, Select, Adjustment(Right/Left)
Operating Temperature-10℃-55℃ (-20℃-70℃ optional)
Storage Temperature-20℃-70℃
Relatively Operating Humidity10% - 90% (non condensing)
Relatively Storage Humidity10% - 90%
AccessoriesPower Supply, VGA/DVI/HDMI cable
Order InformationStretched LCD Monitor with tempered glass/ITD**SDG101/02
Stretched LCD with Single Media Player Integrated /ITD**SDG1A1/A2
Stretched LCD with Android RK3188 Media Player Integrated /ITD**SDG1E1/E2

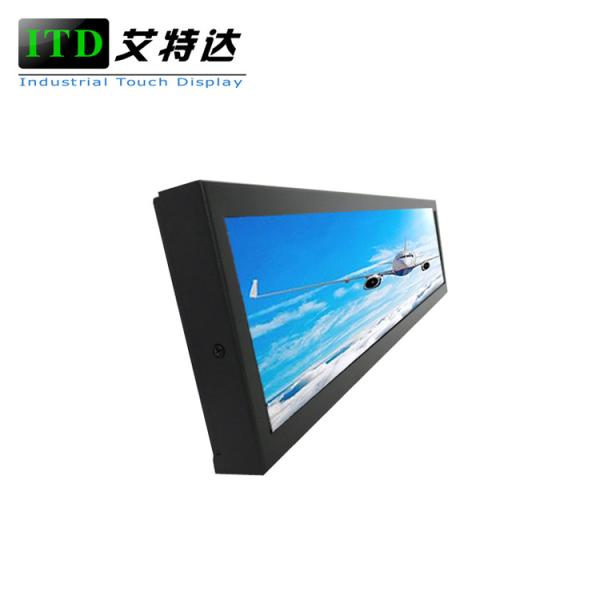

Product Image:
stretched bar lcd
stretched bar lcd display
bar type lcd display
