CE Certificate Pneumatic Booster System 1/4" Improves Speed And Stability

Categories Pneumatic System Components
Brand Name: YTC
Model Number: YT-300N
Certification: CE
Place of Origin: China
MOQ: 1 piece
Price: Negotiation
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Delivery Time: within 1-30 working days after payment
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Model code: YT-300N
name: Pneumatic Volume Booster
Max.Signal/Output Pressure: 0.7MPa
Output Connection: PT(NPT)1/4
Company Info.
FLY AUTOMATION
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

CE Certificate Pneumatic Booster System 1/4" Improves Speed And Stability

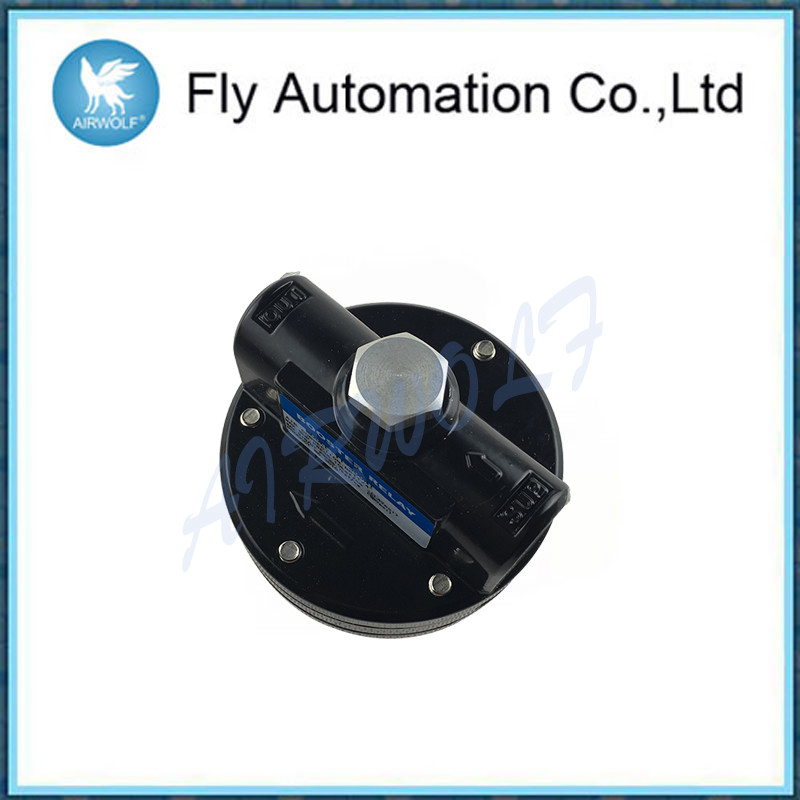

YTC Pneumatic Booster System 1/4" YT-300N YT-305 YT-320 YT-310 Black Aluminum Diecasting Volume Booster​

Product feature

Volume booster YT-300, YT-310 and YT-320 boost the valve function's reaction speed by providing
large air flow rate to actuator.
1. Improves speed of valve movement.
2. Improves stability with by-pass control.
3. Reacts to sudden change in supply pressure.
4.Fixed deadband due to the seat-to-seat type of supply and exhaust pressure.

Item/TypeYT-300
YT-305
YT-320
YT-325
YT-310
YT-315
Max.Supply Pressure1MPa(10bar)
Max.Signal/Output Pressure0.7MPa(7bar)
Signal/Output Pressure Ratio1:01
Flow Capacity
(Cv)
exhaust1.322.085.24
output1.192.724.91
Supply/Output ConnectionPT(NPT)1/4NPT 1/2NPT 3/4
Signal ConnectionPT(NPT)1/4NPT 1/4
Linearity±1% F.S.
Ambient Temp.-20~70℃(-4~158℉)
(Standard type)
MaterialYT-300, YT-320, YT-310Aluminum Diecasting
YT-305, YT-325, YT-315Stainless Steel 316
WeightYT-300YT-320YT-3100.5kg(1.1lb)0.76kg(1.7lb)2.3kg(5.1lb)
YT-305YT-325YT-3151.3kg(2.9lb)1.9kg(4.2lb)5kg(11lb)



After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

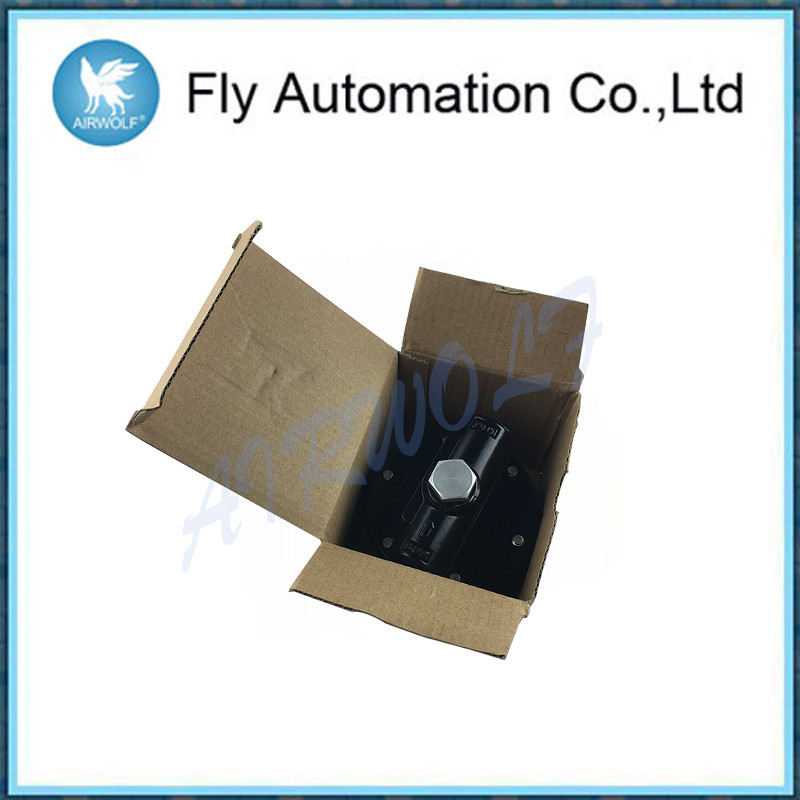

Packaging shipping
1. If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
2. By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.
Competitive Advantage:

Our product features:Our Services Guarantee:
1) Competitive price1) Prompt respond (Reply with 24 hours)
2) Good quality2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging,3) Registration support.
4) Produce according to Customers’ instruction4) Photos/videos are available during production.
5) None delay shipment5) Loading inspection, and send loading photos before shipment.


Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
