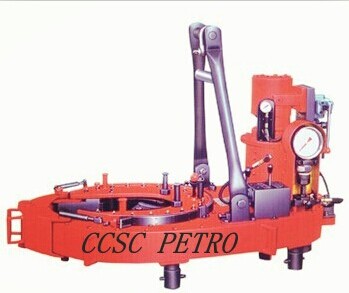

Hydraulic casing tong - Casing Power Tong

Hydraulic casing tong - casing power tong is a wellhead handling tool which is using for quick and safe making up and breaking out of casing,they are strictly designed and manufactured in according with API 7K,size ranges available to meet your casing size.

hydraulic drill pipe tong

Available Specification

Model	Applicable pipe diameter		Max Torque (KN.M)			Hydraulic		Tong Head Speed (rpm)
Model	mm	inch	high gear	mid gear	low gear	Pressure (Mpa)	Flow (L/min)	high gear	mid gear	low gear
TQ178-16	101.6-178	4-7	2.4-3	/	14.5-17.5	18	110-160	54-97	/	9-13.1
TQ178-16Y	101.6-178	4-7	2.4-3	/	15-18	18	110-160	54-79	/	9-13
TQ340-20A	101.6-340	4-13 3/8	3.7	/	15-20	16	110-160	50-80	/	6-14
TQ340-35	114.3-340	4 1/2-13 3/8	2.5-3	6.0-7.5	32-40	18	110-160	60-86	21-30	2.6-5.3
TQ340-35A	114.3-340	4-13 3/8	4.0-5.0	/	27-30	18	110-160	80-98	/	12-16
TQ340-35Y	114.3-340	4 1/2-13 3/8	4.0-5.6	/	26-35.2	21	110-170	57-95	/	9-15
TQ340-50	114.3-340	5 1/2-13 3/8	3.4-4.5	11	44-56	17.2	110-200	52-75	27.4	4.2-6
TQ356-55	114.3-356	4 1/2-14	3.4-4.5	/	45-57.4	16.6	110-160	52-76	/	3.9-5.6
TQ508-70Y	244.5-508	9 5/8-20	8.4-10.7	/	48.9-70.5	20	110-170	26-43.6	/	4-6.6
