AC 385V Three Phase Power Surge Protection Device SPD Power Surge Arrester 25KA

Categories Power Surge Protection Device
Brand Name: BRITEC
Model Number: BR-25GR 3P
Certification: CE
Place of Origin: China
MOQ: 100 Piece/Pieces
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Delivery Time: Shipped in 15 days after payment
Packaging Details: EXPORT PACKING
Item Name: Surge arrester
Place of Origin: Zhejiang, China (Mainland)
Model Numbers: BR-25GR 3P
Uc: 385V
Safety Standard: IEC61643-1
Pole number: 3P
Iimp: 25kA
In: 25kA
Imax: 100kA
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

AC 385V Three Phase Power Surge Protection Device SPD Power Surge Arrester 25KA

AC 385V Three Phase Power Surge Protector Device SPD Power Surge Arrester 25KA


AC 385V Three Phase Power Surge Protection Device SPD Features:


Three-pole lightning current arrester.

• 10/350μs, 8/20μs sparkgap.
• Indicating window.
• Adopt hermetical GDT technology, high follow current extinguishing capability.
• Extremely low voltage protection level.
• Designed according to IEC 61643-1.

AC 385V Three Phase Power Surge Protection Device SPD Technology characteristic:


BR-25GR 3P
Max. continuous operating a.c. voltage Uc385V
Lightning impulse current (10/350us) Iimp25kA
Nominal discharge current (8/20us) In25kA
Max. discharge current (8/20us) Imax100kA
Voltage protection level Up≤2.0kV
Response time tA≤100ns
Degree of protectionIP20
Cross-section area (Min.)4mm2
Cross-section area (Max.)35mm2
Max. backup fuse315A gL
Operating temperature range Tu-40℃—80℃
FunctionInncoming line 1 Class protection
NoteOther maximum continuous working voltage Uc can be customized

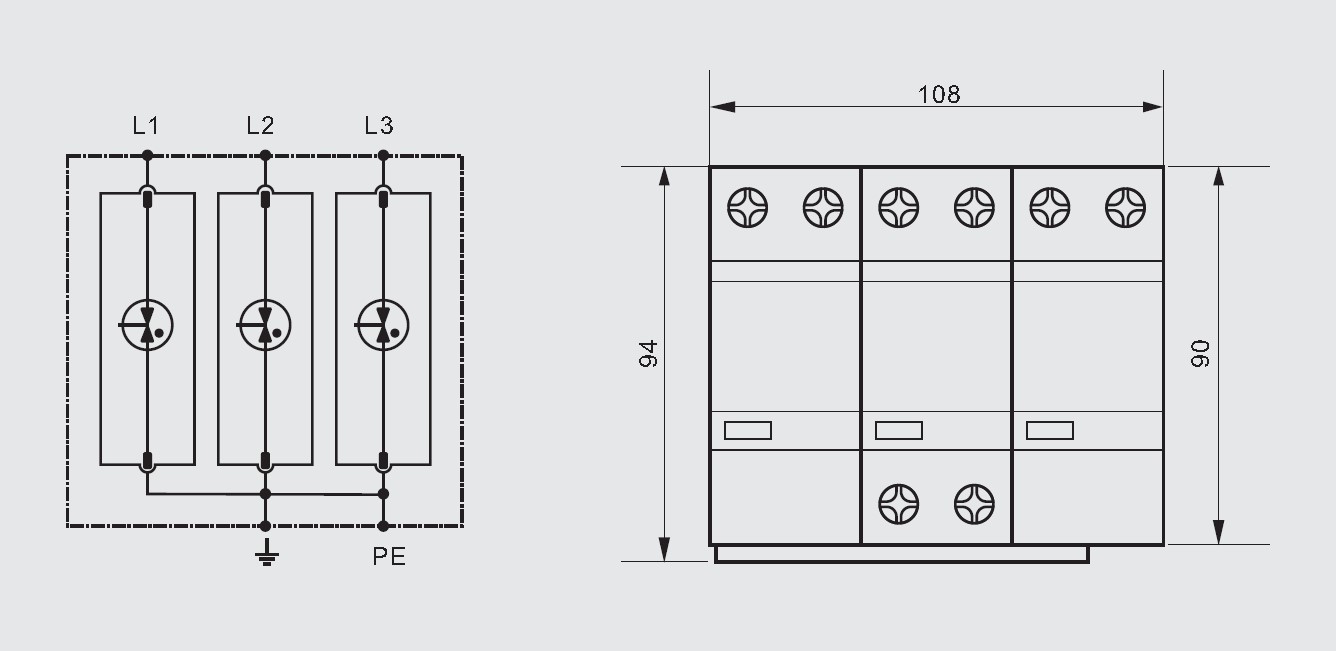

Dimension:


AC 385V Three Phase Power Surge Protection Device SPD Application:


Protecting low voltage equipment against lightning and surge damages.

• Applied in PSD Class I (Class B) for various power supply system.
• SPD is used to protect all kinds of electrical equipment in the power system from lightning over-voltage, operation over-voltage, power frequency transient over-voltage impact damage to an electrical appliance.

Product Line:



Certificate:



FAQ:


Q1. What's the payment term?
A. We accept TT, 30% deposit and 70% balance before shipment.


Q2. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do OEM.


Q3. Do you accept customized order?

A. Yes, we do.


Q4. What's the delievery time?

A. It usually takes 20 days after confirming payment, but specific time should be based on the order quantity.


Q5. Is sample available and free?

A. Sample is available, but it's not free. The cost of sample will be refund after further order.
