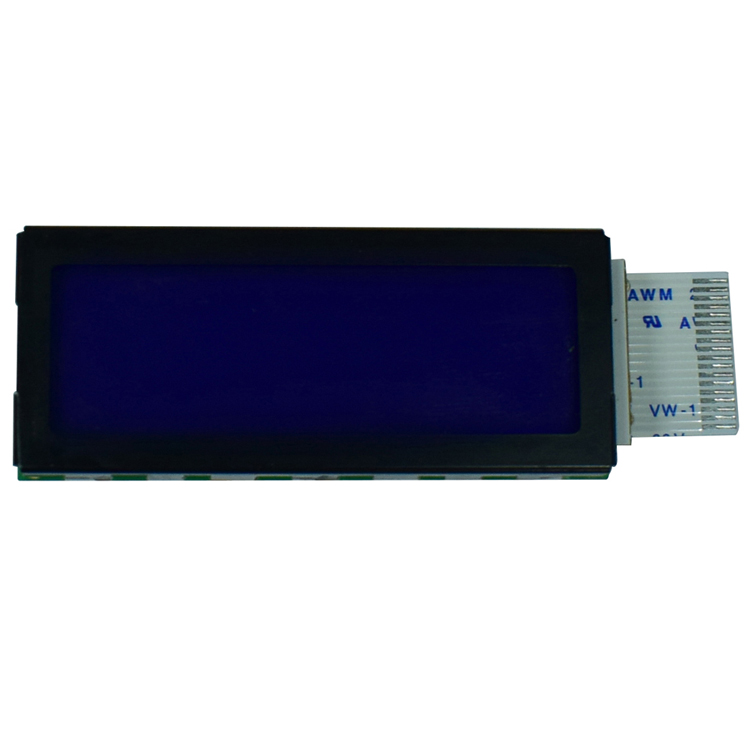

WLED Backlight Type Graphic LCM Module 2.35 Inch Hand Hold Equipment Usage

120*32 graphics dot matrix LCD module,Appearance size: 67.85 (width) * 27.5 (high) mm,12032 LCM

Item number: FLG12032V1.0

Key Description: 120*32 graphics dot matrix LCD module, 12032 LCM industrial control display screen, parallel port

Category: Graphic

Product label: STN graphic LCD module

Applications: electronic tag, hand hold equipment, security, power equipment, industry, medical display, communication equipment, instruments and meters

Panel type: STN-LCD

LCD module

Panel size: 2.35"

Resolution: 120 * 32

Physical shape: flat rectangle

Dot size: 0.42 (width) * 0.45 (high) mm

Point spacing: 0.03 (width) * 0.03 (high) mm

Display size: 53.97 (width) * 15.33 (high) mm (A.A)

Visual size: 57.5 (width) * 18.5 (high) mm (V.A)

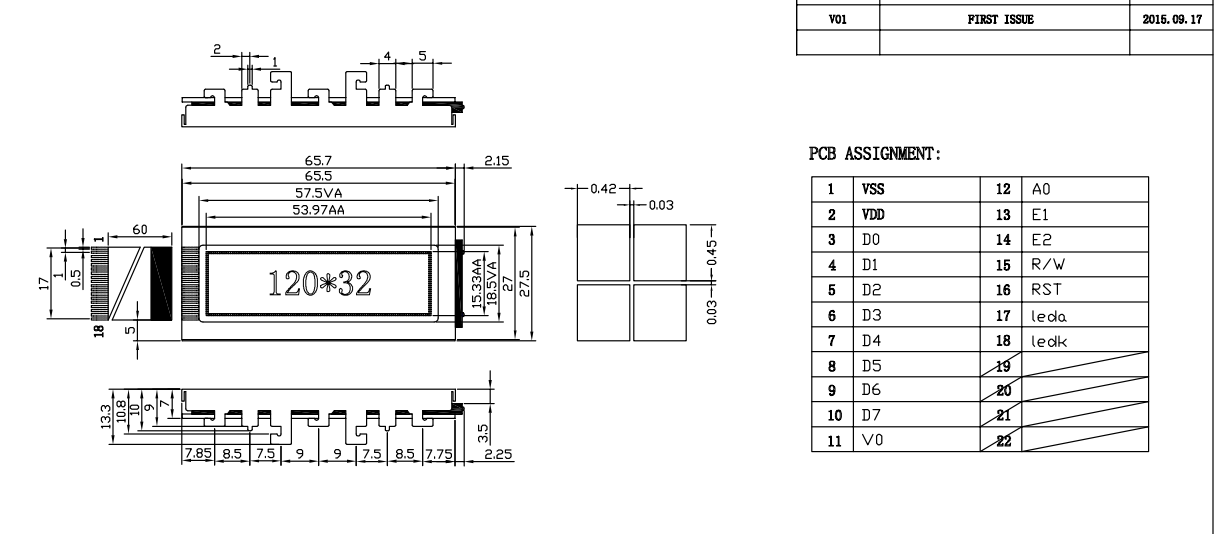

Appearance size: 67.85 (width) * 27.5 (high) mm

Max thickness: 13.5 mm

Polarizer: transmissive type

Color mode: blue film negative display

Best viewing angle: 6 o'clock

Display color: monochrome

Duty cycle: 1/32

Controller: SBN1661G_M18

Bonding mode: COB

Backlight type: WLED

Signal type: parallel port data

Signal pin: 18Pins

Touch screen: None

Operating temperature: -0 ~ 50 degrees C

Storage temperature: -20 ~ 70 degrees C
