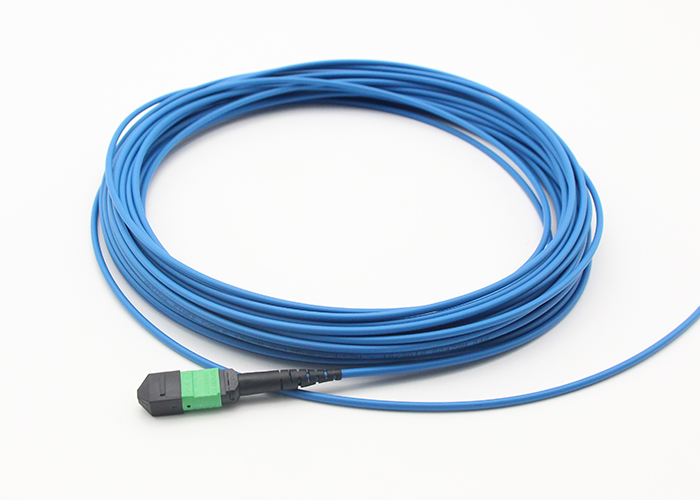

12 Fibers 9 / 125μm 3.0mm MTP APC female pigtail With Blue LSZH Jacket 25M For 40G / 100G Data Center

12 Fibers 9 / 125μm 3.0mm Mtp/APC Female Trunk Cable With Blue LSZH Jacket 25M For 40G / 100G Data Center

​Mtp trunk cable is terminated with MTP connector on both ends. MTP Patch cable/trunk cables connect MTP modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk,just installing a new cassette with the new connector style on the cross-connect side of the patch panel.

Optical Characteristics

MPO Interference index

High Quality MPO Cable Guarantee

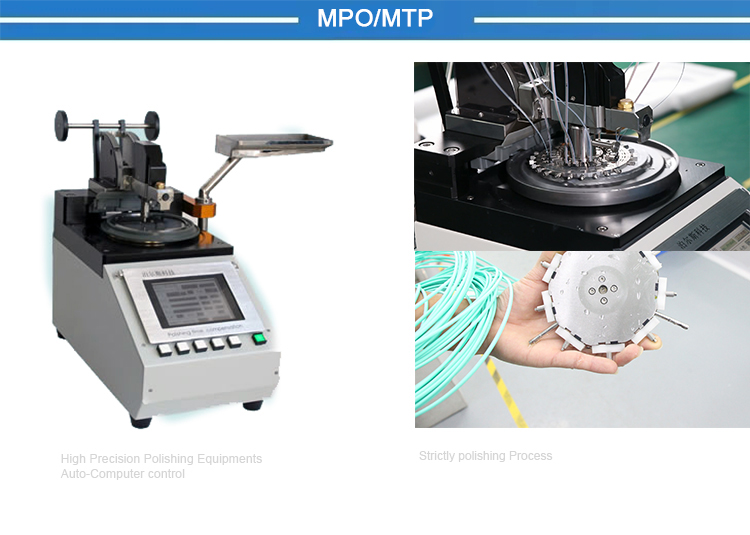

1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.

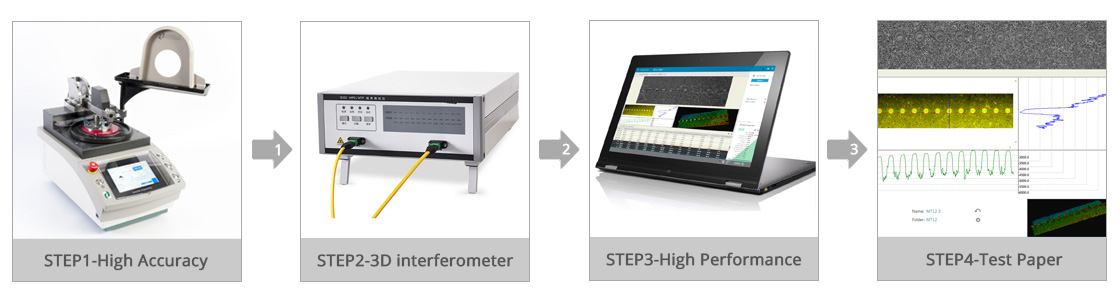

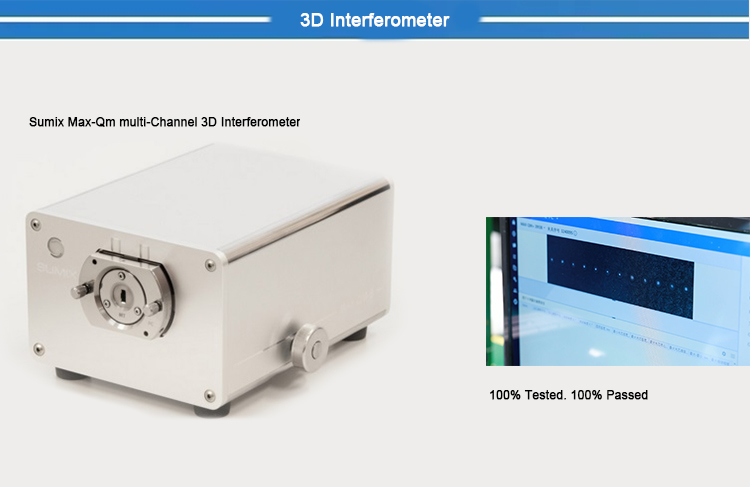

2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.

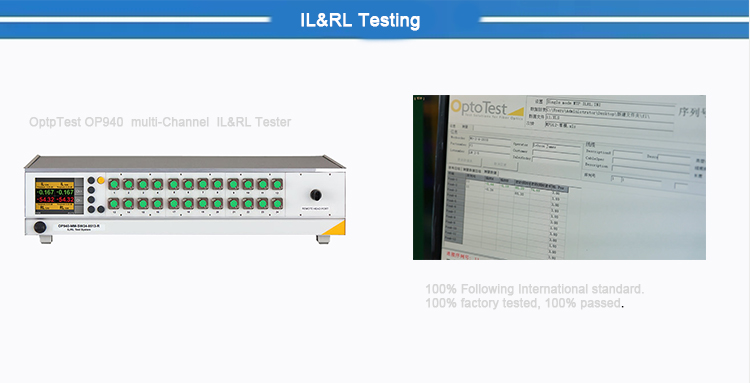

3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.

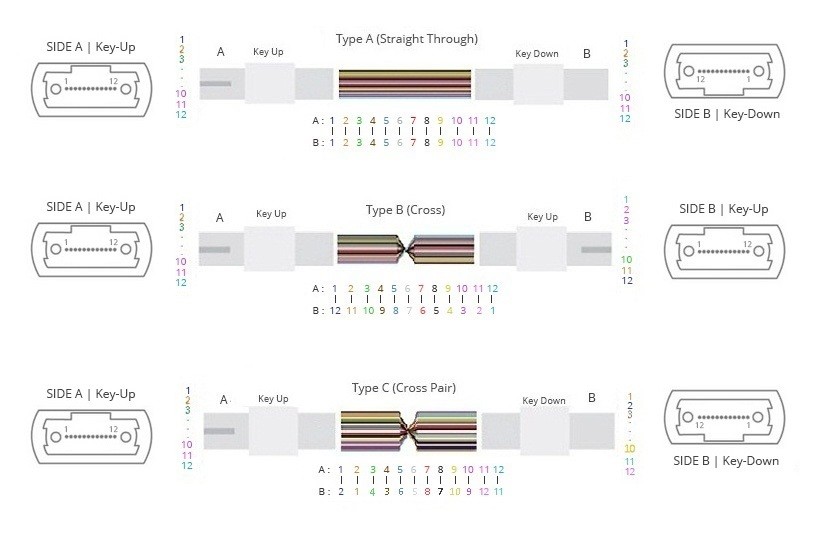

Pre-terminated MPO Technology-Polarity

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Please Note: When it is connected with two 40G QSFP+ transceivers, please choose the Type B Cross as polarity; when it is connected with other equipment such as MPO LGX Cassette, you can choose any of the polarities as you need.

This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

---

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable

         OMC industry co., limited, An ISO 9001:2015 certificated Manufacturer, which was founded by an expert team, has been manufacturing and  exporting FTTX cabling products since 2007. We focus on providing innovative and integrated FTTX cabling solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We help you select the right products for your Optical network’s needs.

         Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions

         OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.

         We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world.
