| Categories | Yingli Solar Panels |
|---|---|
| Brand Name: | Yingli/Jinko |
| Certification: | ISO9001/CE |
| Place of Origin: | China |
| MOQ: | 50 Pieces |
| Price: | Negotiation |
| Payment Terms: | T/T、L/C、West Union |
| Supply Ability: | 5000000 Watt/Watts per Month |
| Delivery Time: | Shipped in 7 days after payment |
| Packaging Details: | In well protected carton or wooden box with pallets. 26pcs per pallet, 380pcs fill into 20GP, 820pcs fill into 40HQ |
| Weight: | 26kg |
| Application: | Solar Home System,Industry |
| Wind Load: | 2400Pa / 244kg / m2 |
| Mechanical Load: | 5400Pa / 550kg / m2 |
| Junction box: | ≥ IP65 Waterproof |

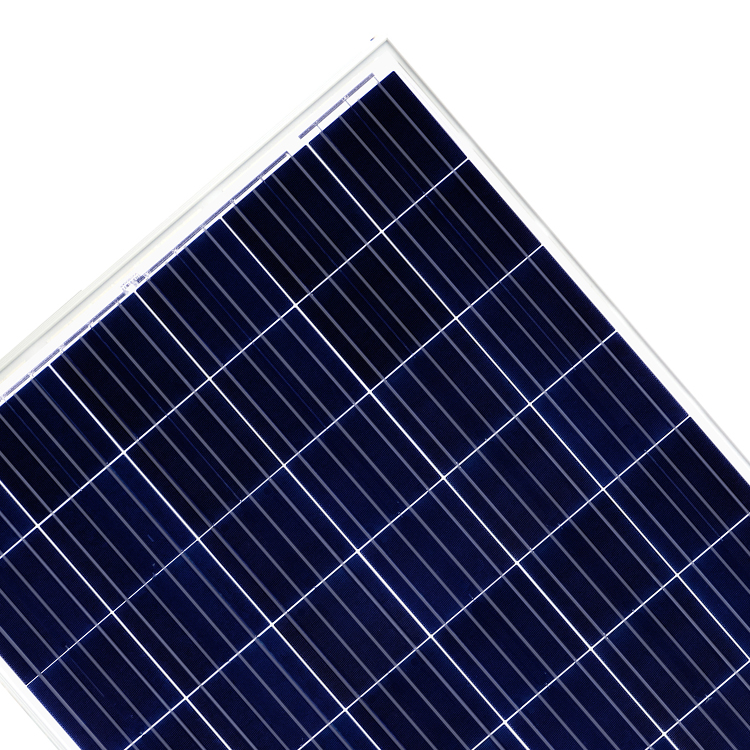

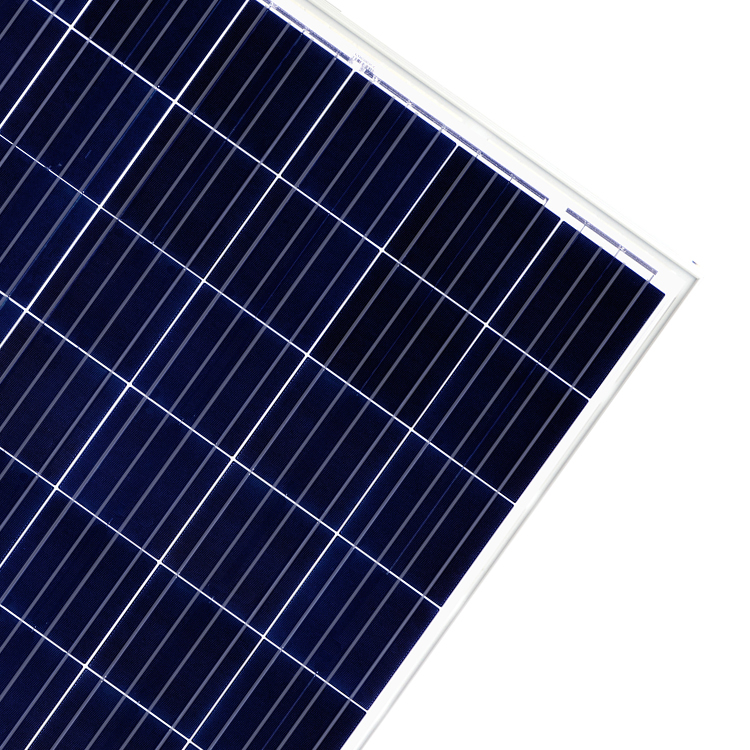

High Efficiency Stocked Commercial Solar Panels 300 Watt 360w Double Glass Bipv Solar Panel Price In Pakistan
ELECTRICAL PERFORMANCE
Electrical parameters at Standard Test Conditions (STC) | ||||||||
Module type | YLxxxPD-35b (xxx=Pmax) | |||||||
Power output | Pmax | W | 330 | 325 | 320 | 315 | 310 | 305 |
Power output tolerances | ΔPmax | W | 0 / + 5 | |||||
Module efficiency | ηm | % | 16.6 | 16.4 | 16.1 | 15.9 | 15.6 | 15.4 |
Voltage at Pmax | Vmpp | V | 37.4 | 37.3 | 37 | 36.8 | 36.3 | 36.1 |
Current at Pmax | Impp | A | 8.84 | 8.72 | 8.64 | 8.56 | 8.53 | 8.45 |
Open-circuit voltage | Voc | V | 46.4 | 46.3 | 46 | 45.7 | 45.6 | 45.4 |
Short-circuit current | Isc | A | 9.29 | 9.24 | 9.18 | 9.12 | 8.99 | 8.93 |
STC: 1000W/m2 irradiance, 25°C module temperature, AM1.5g spectrum
according to EN 60904-3.
Average relative efficiency reduction of 3.3% at 200W/m2 according
to EN 60904-1.
Electrical parameters at Nominal Operating Cell Temperature (NOCT) | ||||||||
Power output | Pmax | W | 240.7 | 237.1 | 233.4 | 229.8 | 226.1 | 222.5 |
Voltage at Pmax | Vmpp | V | 34.0 | 34.0 | 33.8 | 33.6 | 33.1 | 32.9 |
Current at Pmax | Impp | A | 7.1 | 7.0 | 6.9 | 6.9 | 6.8 | 6.8 |
Open-circuit voltage | Voc | V | 42.8 | 42.8 | 42.5 | 42.2 | 42.1 | 41.9 |
Short-circuit current | Isc | A | 7.5 | 7.5 | 7.4 | 7.4 | 7.3 | 7.2 |
NOCT: open-circuit module operation temperature at 800W/m2
irradiance, 20°C ambient temperature, 1m/s wind speed.
FAQ
what is yingli Solar? what does the company do?
Yingli Green Energy Holding Company Limited (NYSE: YGE), which
holds the brand Yingli Solar, is a leading solar energy company. We
develop, manufacture and sell photovoltaic modules. Our
manufacturing covers the entire PV value chain,
from ingot casting through wafering and solar cell production, to
module assembly. By 2015, our solar module production capacity has
grown to 4 GW. Yingli Green Energy has distributed more than 18 GW
PV modules to customers worldwide.
where are yingli Solar's customers?
We develop, manufacture, and sell photovoltaic
modules to a wide range of markets, including
Germany, Spain, Italy, Greece, France, South Korea,
Japan, China, and the United States.
How does yingli Solar assure product quality?
Our products have passed stringent international
certification testing standards such as TÜV Rheinland
and UL, etc. Our quality management system is
accredited to ISO 9001 standards.
|
