| Categories | Fixed Mount Scanner |
|---|---|
| Brand Name: | Dingyu/ DY SCAN |
| Model Number: | DF3200 |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiate |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Delivery Time: | 3-7 days |
| Packaging Details: | 188mm L * 95mm W * 40mm H |
| Decoding speed: | 300times/s |
| Dimension: | (L)66mm * (W))46mm * (H)22mm |
| Resolution: | ≥3mil/0.076mm(PCS90%,Code 39) |
| Ambient Light: | Dark environment, indoor natural light |
| Scan Mode: | Manual ,Continuous, Auto sense, flashing |
| Humidity: | 5% to 95%(non-condensing) |
| Communication Mode: | USB(USB-KBW、USB-COM）、RS232 |
| Scan Type: | Linear CCD |
| Light Source: | Visible red light，625±10nm |
| Optical Resolution: | 2500 |
| Company Info. |
| Shenzhen DYscan Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

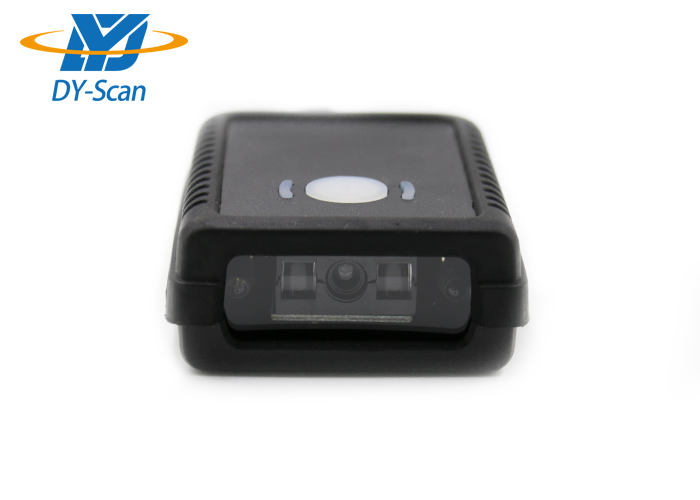

DF3200 is a long-range CCD bar code scanner with high sensitive liner image sensor.
As remote-operation ability 0--10,000 LUX ambient light resistance.
300 scan-rate per second and aiding in various major barcodes, hand-on software-programming function.
DF3200 is your best choice of CCD type bar code scanner to be suitable for application where needs a high performance and reliable operation.
Features
1. high sensitive image sensor(can read on electronic screen)
2. good penetrability barcode scanner which can read 1d barcodes even the bar codes covered by glass
3. 300 scans/sec high speed
4. programmable, light weight and easy to use
5. suitable for OEM devices like payment kiosk, car parking system, etc.
6 Mini Housing Design
Parameter
| Physical Parameter | |
| Weight | ≈80g(USB) |
| Dimension | (L)49.2mm * (W)37.5mm * (H)20.0mm |
| Interface Type | USB ,DB9 |
| Communication Mode | USB(USB-KBW,USB-COM),RS232 |
| Power Supply | DC 5V@80mA(work) |
| Performance | |
| Scan Type | Linear CCD |
| Light Source | Visible red light,625±10nm |
| CPU | 32-bit |
| Resolution | 2500 |
| Resolution | ≥3mil/0.076mm(PCS90%,Code 39) |
| Decoding speed | 300times/s |
| Depth of field | 30mm-700mm |
| Scan Mode | Manual ,Continuous, Auto sense, flashing |
| Scan Angle | Roll±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm) |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
| Environmental | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5 meters |
| Transport vibration Test | 10H@125RPM |
| Depth of field | |
| 3MIL | 80-120mm (PCS90%,Code 39) |
| 13MIL | 30-320mm (PCS90%,EAN-13) |
| 20MIL | 30-450mm (PCS90%,Code 39) |
| 40MIL | 130-700mm (PCS90%,Code 39) |
| Accessories List | |
| Cable(non-removable) | USB Cable, used to connect the DF3100 to a host device. RS232 Cable, used to connect the DF3100 to a host device, with USB power feeder. |
| Power Adaptor | Output: DC5V 1A,Input: AC100~240V 50~60Hz(serial port optional). |
Package Size :188mm L * 95mm W * 40mm H
Size:(L)49.2mm * (W)37.5mm * (H)20.0mm
Weight:≈80g(without cable)
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
|
