Curtain Wall Double Glazing Equipment , Glass Production Line Touch Screen Operating

Categories Insulating Glass Production Line
Brand Name: LIJIANG
Model Number: LJBZ2535
Certification: CE
Place of Origin: JINAN
MOQ: 1 SET
Price: Negotiable
Supply Ability: 1set 30days
Delivery Time: 30days
Packaging Details: 40gp
Max glass size: 2500*4500mm
Min glass size: 300*500mm
Glass thickness: 3-15mm
Insulating glass thickness: 50mm
Glass washing speed: 2-10m/min
Glass conveyor speed: 48m/min
Washing brushes: 3 pairs
Oversea service: available
Guarantee period: 12 MONTHS
Stepped glass: available
Triple glass: available
Shaped Glass: availabe
Low-e glass: available
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Curtain Wall Double Glazing Equipment , Glass Production Line Touch Screen Operating

Curtain Wall Double Glazing Equipment , Glass Production Line Touch Screen

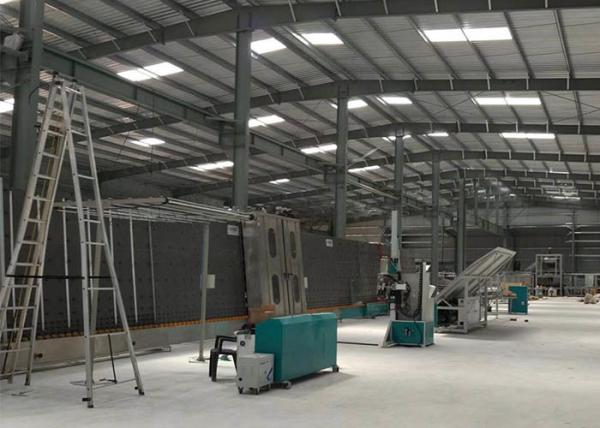

LJBZ 2535 Automatic vertical Insulated glazed glass production line uses advanced technology to make high-quality and variety IG automatically, such as double glass, triple glass, shaped glass and stepped glass.


ModelMin size of glass(Optional)Max size of glassLow-EStepped glassTriple glassGas filling online
LJBZ1825300*5001800*2500AvailableAvailableAvailableAvailable
LJBZ2025300*5002000*2500AvailableAvailableAvailableAvailable
LJBZ2230300*5002200*3000AvailableAvailableAvailableAvailable

LJBZ2535

(Optional)

300*5002500*3500AvailableAvailableAvailableAvailable

Max.glass size2500*3500mm/2200*3000mm/2000*2500mm
Min.glass size280*450mm
Glass thickness3-15mm
Insulating glass thickness60mm
Glass washing speed2-10m/min
Glass conveyor speed48m/min
Washing brushes3 pairs
Water supplyWater consumption:0.5t/h conductivity:≤50μs/cm
Air supplyFlow: 0.8m/min
Air pressure≥0.8MPa
Total power3P 380V 50HZ 40KW/27KW/24KW
Dimension23500*3500*3700mm/18350*2600*3250mm/16400*2500*3100mm
Weight6500kg/6000kg/5200kg

Main features:


- Self-diagnosis system with touch screen on computer

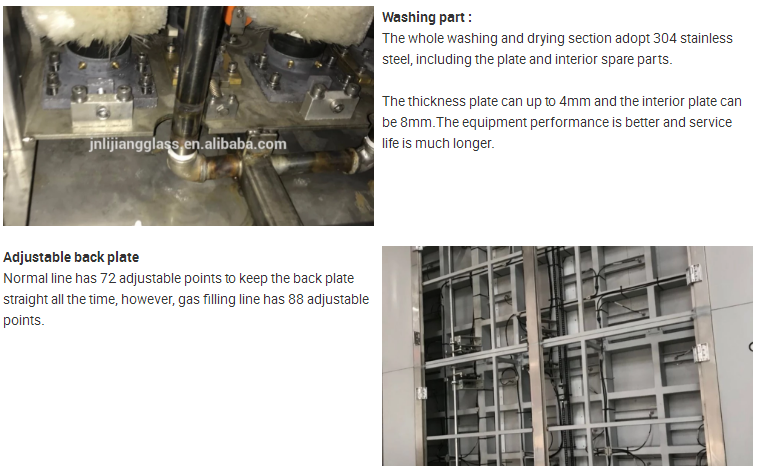

- Stainless steel washer with 6 brushes, soft brushes from, hard brushes automatically open when Low-E glass input


- Rotate speed of brush frequency control(optional)


- Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm


- High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working ( 25 second /unit)


- Automatic detection of Low-E glass and alarm for coating in reverse(optional)


- Structure stepped and three-layer I.G. unit available(optional)


Main conditions:

  • Product Name: IG Production Line
  • Keyword: Insulating glass production line
  • Place of orign:Jinan
  • Input Voltage: 380v
  • Max glass size: 2500*3500 mm (Optional)
  • Working Speed: 50m/min
  • Min glass size: 300*500mm
  • Condition: Double glazed glass production line
  • Machine Type: IG machines
  • Production Capacity: 50m/min
  • Place of Origin: Shandong
  • Brand Name: Jinan
  • Model Number: LJBZ
  • Voltage: 380V
  • Certification: CE
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
