| Categories | Multi Color Injection Molding Machine |
|---|---|
| Brand Name: | Hommar |
| Model Number: | HM-1202C-TB |
| Certification: | RoHS,CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |
| Delivery Time: | 35-45 working days |
| Packaging Details: | No-solid wooden box |
| Machine Name: | Tooth Brush Injection Molding Machine |
| Grip Material: | TPU,TPE PP |
| Colors: | 2 Colors |
| Capacity: | 2 pcs |
| Clamping force: | 120 Ton |
| Warranty: | toothbrush manufacturing machine |
| Company Info. |
| Hommar Industry Co,. Limited |
| View Contact Details |
| Product List |
2 Colors TPE Soft Tooth Brush Injection Molding Machine, 2 Materials Molded ,Kid Tooth Brush Machine
Vertical clamping, vertical injection. Compact design requires less
floor space. Make the take-out process easier.
Dual-cylinder extrusion system offers high extruding pressure for
fast operation making this extruder your best choice for production
of the thin work pieces.
Direct-pressure mold clamp allows even extrusion force, and the
relatively low pressure means maximum precision and an incredibly
smooth cycle of operation.
Choose a platen or a rotary plate in accordance with the type of
products to be extruded, in order to achieve the best possible in
input and output ratio.
This series machine offers a wide range of programmable functions
including automatic inclusion, extrusion and delivery systems and
other options for fully-automatic production.
Various screws are available to meet different processing needs.
Optimum screw L/D ratio attains excellent plasticizing effect.
Tooth Brush Injection Molding Machine can do
2 Colors Tooth Brush
2 Materials Tooth Brush
Soft Tooth Brush
TPE and PP Tooth Brush
Kid Soft Tooth Brush
Features:
| 1 | Make TWO COLORS Tooth Brush at the same time |
| 2 | Full Automatical,no need labor,can work 7 days,24 hrs |
| 3 | High efficiency,cycle time 24s, 2 cavities |
| 4 | Servo motor equiped, saving power by 60% |
| 5 | One stop purchase ,a whole set Solution |
| 6 | On Site Technical Support and Romate Technical Support |
Technical Parameters:
| Injection Unit | ||
| Screw Diameter | mm | 42 |
| Screw Stroke | mm | 160 |
| Shot Volume | cm3 | 221 |
| Injection Weight | g/oz | 206/7.3 |
| Plasticizing Capacity | g/s | 22 |
| Max. Injection Pressure | kgf/cm2 | 1428 |
| Injection Rate | cm3/s | 138-110 |
| Injection Speed | mm/s | 100-80 |
| Screw Speed | r.p.m. | 0-250,0-200 |
| Nozzle Force | tf | 2.4 |
| Nozzle Ejection Stroke | mm | 45 or more |
| Clamping Unit | ||
| Clamping Force | tf | 120 |
| Opening Force | tf | 26 |
| Clamping Stroke | mm | 250 |
| Min. Mold Height | mm | 210 |
| Max. Distance | mm | 460 |
| Distance between Columns | mm | 990*405 |
| Max. Mold Size | mm | 300*250 |
| Platens Size | mm | 1235*650 |
| Ejector Stroke | mm | 65 |
| Ejector Force | tf | 17.2 |
| Qty of ejector | pcs | 1*2 |
| System Pressure | kgf/cm2 | 140 |
| General | ||
| Oil Tank Cpacity | L | 340 |
| Motor Power | KW | 14+18.5 |
| Heater Power | KW | 4.2*2 |
| Temperature Stage | 4*2 | |
| Working Table Height | mm | 1200 |
| Dimensions | ||
| Machine Size | mm | 1920*2080*3600 |
| Weight | T | 7.1 |
| Packing Size | mm | 2100*2200*2000+1500*1100*1700 |
| Packing Weight | T | 7.8 |
Key parts List
| Item | Item Name | Brand | Original of Country |
| 1 | PLC | DIHZHOU | TAIWAN |
| 2 | Screw and barrel | HUAYE | CHINA |
| 3 | Electric motor | Universal | CHINA |
| 4 | Seal kit | HALLITE | United Kingdom |
| 5 | Solenoid valves | Yuken | Taiwan |
| 6 | Proporional valves | Yuken | Taiwan |
| 7 | Hydraulic motor | White | United States |
| 8 | Linear Scale | Gefran | Italy |
| 9 | Gear pump | Eckerle | Germany |
| 10 | Electrical Connectors | Schneider | France |
| 11 | Tie bar | Genaral | Taiwan |
| 12 | Heater bands | Schneider | France |
Accessory List
| 1 | Injection Machine | x | 1 |
| 2 | Robot | x | 2 |
| 3 | Mold | x | 2 |
| |||
| 1 | Water Chiller | x | 1 |
| 2 | Grinder | x | 1 |
| 3 | Blender | x | 1 |
| 4 | Dryer | x | 1 |
| 5 | Loading machine | x | 1 |
| 6 | Honeycomb Dehumidifiers | x | 1 |
| 7 | Mold Temperature Controller | x | 1 |
Price List
| QTY=1 set | 69000-79000 | USD/set | FOB Shenzhen |
| QTY=2-5 set | 2-3% off | USD/set | FOB Shenzhen |
| QTY=6-10 set | 5-7% off | USD/set | FOB Shenzhen |
| More | Negotiable | ||
After-sales service
QTY=1 PCS,online technical support
QTY=2-4 PCS,our techincians on site but tickets, hotel and food are borne by you and labor fee 100 USD/day/person
QTY=5-6 PCS,techincians on site ,labor free but hotel and food are borne by you.
View video on Youtube
More Details

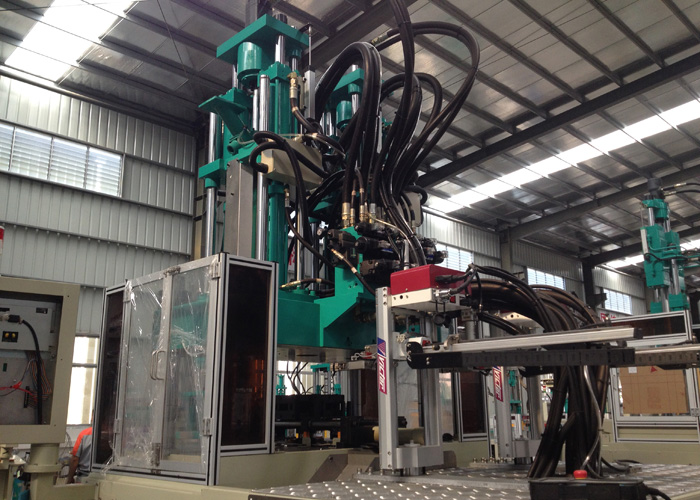

2 Robots Tooth Brush Injection Molding Machine

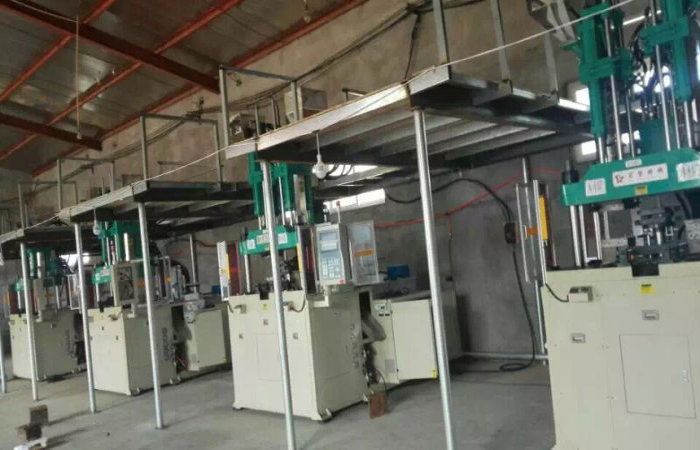

Customer's Workshop
4 sets of 2 colors Tooth Brush Injection Molding Machine
|
