Automatic Pipe Welding Machine Tube Fit Pipe Engineering , Butt Welding Machine

Automatic Orbital Tube Welding Machine For Pipe Engineering

Tube Butt Welding Machine

1. Introduction

Automatic orbital tube welding machine is orbital weld heads for fusion (GTAW) welding of fittings, tubing and thin wall pipe. Ideal solution for welds in the food & dairy, pharmaceuticals, biotechnology, chemical, semiconductor industry and in all applications where space is very limited.

Besides particularly suitable for welding all common micro fittings. Welds materials such as stainless steel, titanium, hastelloy and other auto weldable alloys. During weld process, it is without wire feeding but with argon protection and tungsten insert (TIG) welding.

2. Tube information

- Suitable tube diameter: Φ19.05mm-Φ76.2mm

- Tube thickness: 0.8-2.5mm

- Material: carbon steel, SS steel, titanium, titanium alloy

- Welding part of Tube center min rotating radius 72.5mm, min straight part length can be clamped is 25mm

3. System configuration

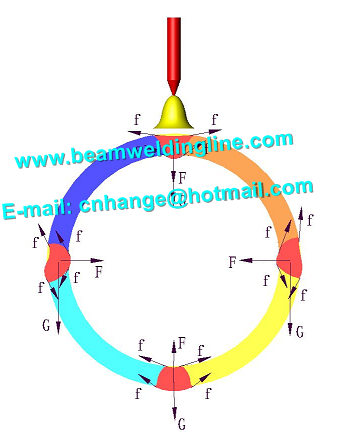

Welding pool is effected by different forces as picture, gravity, surface tension, arc spraying force, only gravity direction the same in different position, other two force directions always change, so welding parameter has to be set in several areas to meet welding requirements.

        Friendship Machinery is a world leader in automatic welding machine for steel fabrication field and industrial pipeline construction projects, providing an extensive range of equipment for a variety of project applications.

        Year after year, automatic welding systems from Friendship Machinery are designed, tested, used, and continuously upgraded in every type of environment. Our customers enjoy industry-leading repair rates that are constantly improving: from less than 5% in 2001 to less than 2% in 2012.

        The performance record of our specially designed and manufactured automatic welding machine is the backbone of Friendship Machinery's reputation. The proven ability of every set machine is why customers have returned to us repeatedly for new applications, designs and machinery as their products change and expand. We are proud of that fact.

        Our main products: H&I beam welding line, T beam welding line, box column beam line, CNC multi-head plate cutting line, beam assembly machine, straightening equipment, steel pipe welding line, shot blasting machine, CNC flame/plasma cutting equipment, welding assisting machinery incl. Welding manipulator, welding positioner, turning roll (welding rotator), Membrane wall panel production line, which are widely used in many industries like aerospace, petrochemical, metallurgy, shipbuilding, chemical equipment, boiler pressure vessels, steel structure construction, etc.

        Since 1990s, the market for steel structure building industry boomed. With fast development, very short period for construction and beautiful external appearance, as well reasonable price was occupied in the market of building industry. We invest more on developing roll forming machine such as Metal roof &wall panels machines, C&Z purlin machines drywall Stud-track forming machines , Metal decks machines , No- girder and Column curves forming machines, Guard rails forming machines , Downspout pipes forming machines and so on.
