Brand Name: | Elite Tree |
Model Number: | ET12864G16 |
Certification: | ISO9001:2015 / ISO14001 |
Place of Origin: | China |
MOQ: | 100pcs |
Price: | Negotiable |
Payment Terms: | T/T |
Supply Ability: | 100Kpcs~ per month |
Delivery Time: | 5days for sample and 20-25 days for mass production |
Packaging Details: | In anti-statics bag packed in carton or according to the customer's requirement |
Display Type: | COG STN LCD Display Module Screen |
Driving Method: | 1/65Duty, 1/9 Bias |
Driver IC: | ST7565 |
Interface: | Parallel |
Backlight: | LED White (Optional) |
Company Info. |
Elite Tree Technology |
Verified Supplier |
View Contact Details |
Product List |
LCD Module COG 128*64 Resolution LCD Display Modules STN Negative with Blue LED
LCD Display Module
Product Information
Display Type | COG STN Display |
Outline dimension | 89.90mm * 49.90mm * 6.00mm |
Viewing Area | 70.10mm * 36.60 mm |
Interface | Parallel |
Power supply(typ) | 5.0V |
Driver IC | ST7565 |
Backlight | White (Optional) |
Viewing Angle | 6 O'clock |
Operating temp | -20ºc~70ºc |
Storage temperature | -30ºc~80ºc |
If accept customized | Yes |
RoHS compliance | Yes |
Our advantages
1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours
Application
Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers,
Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

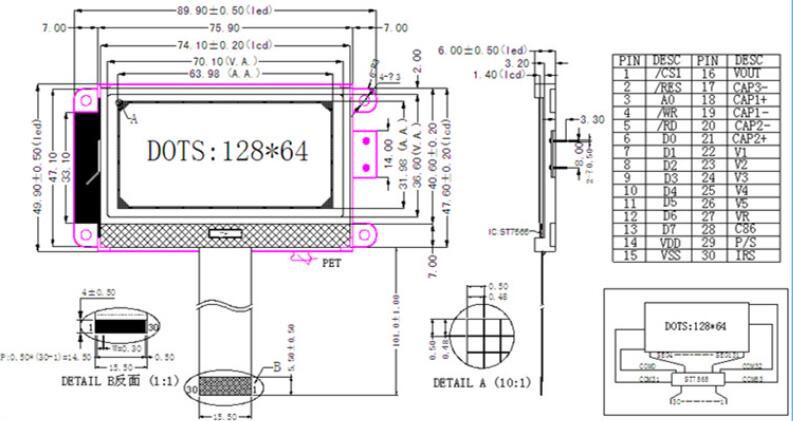

Product Drawing
![]() |
