Categories | COG LCD Module |
---|---|
Brand Name: | Elite Tree |
Model Number: | ET12832-1G |
Certification: | ISO9001:2015 / ISO14001 |
Place of Origin: | China |
MOQ: | 100pcs |
Price: | Negotiable |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100Kpcs~ per month |
Delivery Time: | 5days for sample and 20-25 days for mass production |
Packaging Details: | In anti-statics bag packed in carton or according to the customer's requirement |
Display Type: | 128X32 COG FSTN with FPC Connector |
Viewing Direction: | 12 o'clock |
Drive Method: | 1/33 Duty 1/6 Bias |
Operting Voltage: | 3.3 V |
Backlight: | White LED 2 Chips |
Driver IC: | UC1705 |
Company Info. |
Elite Tree Technology |
Verified Supplier |
View Contact Details |
Product List |
FSTN COG 128*32 Resolution Transflective Type COG LCD Module With FPC Connector
COG LCD Module
Product Information
Display Type | COG LCD Module FSTN Pisitive Matrix |
Display format | 128*32 Dots |
Outline dimension | 52 * 27.5 * 31 mm |
Active area | 46.00 * 16.00 mm |
IC package | COG |
IC or equivalent | UC1705 |
Interface | 1/33 Duty 1/6 Bias |
Interface | Parallel |
Viewing direction | 12:00 |
LED backlight color | White LED with 2 LED chips |
Power supply(typ) | 3.3 V |
Operating temp | -20ºc~70ºc |
Storage temperature | -30ºc~80ºc |
If accept customized | Yes |
RoHS compliance | Yes |
Our advantages
1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours
Application

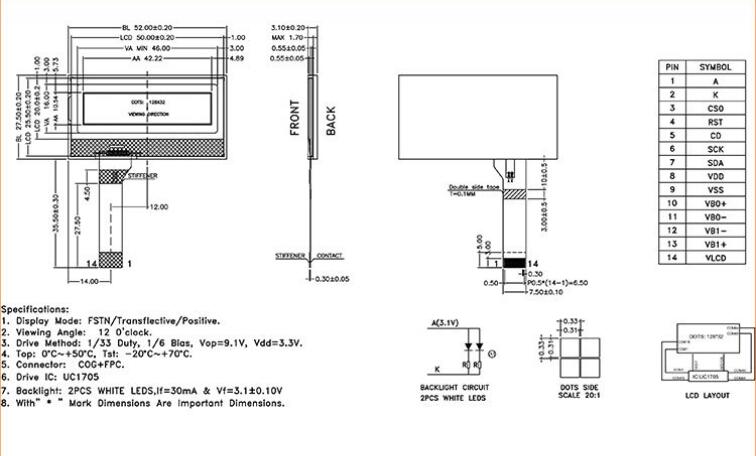

Product Drawing
Shipment And Payment
![]() |
