| Categories | Small LCD Panel |
|---|---|
| Brand Name: | LG |
| Model Number: | LB064V02-TD01 |
| Place of Origin: | CHINA |
| MOQ: | 10PCS |
| Price: | Negotiable |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 10PCS/DAY |
| Delivery Time: | 1-3workingdays |
| Packaging Details: | 45 pcs / box ; |
| SIZE: | 7INCH |
| Resolution: | 640*480 |
| Brightness: | 250cd/m² |
| Backlight: | WLED |
| View angle: | 65/65/50/60 |
| Model name: | LB064V02-TD01 |

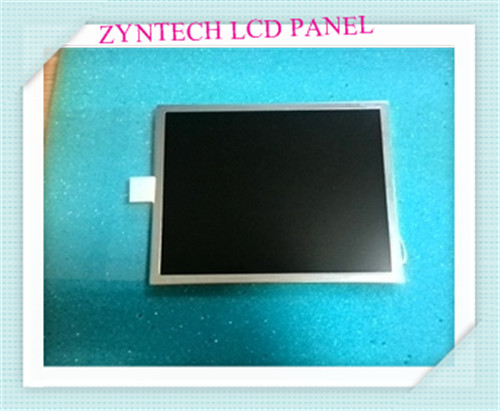

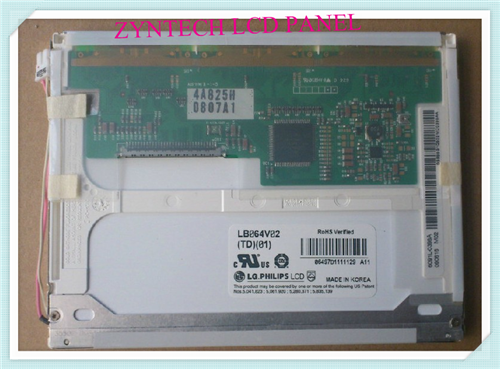

6.4INCH 640*480 250cd/m² LB064V02-TD01 Small LCD Panel
It is New A grade panel, Wide view angle (65/65/50/60 ) ,Hight brightness 250cd/m², 6.4inch size ,resoultion is 640*480 ,a-si TFT LCD. It is used for automotive navigation system ,medical machine , POS machine etc industial application .
| Manufacturer | AUO | Model Namel | LB064V02-TD01 |
| Screen Size | 6.4INCH | Screen Type | LCM , a-Si TFT-LCD |
| Pixel Format | 640(RGB)×480 [WVGA] | Response Time | 10/15 (Typ.)(Tr/Td) |
| Active Area(mm) | 130.56 × 97.92 mm (H×V) | Arrangement | RGB Vertical Stripe |
| Bezel Area(mm) | 133.8 × 101.1 (H×V) | Outline(mm) | 145.5 × 111.5 (H×V×D) |
| Luminance | 250 cd/m² (Typ.) | Treatment | Antiglare, Hard coating (3H) |
| Viewing Angle | 65/65/50/60 (CR≥10 | Contrast Ratio | 400:1 (Typ.) (TM) |
| Good View at | 6 o'clock | Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% (CIE1931) | Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins , Connector |
| Frame Rate | 60Hz | Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Operating Temp.: -0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C | Backlight | 1 pcs CCFL , 20K hours , No Driver |
| Used for | Industrial application | Touch screen | without |
1. Have our own stock ,kinds of panels . Fast reply RFQ immediately .
2. Ship parts from shenzhen or HK .
3. Safe transportation: Fast and safe transportation that ensures safety of your merchandise.
4. Technology advancement: Professional field applicatoin engineers (FAE) act as your exclusive technical consultant.
5. FQA :
PAYMENT : T/T ,Western union
Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.
Delivery time : 1-3 working days upon payment.
Products can replace free within 10 days after customers Delivered-Signed if it cannot use due to the quality problems, in the precondition of non-artificial damage. We pay for the freight only for the replacement delivery.
The warranty time is 3-12 months. Within Warranty period, products under serviceable,we will offer the repair service for free,customers afford the cost of the parts. Customers afford the freight.
Even if within the warranty period, if the following occurs, the repair service is not available.
1. The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.
2. The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.
3. The product malfunction caused by the fall and transportation failures after purchase.
4. The malfunction and damaged caused by the other barriers (man-made factors or external device).
Any problems in the after-sales service, please contact our agents or us directly.
|
