DMD Material Paper Inserting Machine 96 Slots New Energy Drive Motor Stator

96 Slots New Energy Drive Motor Stator Paper Inserting Machine WIND-SZ-1A

(1) Application

New Energy Motor Inserter is a special device for the S/B insert of the drive motor. The device consists of

the body part, the paper feed part, the paper forming heating part, the paper feed part, the paper cutting

and the servo indexing part, and the servo motor accurate indexing ensures accurate and consistent

inserts, high speed and automation, and can be equipped with automated assembly line operations.

It can insert paper for different number of slots and different diameters of drive motor stator.

Raw material is a roll of insulation paper with the appropriate width.

The paper inserting machine carry the paper, guiding,heating, forming, feeding and cutting-off

mechanisms

(2) Competitive Advantages

Efficiency 1.5 second per slot (for a 60mm stack height stack)

Save labor cost can insert slots from two side such as 96slots both side work like a double station

(3) Parameter

Supply voltage: 380V/50HZ

Feed length: servo setting (0-100mm)

Production efficiency: about 1.5 seconds / slot (core 60mm)

Equipment weight: about 600kg

Equipment size: 900×700×1950mm

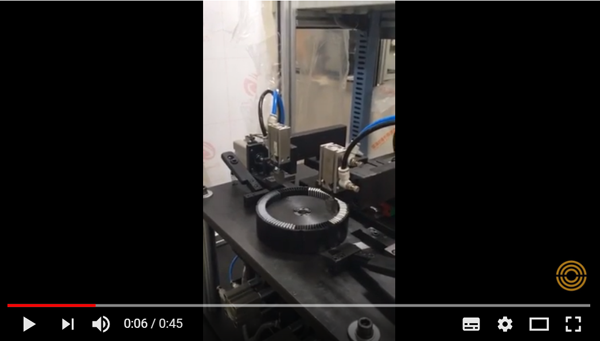

Please click below photo to view video
