Name: Induction Motor Stator Coil Winding Machine Fully Automatic Ventilador Ocilante
Brand: WIND AUTOMATION
Price: 1 USD

Home > Textile Machinery >

Induction Motor Stator Coil Winding Machine Fully Automatic Ventilador Ocilante

Categories	Coil Winding Machine
Brand Name:	WIND AUTOMATION
Model Number:	WIND-100-VW
Certification:	CE
Place of Origin:	China
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T
Packaging Details:	Pallet
Delivery Time:	60 Working days
Motor Stator Coil Winding:	With Servo System not CNC type
Compare to common coil winder:	Save Copper wire
Wire Gauge:	Min. 0.1mm (AWG38)
Automation type:	Fully automatic Vertical Winding With Rotary Device
Machine Color:	White or Per Customer Requirement
After sales:	Engineers available to service machinery overseas

Contact Now

Add to Cart

Company Info.

Shanghai Wind Automation Equipment Co.,Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Fully Automatic Induction Motor Stator Coil Winding Ventilador Ocilante WIND-100-VW

Application:

Induction motor pump compressor stator automatic coil winding coil making machine with servo system

WIND-100-VW Automatic vertical winding machine for winding vending machines, wheelchairs, medical

beds, and treadmills motors

Advantages:

✓ Material Saving	Save cooper wire because don't need to connect separate coils
✓Stator narrow slot	Constant winding quality suitable for high filling rate stator winding insertion with slot width above 1.36mm
✓Labor cost Saving	Stator winding machine wind coil directly to windings transfer former, operator no need to put the coils in place, instead they just need to put on transfer former on the winding insertion machine
✓ Better winding quality	Comparing to common cnc winding making machine, WIND-100-VM not only save copper wire, but also ensure the winding quality during insertion to stator,there winding wires don't break during insertion operation process

Parameter:

Wire diameter:0.2~1.2mm

Min stator ID:40mm

Max stator OD:175mm

Core length:40-130mm

Power:380V, 50/60KW

Weight: about 1100kgs

Dimensions: 1900 (L)x850 (W)x3200(H)mm

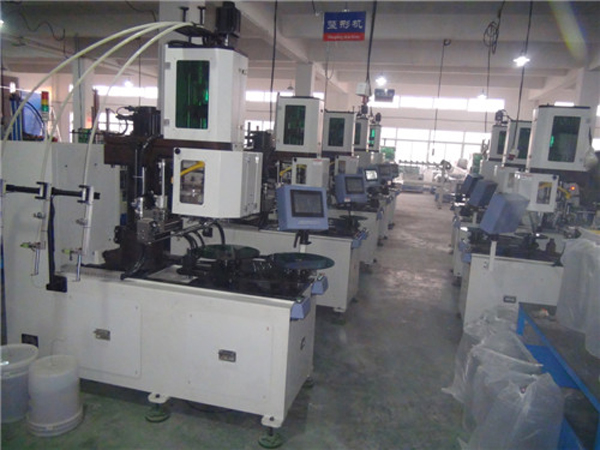

China Local well known respected motor manufacturers user's feedback

WIND-100-VW vertical winding machine wind the coil and put coil to transfer form

(the transfer form with wire can be embered in stator in next operation process wedge and coil insertion

machine)

It is feature is high efficiency,save copper wire and suitable for small slot opening stator with high filling

rate, also the wire don't break during insertion operation.

Please click below link to view video
