P10 Outdoor LED Display Module SMD Advertising board Long Life Span

Categories	Outdoor LED Display Module
Brand Name:	HJY
Model Number:	P10
Certification:	CE FCC
Place of Origin:	China
MOQ:	negotiable
Price:	negotoable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000sqm/month
Delivery Time:	15-20 days after receiving deposit
Packaging Details:	Flight case
Dot Pitch:	10mm
Pixel Configure:	1R1G1B
Pixel/SQM:	10000Pixel/m²
LED TYPE:	SMD3535
Module Resolution:	32Pixel * 16Pixel
Refresh Rate:	> 1920HZ

Contact Now

Add to Cart

Company Info.

Shenzhen Haojingyuan Optoelectronic Co.,Ltd

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

P10 Outdoor LED Display Module SMD Advertising board Long Life Span

1. We are a professional product and sale LED display

2. We provide low piece and high quality on Aliexpress

3. We provide techno support for free

4. Welcome to our factory for inspection in China

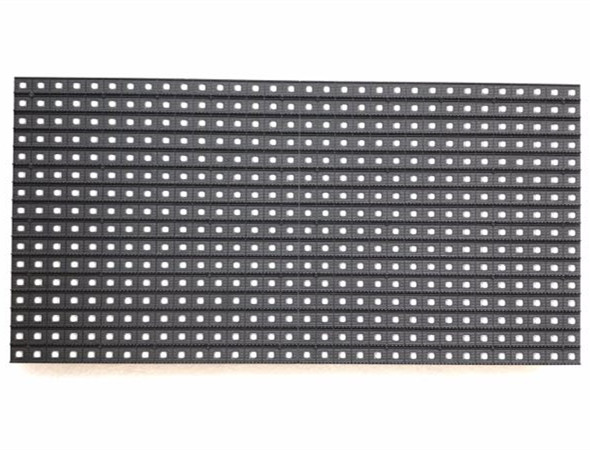

Outdoor P10 led module
Main	Pitch/mm	P8	P10	P16
	Module size/mm	256x128	160x160	256x256
	The density of pixel/(dots/m2)	15,625	10,000	3,906
	Pixel composition	1R1G1B	1R1G1B	1R1G1B
	Led encapsulation	SMD3535	SMD3535	DIP346
	Resolution of module	32x16	32X16	16X16
	Optimum viewing distance	≥8	≥10	≥15
	View angle / °	140H,120V	110 H,60 V	110 H,60 V
	Average power consumption/W/M2	500	450	350
	Max power consumption/W/M2	1000	950	700
	Size of cabinet/mm	1024X768	960X960	1024X1024
	Resolution of cabinet	128X96	96X96	64x64
	Driving method	1/4 scan constant current	1/4 scan constant current	Static constant current
	Refresh rate Hz/S	≥1200	≥1200	≥1200
	Luminance of white balance	≥6000 nits	≥5500 nits	≥7000 nits
	Operation of Environmental Temperature/℃	below 30 to above 50
	IP rating	Front,IP65;Rear,IP43
	Working voltage	110-220 VAC/+/- 10%
	Greyscale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	4096 levels of each color(manually),100 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	Linsn / Nova(sending card, receiving cards and Hubs)
	Average of non-failure life	>50,00h
	Life span	>100,000h
	Functionless dot rate	<0.0001

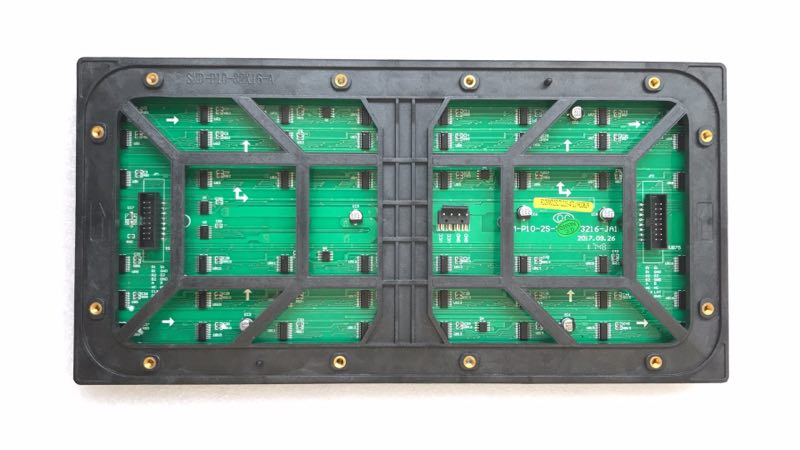

Wholesale outdoor full colour p10 320x160 led display module

Packaging & Shipping

Wholesale outdoor full colour p10 320x160 led display module
