| Categories | Desktop Barcode Scanner |
|---|---|
| Brand Name: | Dingyu/ DY SCAN |
| Model Number: | DP8500 |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiate |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Delivery Time: | 3-7 days |
| Packaging Details: | L75mm * W80mm * H140mm |
| Scan type: | CMOS |
| Weight: | 190G |
| Humidity: | 5% to 95%（non-condensing） |
| Scan mode: | Auto sense |
| Depth of field: | 0-350mm |
| Scan angle: | Roll360°, Pitch±45°, Skew±32° |
| Print contrast signal: | ≥25% |
| Scan speed: | 10cm/s |
| Size: | 92.33mm L *84.74mm W * 124.61mm H |
| Resolution: | ≥5mil/0.127mm(PCS90%,Code 39) |
| Company Info. |
| Shenzhen DYscan Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

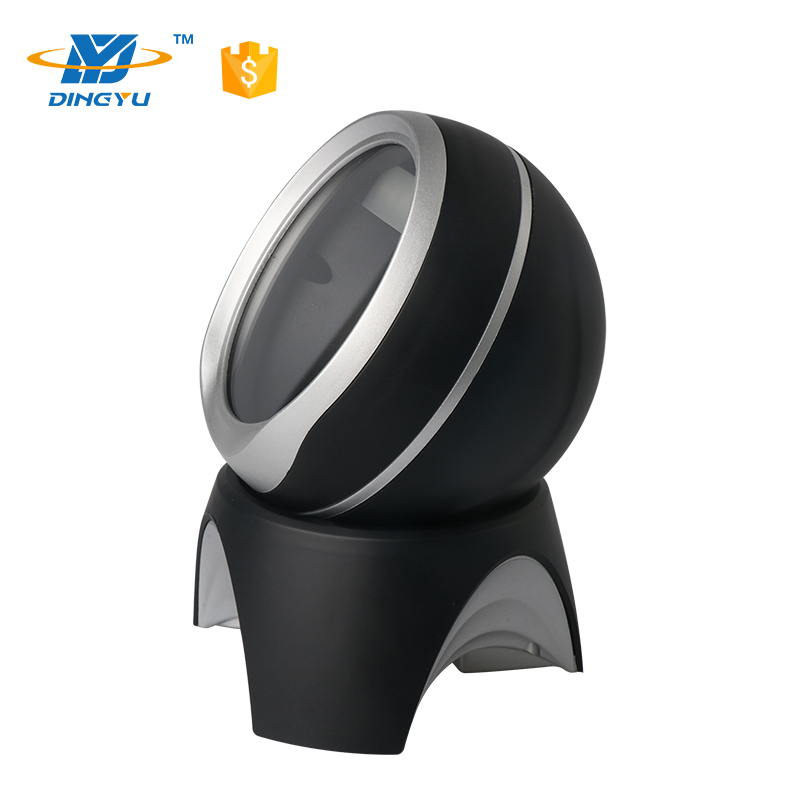

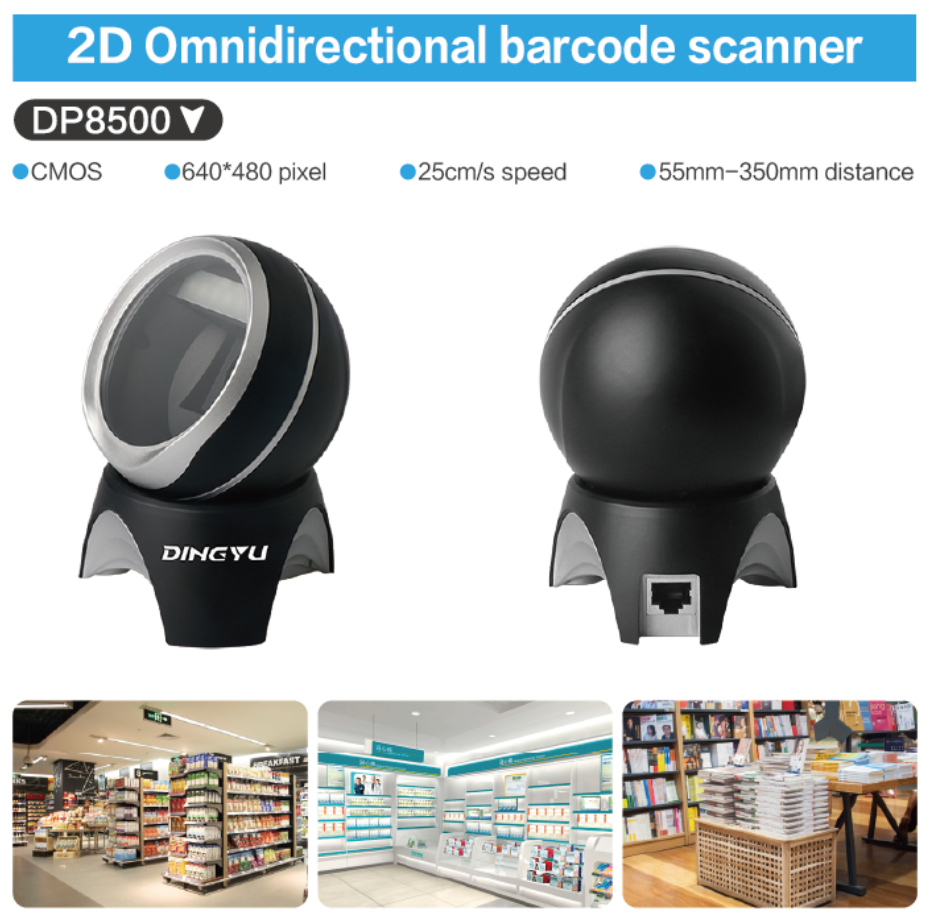

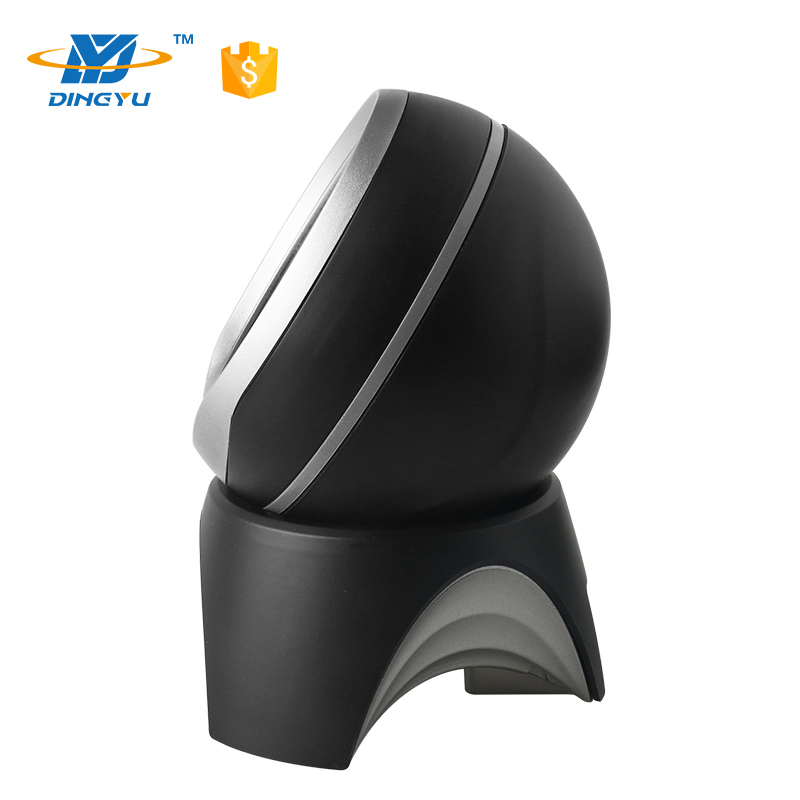

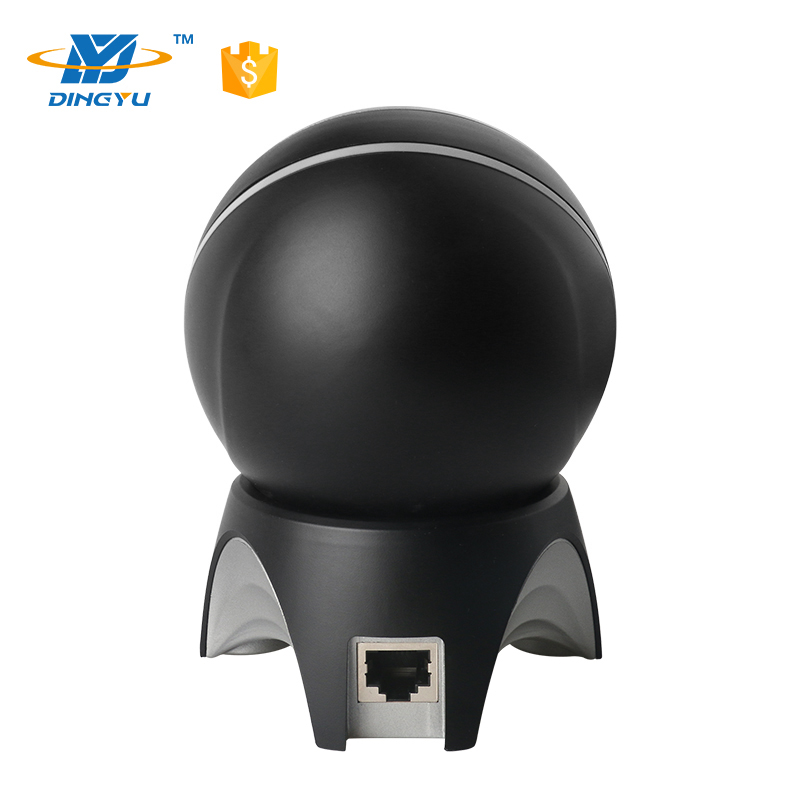

High Speed MINI Round design black and silk Omni Directional Supermarket 2D Barcode Scanner DP8500
Features
1. Fashionable and mini design,Highly sensitive large window.
2. 5mil, Auto sense scanning.
3. Support multiple systems and languages.
Parameter
| Physical Parameter | |
| Weight | 190g ( Without cable) |
| Dimension | 92.33mm L *84.74mm W * 124.61mm H |
| Interface type | USB, RS232 |
| Communication way | TTL-232 , USB (HID-KBW,USB-COM) |
| Power supply | DC 5V@470mA(work) |
| Performance | |
| Scan type | CMOS |
| Light source | Aiming: 617 nm LED ; illumination:6500K LED |
| CPU | 32-bit |
| Optical Resolution | 640*480 |
| Resolution | ≥5mil/0.127mm(PCS90%,Code 39) |
| Scan speed | 10cm/s |
| Depth of field | 0-350mm |
| Scan mode | Auto sense |
| Scan angle | Roll360°, Pitch±45°, Skew±32° |
| Print contrast signal | ≥25% |
| Ambient light | Dark, Indoor natural light |
| Symbologies | 1D: Code 39, Full ASCII Code 39, Code 128, Code 93,Code 11, Interleave 2 of 5, NEC 2of 5, Straight 2 of 5 Industrial,Straight2of5 ,IATA,GS1-128,Telepen,UPC-A,UPC-E0,EAN/JAN-13, EAN/JAN-8,MSI,GS1 DataBar,Trioptic code,Codablock A F,TLC39,etc. 2D: PDF417,QR CODE,MICRO QR,DATAMATRIX, AZTEC CODE,HanXin,Maxicode,Micro PDF417,etc. |
| Environmental | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.2m |
| Transport vibration Test | 10H@125RPM |
| Accessories List | |
| Data cable | USB cable, used to connect the DP8500 and the information receiving host. |
| RS232 cable, used to connect the DP8500 and the information receiving host, with USB supply cable. |
Our Services
1. Your inquiry related to our products or price will be replied in 24 hours.
2. Experienced staff to answer all your inquiries in English.
3. Protection of your sales area, ideas of design and all your private information.
4. Engineers can help you to solve any technical problems.
5. 1 year warranty.
|
