Cisco GLC-LX-SM-RGD Optical Module Transceiver 1000Mbps Single Mode Rugged SFP

Categories Optical Transceiver Module
Brand Name: Cisco
Model Number: GLC-LX-SM-RGD
Certification: CE
Place of Origin: China
MOQ: 1
Price: negonation
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 1000
Delivery Time: 2-3days
Packaging Details: common package
Material: SFP Optical Module Transceiver
Branch: Cisco
Model: GLC-LX-SM-RGD
Transmission rate: 10/100/1000Mbps
Optical Wave Length: 1310 nm
Interfaces: 1 x Ethernet 1000Base-LX - LC/PC x 2
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

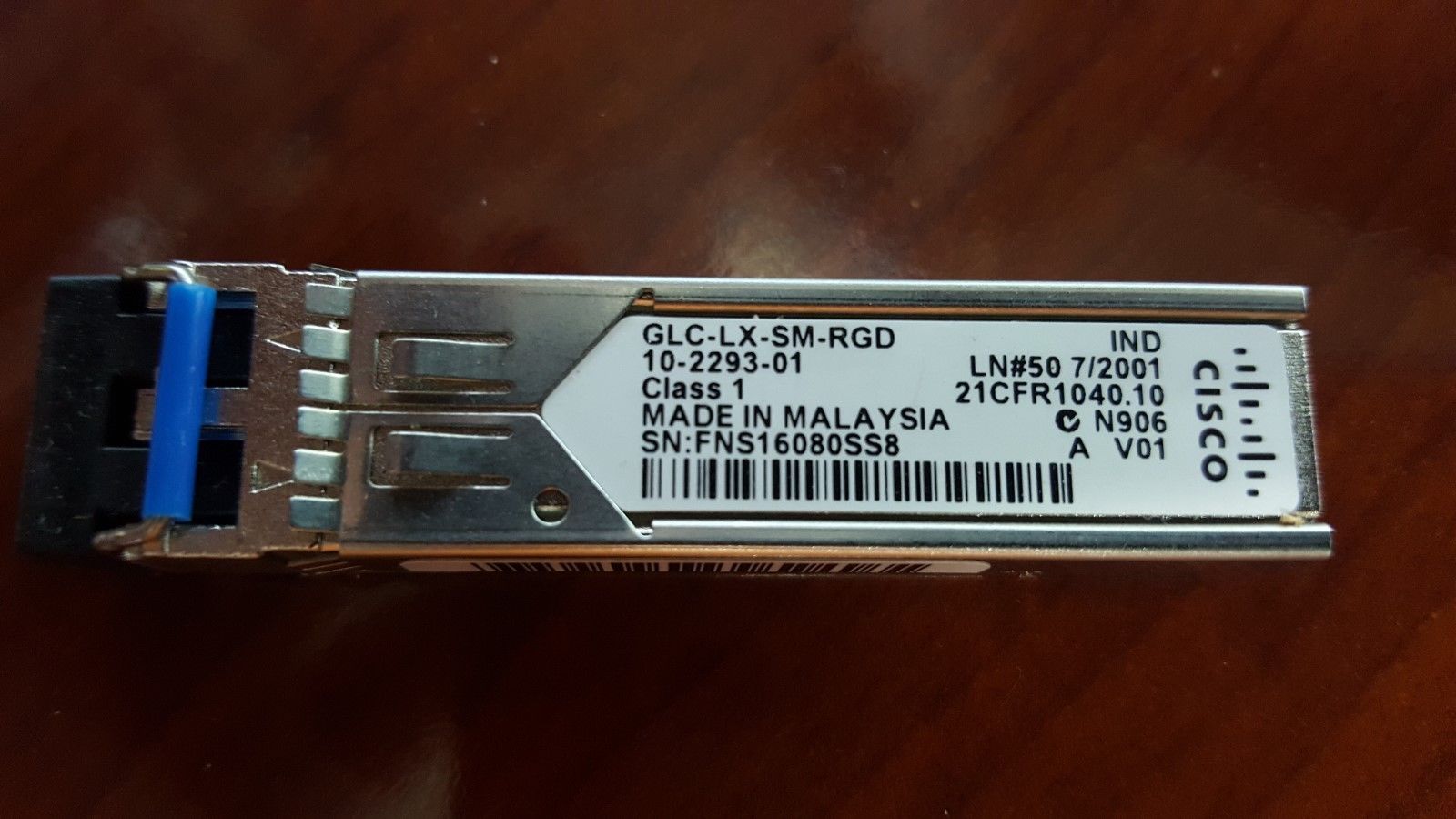

Cisco GLC-LX-SM-RGD Optical Module Transceiver 1000Mbps Single Mode Rugged SFP

Cisco GLC-LX-SM-RGD Optical Module Transceiver 1000Mbps Single Mode Rugged SFP


1 . Overview:


The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable.

Quick Specs

Table 1 shows the GLC-LX-SM-RGD (1000BASE-LX/LH) specifications.

ProductWavelength (nm)Fiber TypeCore Size (μm)Modal Bandwidth (MHz* Km)Operating Distance (m)
1000BASE-LX/LH1310MMF62.5500550 (1,804 ft)
50400550 (1,804 ft)
50500550 (1,804 ft)
SMF--10,000 (32,821 ft)

Compare to Similar Item

Table 2 shows the comparison between GLC-LX-SM-RGD and GLC-LH-SM.

ItemGLC-LX-SM-RGDGLC-LH-SM
Product Category1000BASE-LX/LH1000BASE-LX/LH
Fiber TypeSMFSMF
Wavelength (nm)13101310
Rugged SFPYesNo

2. Technical Specifications


General
Device TypeSFP (mini-GBIC) transceiver module
Form FactorPlug-in module
Networking
Connectivity TechnologyWired
Cabling Type1000Base-LX, 1000Base-LH
Data Link ProtocolGigE
Data Transfer Rate1 Gbps
Optical Wave Length1310 nm
Max Transfer Distance6.2 miles
Compliant StandardsIEEE 802.3z, IEEE 802.3ah
Expansion / Connectivity
Interfaces1 x Ethernet 1000Base-LX - LC/PC x 2
Compatible Slots1 x SFP (mini-GBIC)
Miscellaneous
Compliant StandardsLaser Class 1, IEC 60825-1
Dimensions & Weight
Width0.5 in
Depth2.2 in
Height0.4 in
Weight2.65 oz
Environmental Parameters
Min Operating Temperature-40 °F
Max Operating Temperature185 °F
Compatibility Information
Designed ForP/N: 4GE-SFP-LC, 4GE-SFP-LC=, 4GE-SFP-LC-5PACK=, 4GE-SFP-LC-RF, 4GE-SFP-LC-RF=

SFP Port Cabling Specifications

ProductWavelength (nm)Fiber TypeCore Size (μm)Modal Bandwidth (MHz* Km)***Operating Distance (m)
1000BASE-SX850MMF62.5160 (FDDI-grade)220 (722 ft)
62.5200 (OM1)275 (902 ft)
50400 (400/400)500 (1,640 ft)
50500 (OM2)550 (1,804 ft)
502000 (OM3)1000 (3281 ft)
1000BASE-LX/LH1310MMF*62.5500550 (1,804 ft)
50400550 (1,804 ft)
50500550 (1,804 ft)
SMF-**-10,000 (32,821 ft)
1000BASE-EX1310SMF-**-40,000 (131,234 ft)

1000BASE-ZX

(GLC-ZX-SMD)

1550SMF--Approximately 70 km depending on link loss
1000BASE-BX-U1310SMF-**-10,000 (32,821 ft)
1000BASE-BX-D1490SMF-**-10,000 (32,821 ft)

Ordering infomation:


PNDESCRIBTION
WS-G54841000BASE-SX Short Wavelength GBIC (Multimode only)
WS-G54841000BASE-SX Short Wavelength GBIC (Multimode only)
WS-G54861000BASE-LX/LH long haul GBIC (singlemode or multimode)
WS-G54871000Base-ZX extended reach GBIC(singlemode)
X2-10GB-LR10GBASE-LR X2 Module
X2-10GB-SR10GBASE-SR X2 Module


3.Company



Represented Brands
• LONRISE is certified dealer of Cisco,Huawei Alcatel in China, we are engaged in supplying whole series of networking products, such as SwitchesRouters, Access Point(AP), Firewall, Modules and other GOPN,EOPN.
