KOE Original 9.4 Inch 640*480 CSTN LCD Panel LMG9200XUCC-A Digital Panel
Advantages:
1) | wide operating temperature -30~85℃ |
2) | ISO9001 compliant |
3) | Original Brand New, A grade |
4) | 100% Original guarantee |
5) | 12 months of warranty |
6) | industrial LCD ,at least 3-5 years stable delivery |
Industrial application:
1) Standard Usage
Computers, office equipment, factory automation equipment, test and measurement, test and measurement equipment, communications,
Transportation equipment (automobiles, ships, trains )
2) Special Usage
Medical equipment, safety equipment, transportation equipment
3) Specific Usage
Cockpit equipment, military systems, aerospace equipment, nuclear reactor control systems, life support systems
Specifications:
Module number | LMG9200XUCC-A |
Resolution | 640 (RGB) x 480 (VGA) |
Pixel Pitch | 0.30 x 0.30 (mm) |
Active Area | 191.975(H) x 143.975(V) (mm) |
Panel Type | CSTN-LCD,LCM |
Mode | STN, Normally Black |
Panel Size | 9.4 Inch |
Number of Colors | 16.7M |
Lamp Type | 1 pcs CCFL |
Application | Industial Application |
Pixel Density | 84 PPI |
Pixel Configuration | RGB Vertical Stripe |
Aspect Ratio | 4:3 ( H:V) |
Form Factor | Flat Rectangle Display |
LED Life (hrs.) | 50K(Min.) |
Power Consumption (W) | 22(Typ.) |
Supply Voltage (V) | 5.0V |
Response time | 5 (ms) |
Operate temperature | -30-85 (°C) |
Storage temperature | -30-85 (°C) |
Dot Pitch | 0.10*0.30 mm ( H*V) |
Pixel Pitch | 0.30*0.30 mm ( H*V) |

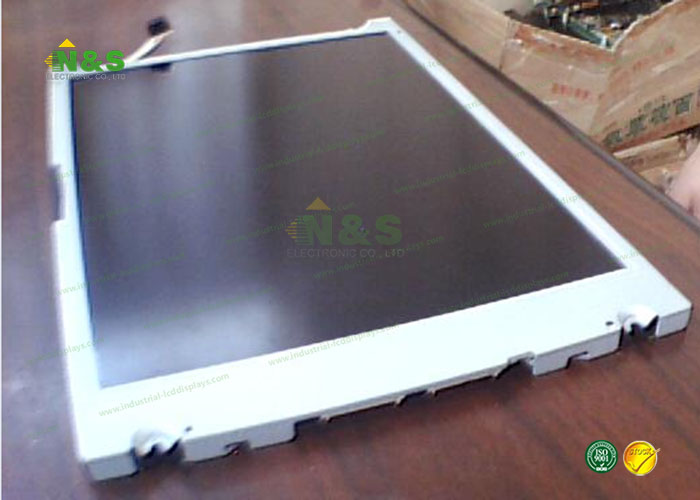

Detail Picture for KOE LMG9200XUCC-A Digital Panel:
