Full Color 3.5 Inch TFT LCD Module PW035XU1 Dot Matrix Anti - Glare Surface

Categories TFT LCD Module
Brand Name: PVI
Model Number: PW035XU1
Certification: ISO9001
Place of Origin: China
MOQ: 1
Payment Terms: T/T, Paypal, Western Union, MoneyGram
Supply Ability: 500PCS/DAY
Delivery Time: 2-3 working days after payment confirmation
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size: 10.4 inch
Aspect Ratio: 4:3 (H:V)
Dot Pitch: 0.088×0.264 mm (H×V)
Pixel Pitch: 0.264×0.264 mm (H×V)
Outline Depth: 6.0 (Typ.) mm
Holes & Brackets: Face mounting holes
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Full Color 3.5 Inch TFT LCD Module PW035XU1 Dot Matrix Anti - Glare Surface

Full Color 3.5 Inch TFT LCD Module PW035XU1 Dot Matrix Anti - Glare Surface

PVI PW035XU1 General Features:

<

Panel Brand :PVI
Panel Model :PW035XU1
Panel Type :a-Si TFT-LCD , Panel
Panel Size :3.5 inch
Resolution :320(RGB)×234
Display Mode :TN, Normally White, Transmissive
Active Area :76.32×42.82 mm
Outline :88×53.5 mm
Surface :Antiglare
Brightness :350 cd/m² (Typ.)
Contrast Ratio :400:1 (Typ.)
Display Colors :Full color
Response Time :15/25 (Typ.)(Tr/Td)
Viewing Angle :60/60/40/50 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :3S2P WLED Without Driver
Signal Interface :TFT Specific Analog RGB , 30 pins
Input Voltage :3.3/5.0/17.0/-12.0V (Typ.)(VDD1/VDD2/VGH/VGL)

PVI PW035XU1 Electronics Feature and Backlight System :

<

Vertical Frequency :60Hz
Reverse Scan :Yes (U/D, L/R)
Total Power Consumption :482mW (Max.)
Time Controller (T-CON) :Need external T-CON
Lamp Position :Edge light type
Lamp Type :WLED
Lamp Amount :3S2P
Lamp Shape :2 strings
Lamp Life Time :30K(Typ.) (Hours)
Lamp Voltage :10.8V (Typ.)
Lamp Current :20mA (Typ.)
Lamps Power Consumption :432W (Max.)
Interface Type :Included in panel signal interface
Lamp Driver Board :No

Excellent service:


We mainly sell Industrial LCD panels and touch screens , providing information and technical consultation for all kinds of LCD screens and touch screens, Wehave many parts in stock ,such as the brand for GT/GUNZE,FUJITSU,HITECH,SIEMENS,HAKKO,WEINVIW,ELO parts. And 4.7-15 inches is between the various size of industrial screen, They are applicable to vehicles, medical equipments, injection molding machines ,industrial equipments etc.


new and original; we offer high quality, fast delivery, competitive price for our customers;


> Please send your RFQ(request for quoting) to get latest price;
> We will ship the items within 2 working days after receive the payment;
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways;
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices .


PVI PW035XU1 Packing Form :


Amount per Box : 132 pcs
Box Size : 455×375×190 mm (L×W×H)
Box Gross Weight : 8.0 Kgs

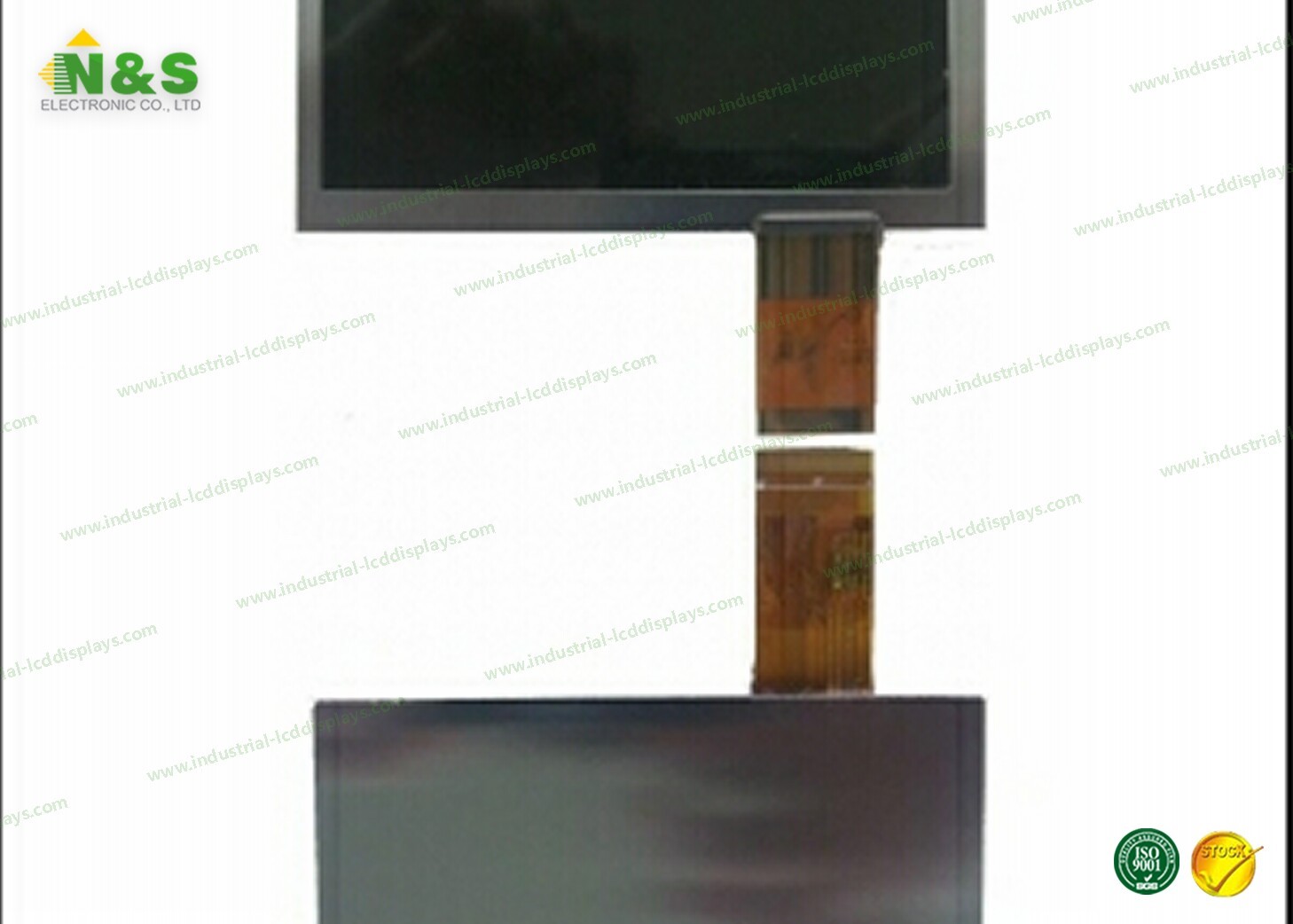

Pictures of PVI PW035XU1 :

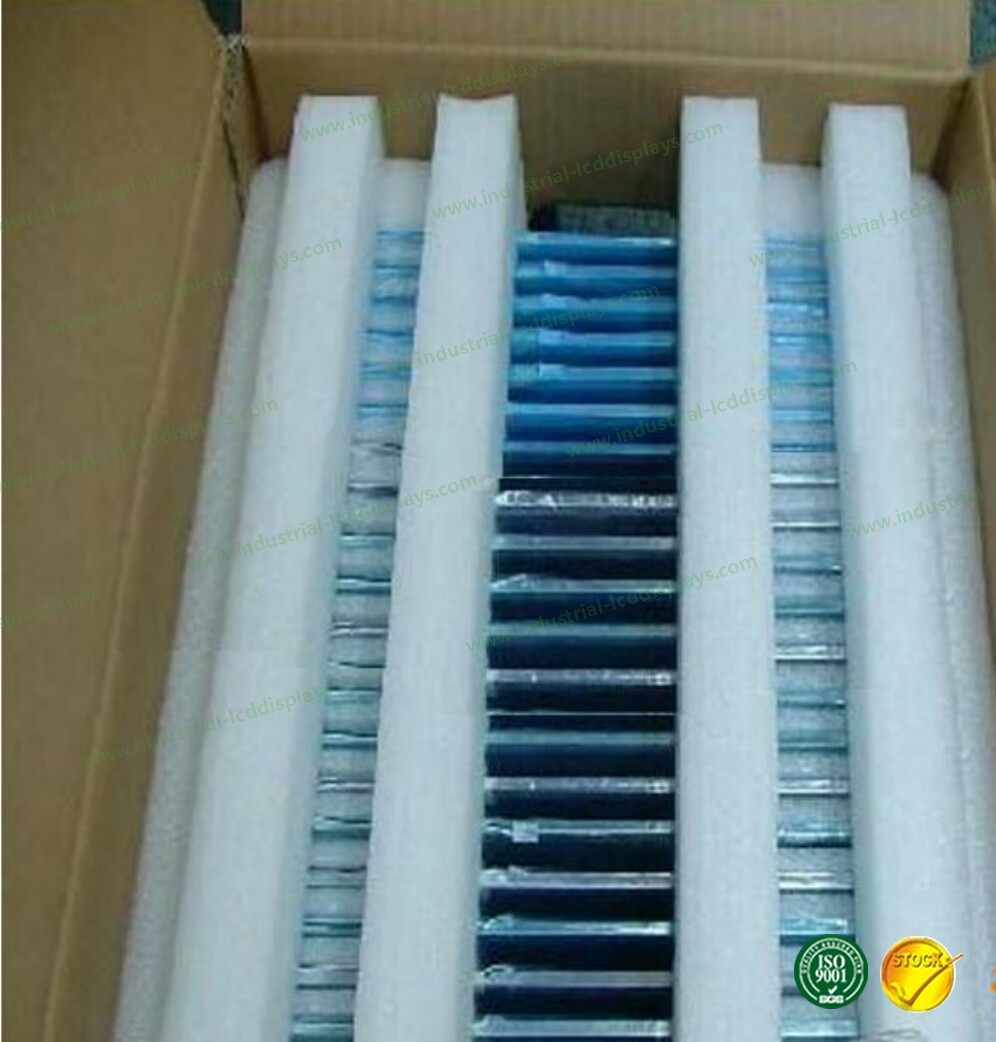

packing.
