| Categories | Drop Arm Turnstile |
|---|---|
| Brand Name: | RONA |
| Model Number: | RNCF6099 / RNCF6099S |
| Certification: | CE / ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 pair |
| Price: | negotiation |
| Payment Terms: | , T/T, L/C |
| Supply Ability: | 2000 units Per Month |
| Delivery Time: | 7-15 working days |
| Packaging Details: | Export Wooden Packing |
| Product name: | High Speed Drop Arm Turnstile , Magnetic Card Stainless Steel Access Control System |
| Driving Motor: | Brushless DC motor |
| Size: | 1200*165*990 mm |
| Passage width: | 550 mm ~1.2m |
| Temperature: | -10°C ~ 50°C |
| Work Environment: | Indoor & outdoor |
| Company Info. |
| Shenzhen Rona Intelligent Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

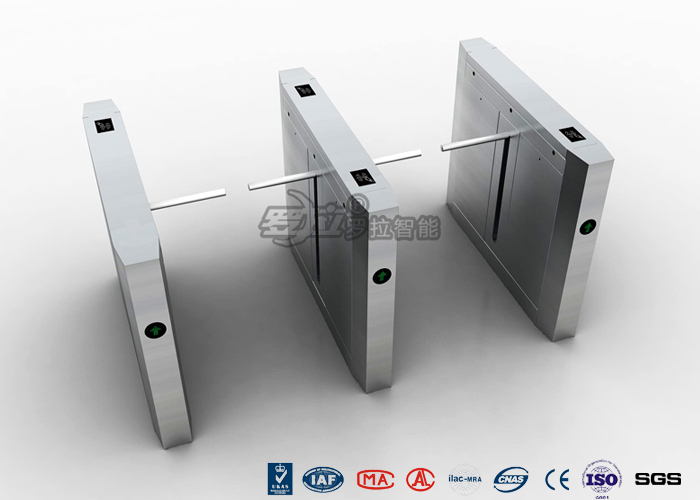

High Speed Drop Arm Turnstile , Magnetic Card Stainless Steel Access Control System
Product introduce
1) Arm drop turnstile is a high-tech product which mainly provides intelligent management to passageway, and is the upgrade product of intelligent tripod turnstile and swing barrier. Like swing barrier, this product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club those high-level places.
2) This equipment is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection, alarming equipment and direction indicating equipments..
3) Classified into two kinds: single motor (suitable for single passageway and multiple passageway.);
Double motors (suitable for multiple passageways
System Integration of the arm drop turnstile
| 1) Alternative Materials, Finishes and Custom Design |
| 2) Access control System Integration |
| 3) Ticket System Integration |
| 4) Camera System Integration |
| 5) Thermostat System Integration |
| 6) Remote-Controlled Button |
| 7) Usage Counters |
| 8) Waterproof and Dustproof Design: IP41 for mechanical module,IP65 for electric module |
Feature of the Arm drop turnstile:
| 1. NO mode & NC mode can be switched over by users easily & freely. |
| 1. Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software). |
| 3.Tailgating-detection function. |
| 4.Intruding-alarm function. |
| 5. Anti-pinch function: protection against finger entrapment and personal injury. |
| 6. Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not. |
| 7. With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of acces controllers. |
| 8. Each machine can be set by Physical Address (Optional). |
| 9. Equipped with free control software for man-machine interface & control command SDK. |
| Material | 304 stainless steel |
| Thickness | Cover 1.5 mm, case 1.2mm |
| The pedestrian width | 550mm ~1.2m |
| Brake machine control | domestic visual voice motherboard |
| Weight | 65kg |
| Size | 1200*165*990 mm |
| The environment temperature | -10 ~+50 ° |
| Input voltage | 220VAC 220 ±10% |
| Brake machine control | The whole domestic visual voice control panel |
| The pedestrian infrared | 4pairs |
| Service life | More than 3000000times |
| Direction | the arrow indicator |
| rotation model | High-performance electromagnetic photoelectric sensor |
| Movement type | Proximity switch location |
| Control signal | relay signal input |
|
