Name: Green Or Red Optical Port Adapter Double D Type FC Low Insertion Loss
Brand: CY COM
Price: 1 USD

Home > Connectors >

Green Or Red Optical Port Adapter Double D Type FC Low Insertion Loss

Categories	Fiber Optic Adapter
Brand Name:	CY COM
Model Number:	FC double "D" adapter
Certification:	ISO9001:2008
Place of Origin:	Shenzhen , China
MOQ:	100pcs
Payment Terms:	L/C,T/T,Western Union payments for offline orders.
Supply Ability:	4.5 MIllion PCS / Month
Delivery Time:	in 5-10 days
Packaging Details:	Plastic Box
Color:	Green,red

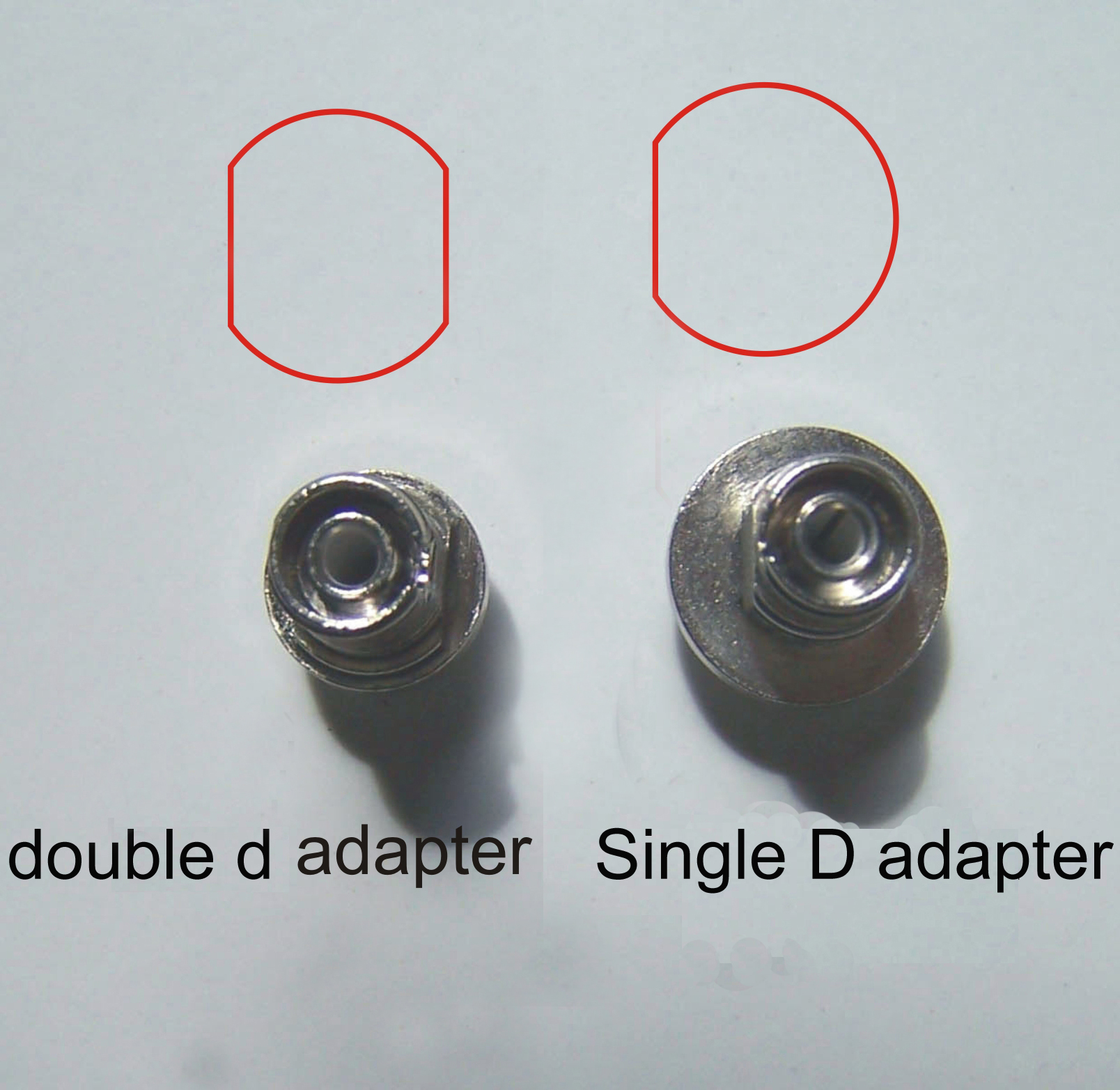

Structure:	Double D type
Material:	RoHS

Contact Now

Add to Cart

Company Info.

Shenzhen CY COM Product Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Green Or Red Optical Port Adapter Double D Type FC Low Insertion Loss

Green Or Red Optical Port Adapter Double D Type FC Low Insertion Loss

Description:

Fiber optic adapter is used for the connection and coupling between fiber active connectors. Choose proper type according to the splice of optical fiber active connector.Good agglomeration technic to ensure the best quality,high intensity and stability.

Features:

Low insertion loss;
Good repeatability and interchangeability;
Good environmental stability.

Application:

Optical fiber communcation network,data transmission,
test equitments,LAN,CATV.

Specification:

rameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC,				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	＞1000				＞1000			＞1000
Operating Temperature	℃	-40~75				-40~75			-40~75
Storage Temperature	℃	-45~85				-45~85			-45~85

Ordering Information:

For example:FC/UPC-SM-SX-Double "D" Type
Connector type: FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
Ferrule end-face: PC,UPC,APC
Core type: Single-mode(SM:9/125μm), multimode(MM:50/125μm or 62.5/125μm)
Appearance: with ear type, no ear type;
Material: copper alloy, zinc alloy, plastic.

Competitive Advantage:

Factory Guarantee:
1. As we are factory, we can guarantee our price is first-hand, very cheap and competitive.
2.To develop advanced technology ,we have built a stable relationship with scientific research center for fiber optical component home and abroad. with a capacity of 200,000 pieces per month .Our products enjoy great reputation for their advanced and precise quality worldwide.

Quality Advantage:
1.We set up a strict quality guarantee system according to the requirments of international management standard ISO9001:2008.

service advantage:
1.To cater for different requirement from our customers, we offer various OEM service.
2.We constantly seek enabling technologies and solutions to help our customers cope with ever changing
environment and requirements.
