XM18 DC15V-30V IP67 Waterproof current/voltage type copper shell Position Inductive Proximity Sensor

Categories Inductive Proximity Sensor
Brand Name: Winston/OEM
Model Number: XM18
Certification: CE,ROSH
Place of Origin: China,Zhejiang
MOQ: 1PCS
Price: Negotiable
Payment Terms: T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability: 10000PCS/Month
Delivery Time: 3-15days after get payment.
Packaging Details: Export standard carton box
OEM: YES
ODM: YES
Aviation connector: YES
Output state:: NO/NC/NO+NC
Condition: Original new
Material: Plastic , Metal
Output signal: PNP Simulation
Wording temperature: -10℃~+70℃
DC/AD: 200Hz/10Hz
Repeated precision: 0.5
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

XM18 DC15V-30V IP67 Waterproof current/voltage type copper shell Position Inductive Proximity Sensor

Inductive Linear Position Sensor Xm18 DC 15V - 30V Water Proof

Technique parameter

Detectable objectMetal
Detection distanceFlush type:2mmNon-flush type:4mm
Model availableCurrent typeXM18-3005PMIXM18-3008PMI
Voltage typeXM18-3005PMUXM18-3008PMU
Voltage range15-30VDC
Consumptionat the time of detection≤200mA…<4mA
at the time of non-detection≤20mA
Loading resistanceCurrent type0-300Ω
Voltage type2.2KΩ

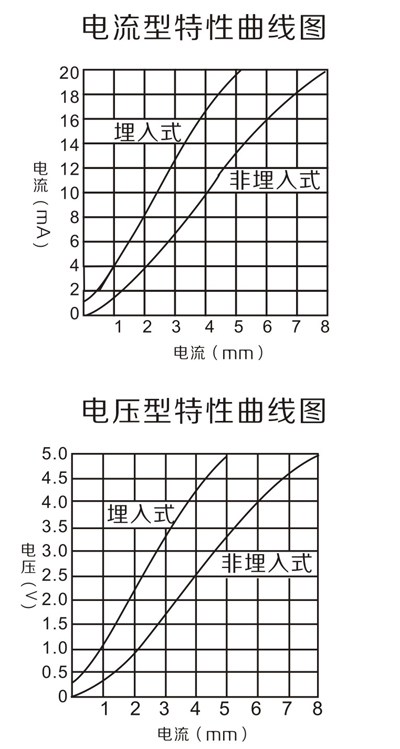

OutputCurrent type4-20mA
Voltage type0-5V/0-10V
Voltage fluctuation≤5%
Linear deviation±5%
Protection gradeIP54


Features:

1 . Diversified exterior structures
2 . Good performance of anti-interference.
3 . Many output forms
4 . High on-off frequency.
5 . Wide voltage range
6 . Dust proof,vibration proof,water proof and oil proof.
7 . With short-circuit protection and inverted connecting protection.
8 . Long service life

Model explanation of proximity switch

LM 18 30 05 N A □ / L
—— —— - —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Switch categoryOutput form


Lm: Inductance type
Cm: Capacitance type
Sm: Hall type
Am: Safety Explosion-proof type
Xm: Mimic Linear type
Hm: Reed type
Ru: Ultrasonic type

N: Three-wire Dc NpN Output
P: Three-wire Dc PnP Output
L: Two-wire Dc Output
: Ac Two-wire Output
J: Relay Contact Output
Np: NpN+PnP Double Output

Outward appearance codeOutput state


□: Cylinder type
F□: Angular Colum Type And Plane Installation Type


A: (no) normally Open (no)
B: (nc) Normally Close (nc)
C: (no-nc) normally Open-Normally Close (no+nc)
Mu: Mimic Voltage
Mi: Mimic Current
Mui: Voltage+Current

Working voltageSubsidiart functions


30: 6-36VDC 310:5-24VDC 320:12-60VDC
330:1 0-30VDC 340:10-55VDC 350:10-60VDC
360: 5-36VDC 20:90-250VAC 210:24-250VAC
220: 380VAC40:12-240VDC/24-240AC
50: Special voltage

T: with aviation connector
Y: water proof,oil proof
I: special requirement
H: high temp resistance
R: ring type

Detection distanceLong-distance


01: 1mm 05: 5mm 10: 10mm ......

L: Long-distance



Application illustration of proximity switch

1 . Spacing detection
2 . Various location detection of machinery process center
3 . Inspection of the exiating of milk inside the paper package
4 . Arm location detection of robot
5 . Bottle lid detection
6 . Stopper detection of grinding machine

Dimension
