Brand Name: | HUATEC |
Model Number: | IOW Block |
Certification: | CE, Calibration Certificate |
Place of Origin: | China |
MOQ: | 1 pc |
Payment Terms: | TT, L/C, Western Union |
Supply Ability: | 1000pcs per month |
Delivery Time: | 3-7 working days,V1 and V2 have stock |
Packaging Details: | Packed in ABS engineering plastics,and then reinforced with carton for outer packing |
Product Name: | Ultrasonic Calibration Block |
Type: | IOW Block |
Material: | 1018 carbon steel, LY12/6063/7075 aluminum,304 stainless steel |
Standard: | British Standard 2704 |
Dimensions: | 305mm x 75mm x 50mm |
Packing: | ABS engineering plastics |
Company Info. |
HUATEC GROUP CORPORATION |
Verified Supplier |
View Contact Details |
Product List |

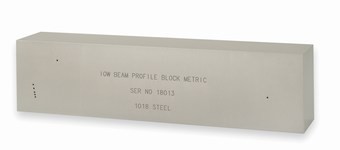

Ultrasonic Calibration Blocks IOW for beam profile measurement of angle beam transducer
Specifications:
Calibration blocks is an important supplementary material in the
Ultrasonic testing, used to calibrate the sensitivity of the
ultrasonic flaw detector and ultrasonic probe. Our testing block is
certificated by the authority of the state depeartment. Our
products include: domestic standards UT blocks, European standard
UT block, NDT block, hexagonal testing block, and so on.

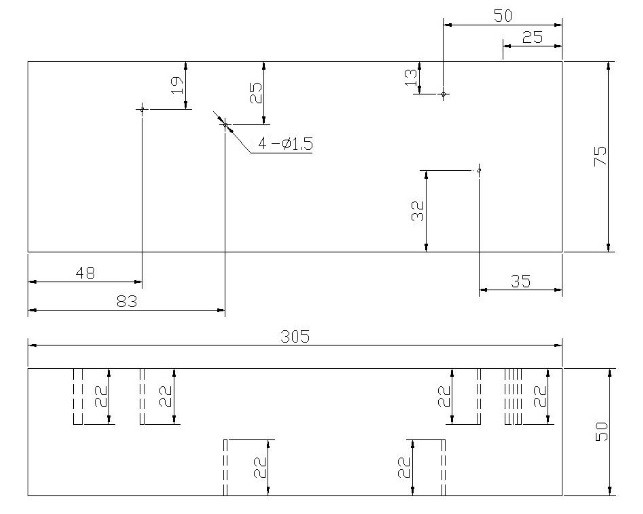

Used for beam profile measurement of angle beam transducers and measurement of transducer angles. Contains nine 1.5mm diameter x 22mm deep side drilled holes. In accordance with British Standard 2704 requirements.
Dimensions: 305mm x 75mm x 50mm

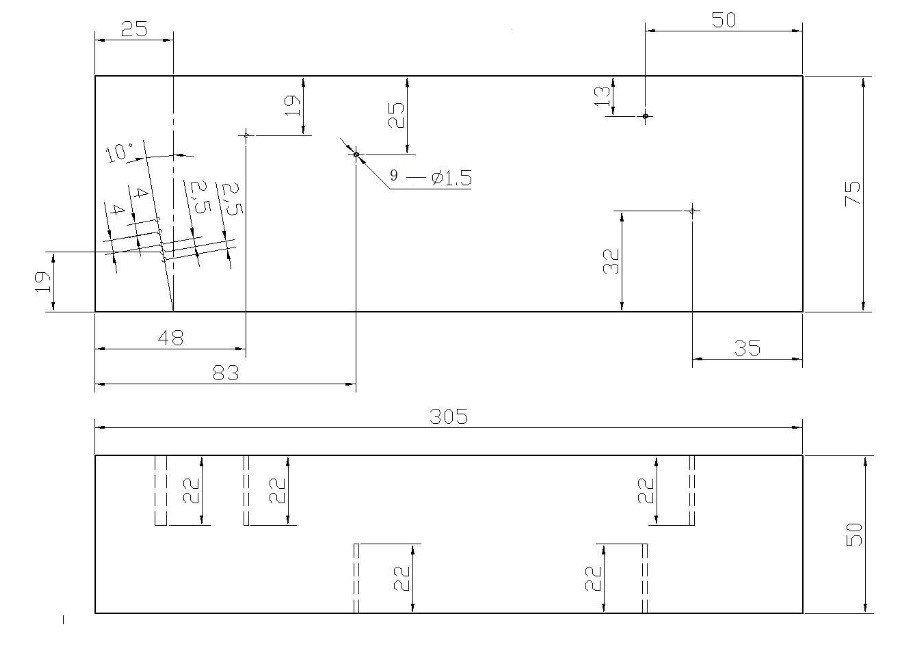

IOW TYPE2:
![]() |
