Narrow bezel DID Video Wall 3840X2160 UHD high definition 2X2 LCD 50 inch

Categories LCD Video Wall
Brand Name: ZXT
Model Number: ZXT-D3D500A
Certification: CE/ROHS/FCC
Place of Origin: China
MOQ: 4pcs
Price: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3,000pcs per month
Delivery Time: 7 working days after payment
Packaging Details: Carton Box, Wooden Box or Flight Case
Panel Size: 50" LED Screen
Bezel Width: 22mm (between Screens)
Resolution: 3840X2160
Display Area: 1103.04(H)x622.41(V)mm
Color: Black
Material: metal case
Product type: LCD Video wall
Application: Indoor
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Narrow bezel DID Video Wall 3840X2160 UHD high definition 2X2 LCD 50 inch

Narrow bezel DID Video Wall 3840X2160 UHD high definition 2X2 LCD 50 inch

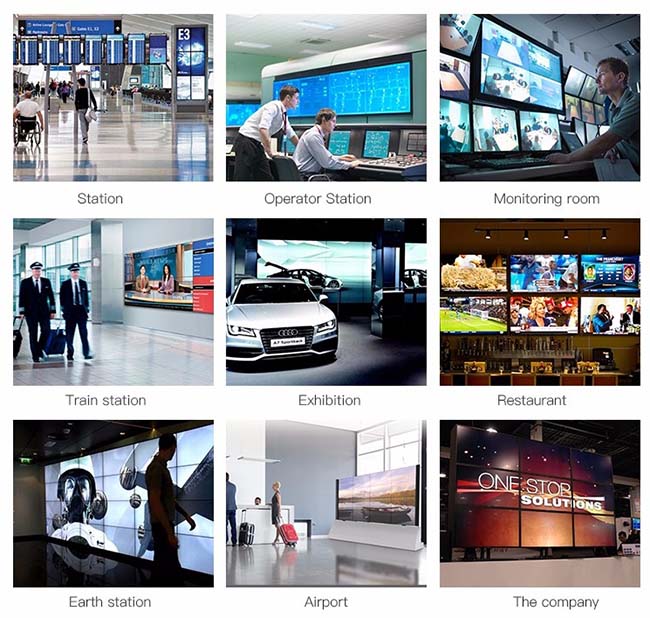

1, Application :


Business Organizations: supermarket, shopping malls, exclusive agency, chain shops, large-scale sales,

hotels, restaurants, travel agencies, etc.


Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops, etc.


Non-profit Organizations: Telecommunications, post offices, hospital, schools, etc.


Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,

stadiums, museums, convention centers, ticket agencies, HR market, lottery centers, etc.


Real Estate Property: Apartments, offices, commercial buildings, model rooms, property brokers, etc.


Entertainments: Movie theaters, fitness halls, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course, etc.


2, Product Introduction


LCD video wall is a special multi-monitor setup that consists of multiple computer monitors, video projectors, or television sets tiled together contiguously or overlapped in order to form one large screen. our video wall use Samsung or LG high definition DID-LCD glass and stable LED back light for panel makes the panel stable and long working time as 7days and 24hours, high resolution up to 4K display. Driving & powerful monitor control board with multi types contectors as HDMI, VGA, DP and AV makes our video could meet various working scenes. Also, be based on few years experience and feedback from our client, our video wall unit not only can be use for landscape position but also could be portrait.


3, Product Specification

Panel Specification
Model NoVD-D3D500A
Panel Size22MM
Aspect Ratio16 : 9
Active Display Area1103.04(W) x 622.41(H)
BacklightLED
Max Resolution Support3840x2160(Max)
Color16.7M
Brightness(nits)4000nits
Contrast500 : 1
Visual Angle (H/V)178°/178°
Response Time<6ms
Life(hrs)>50,000(hrs)

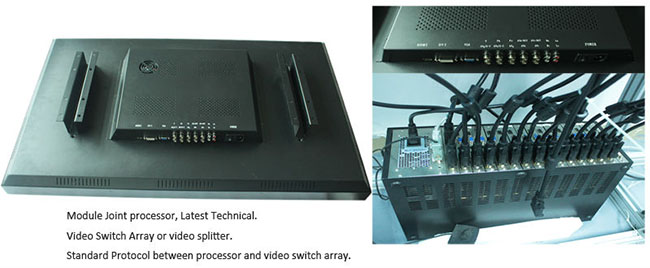

Video Wall Controller(Built-in each screen)
VGA input1
DVI input1
HDMI Input1
Composite Video input2(BNC x 2)
Y,Pb,Pr/Y,Cb,Cr input1(BNC X 3)
Composite Video Output2(BNC X 2)
S-video2(BNC X 2)
Control signal input and loop outRS232(RJ45-8)
Split Screen (Matrix is optional)Support Picture in Picture(PIP/POP)
Video System
Color SystemPAL/NTSC/SECAM
HDTV Mode480P, 576P, 720P, 1080P
OSD Display(Menu Language)Chinese/English
Power
Power supplyAC 100V ~ 240V, 50/60Hz
Maximum Power Consumption<170W
Standby Power Consumption<3W
Temperature
Working Temperature0° ~ 50°
Storage Temperature20° ~ 60°
Working Humidity20%~80%
Storage Humidity20%~80%
Installation System
InstallationWith wall bracket for each single unit lcd
Gross Weight25kg
Dimension911.7X524.2X124 mm
Accessories
Split LCD UnitYes
BracketYes(wall bracket for each single unit lcd)
Power cableYes
Remote controllerYes
Video wall controllerYes(Built-in each screen)
Splicing softwareYes
