Universal Automatic RFID Label Dispenser Machine Integrated With RFID Label Reader And Antenna

Categories IOT RFID Reader
Brand Name: Andea Electroncis
Model Number: TB1001U
Pla of Origin: CHINA
MOQ: 1 Piece
Pri: Negotiable
Supply Ability: 500~1000 Sets Per Month
Delivery Time: 3~5 work days
Packaging Details: Standard Export Carton, Foam and Protective Film
Payment Terms: T/T, Western Union, Paypal
Place of Origin: CHINA
Operating Frequency: 13.56MHz
Compatible Protocols: ISO 15693 / ISO 18000-3M1
Communication Interface: USB
Power Supply: AC 100~240V, 50/60Hz
Tags Requirement: Tags in roll (Roll diameter≤20cm)
Read/Write: Support
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Universal Automatic RFID Label Dispenser Machine Integrated With RFID Label Reader And Antenna


Universal HF RFID Label Dispenser Integrated With Reader And Antenna


Product Description:


The HF RFID label dispenser uses the latest reflective sensor technology to give you one simple adjustment for label length. As you pick up a RFID tag, the next one is immediately advand. The label is presented right at the front of the machine, convenient for both left-handed and right-handed operators. Fast label loading. Also, it is integrated with built-in ISO15693 RFID reader and antenna, during the process of dispensing, it also finish the read and write the tag.


This dispenser could link with barcode scanner, after integration, on the scanner reads information from barcode, it could be sonnest written into the RFID tags.


Technical Specification
ModelTB1001U
Operating Frequency13.56MHz

Compatible Protocols

ISO 15693 / ISO 18000-3M1

Communication Interface

USB

Power Supply

AC 100~240V, 50/60Hz

Tags Requirement

Tags in roll (Roll diameter≤20cm)

Read/Write

Support

Dimension

442*320*295mm

Weight9KG

Why Buy The RFID Label Dispenser Integrated With Reader And Antenna?


It brings great convenience, to improve working effiency and accuracy.


Product Features:


  • RFID label dispenser integrated with built-in reader and antenna is a highly integrated equipment of "tag dispenser + RFID reader + waste paper recycling device" .
  • Supported by software, after scanning the barcode, the reader writes data into the first tag on the dispenser, then as you pick-up a tag from the dispenser, the next tag is immediately and automatically advand, in this way, to realize data collection and written work rapidly. Working efficiency is 3~4 times higher than the general reader .
  • Equipment software API interface (DLL and Active X control) and the technical documentation are provided, easy for application programming design.

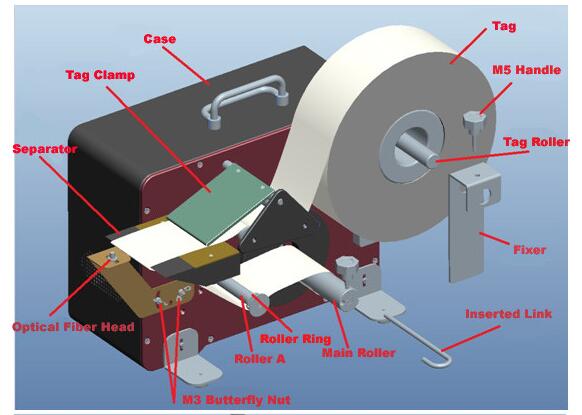

Structure:
