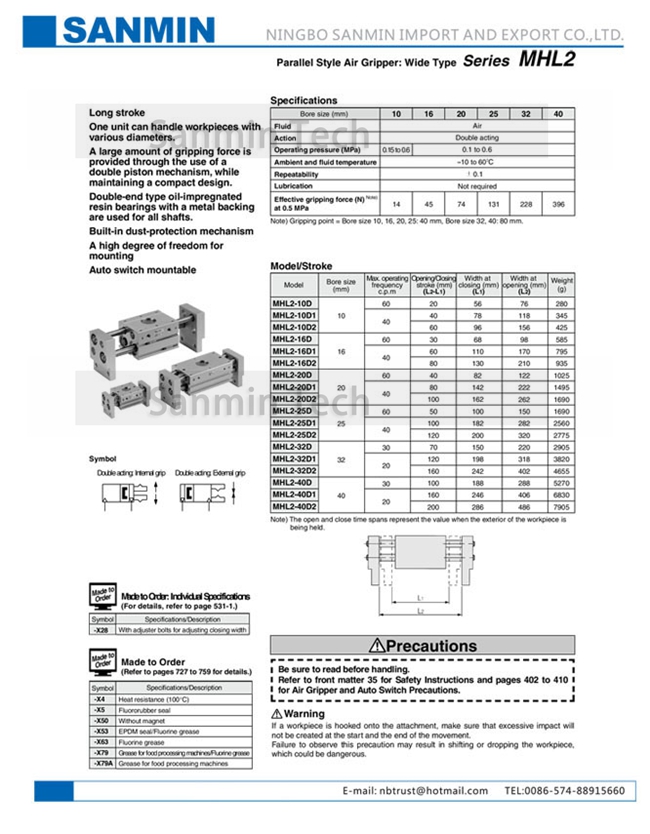

MHL Long Stroke Air Gripper Wide Type Series MHL2 0.1MPa - 0.6 MPa Pressure
Specifications
Bore Size | 10 | 16 | 20 | 25 | 32 | 40 |
Fluid | Air | |||||
Action | Double Acting | |||||
Operating Pressure ( MPa ) | 0 . 15 to 0 . 6 | 0 . 1 to 0 . 6 | ||||
Ambient And Fluid Temperature | - 10 to 60 ℃ | |||||
Repeatability | ± 0 . 1 | |||||
Lubrication | Not required | |||||
Effective gripping force ( N) Note ) at 0 . 5 MPa | 14 | 45 | 74 | 131 | 228 | 396 |
Note Gripping point = Bore Size 10 ,16 , 20 : 40 mm , Bore Size 32 , 40 : 80 mm .
Long Stroke
One unit can handle workpieces with various diameters .
A large amount of gripping force is provided through the use of a double piston mechanism , while maintaining a compact design .
Double - end type oil impregnated resin bearingds with a metal backing are used for all shafts .
Built - in dust protection mechanism
A high degree of freedom for mounting
Auto switch mountable
