Street LED Light Components With 24W Bridgelux LED Replace HPS Lamp

Categories LED Street Light Components
Brand Name: Sollente
Model Number: SOE-SL24W-CR45X143
Place of Origin: China
MOQ: 10 sets
Price: Negotiation
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pcs / week
Delivery Time: 3-14 working days
Packaging Details: Carton Box
Product Name: Retrofit Components LED Street Light With 24W Bridgelux Led Replace HPS Lamp
Lens Size: L250*W74*H9mm
Beam Angle: 45X143 degree polarized
Match Led: XTE XPE XPG 3535 SMD
Material: Optical Grade PC
Efficiency: 91%
Led voltage: 2.86-3.4V
Lumen: 156lm/W
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Street LED Light Components With 24W Bridgelux LED Replace HPS Lamp

Retrofit Components LED Street Light With 24W Bridgelux Led Replace HPS Lamp

Quick Details:

1. Dimension: L250*W74*H9mm
2. Beam Angle: 45X143 degree
3. Match Led: Cree XTE , SMD 3535
4. Materials : Optical Grade PC, Aluminm
5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable
6. Efficiency: >91%


Specifications:

Product name

Retrofit Components LED Street Light With 24W Bridgelux Led Replace HPS Lamp

Model NoSOE-SL20W-CR73X143
Main parts20W Lens+ Silicone gasket + AL PCB mounting leds + LED driver , (Meanwell Led driver is available)
Lens MaterialPC Optical
MOQ1pcs
Lens sizeL250*W74*H9mm
Driver enclosureplastic or aluminum case for choice
PCB Circuit

12 series 2 parallel, or As client's reuqest

LED details3V-3.6V , 300-350mA , 160-170lm/w, CRI 70

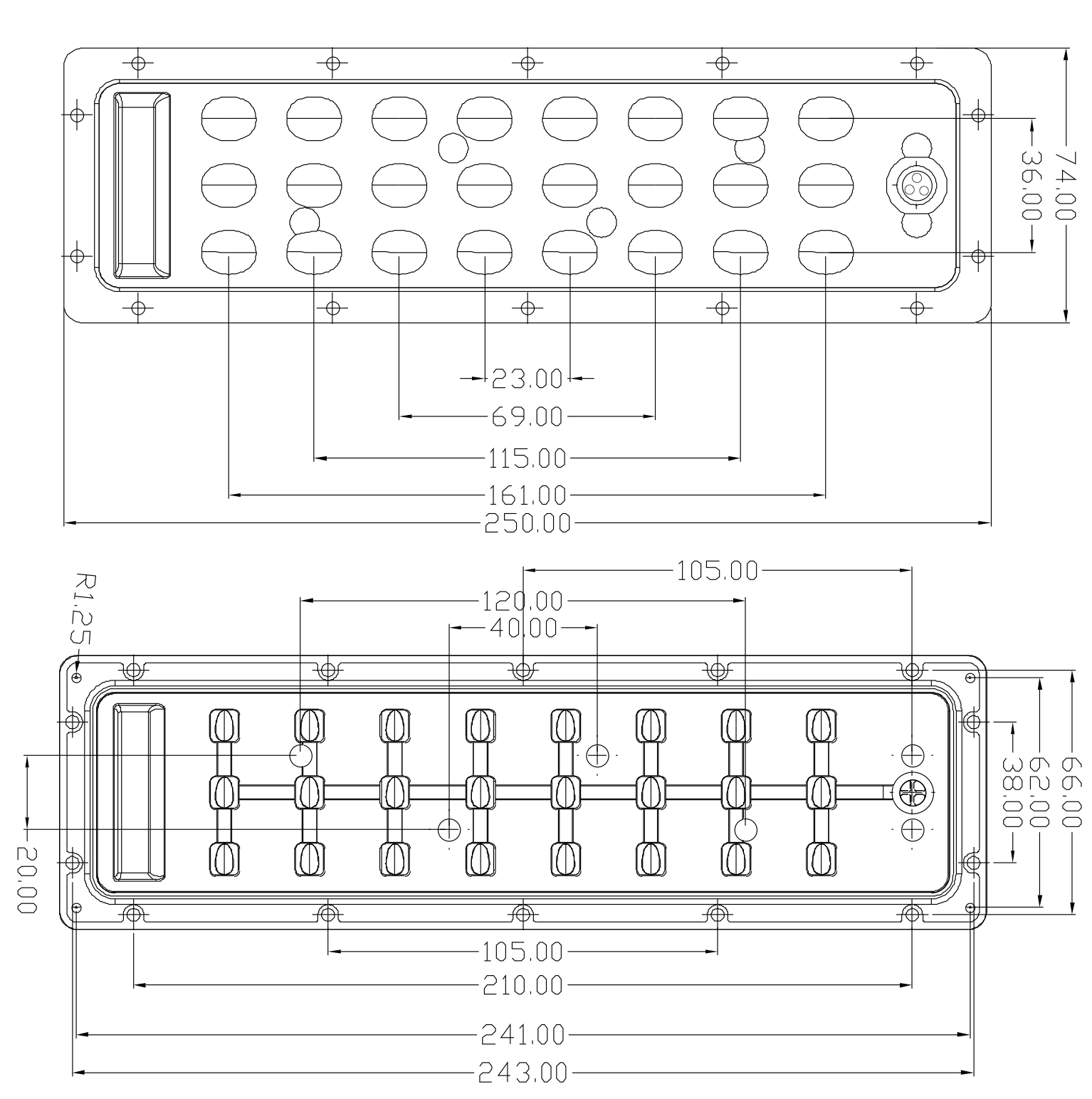

24w XPE Led Street Light Lens Drawing:

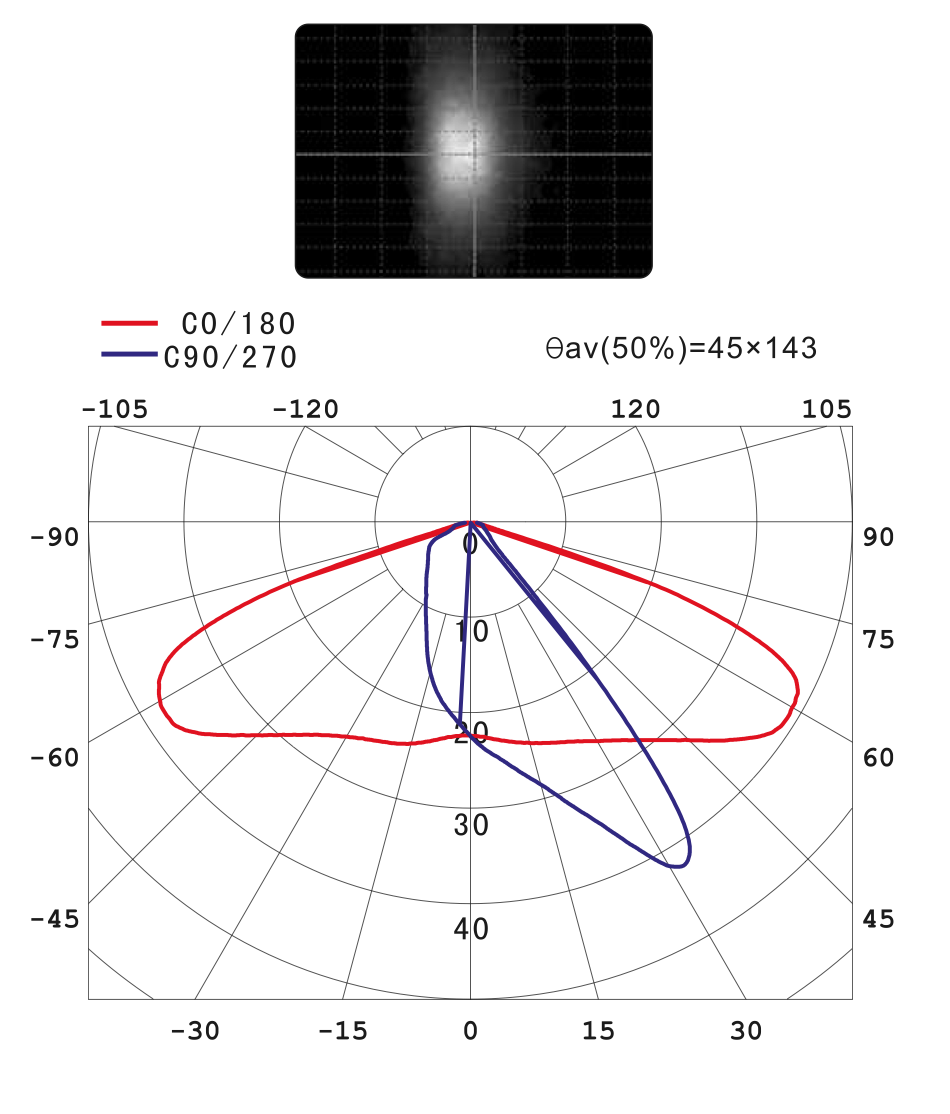

Distribution of 24W Led lens:







Features :

  1. This SKD 20W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 40W , 60W and so on .
  2. It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. PCB could design as customer's request , Like circuit , Logo and so on.



Competitive Advantage:
1). Using high quality imported CREE XTE, XPG, XPE
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.





Application:
Applicable for gas station, parking lot, platform, garage, dock, shopping mall, school etc. High light efficiency, long life time, excellent color rendering index, stable light, no glare, energy-saving, wide range of color temperature, smooth visual feel, stable light output, etc.


Delivery and Shipping:

Trade TermEXW , FOB , CNF
Payment TermTT , PayPal , Western Union
Lead Time

3-7 working days for samples order, 7-14 working days for bulk order

Shipment Term

Sea, Air, Express DHL, Fedex, UPS, TNT
