Epistar Single Color P10 LED Screen Modules Red Blue Yellow White Green

Epistar Single Color P10 LED Screen Modules Red Blue Yellow White Green

Product Parameters

Item	P10 single Color
Model Number	p10
Pixel Pitch	10mm
Pixel Density(dots/m²)	10000
Pixel Configuration	1Y,1B,1G,1W
LED Type	Epistar

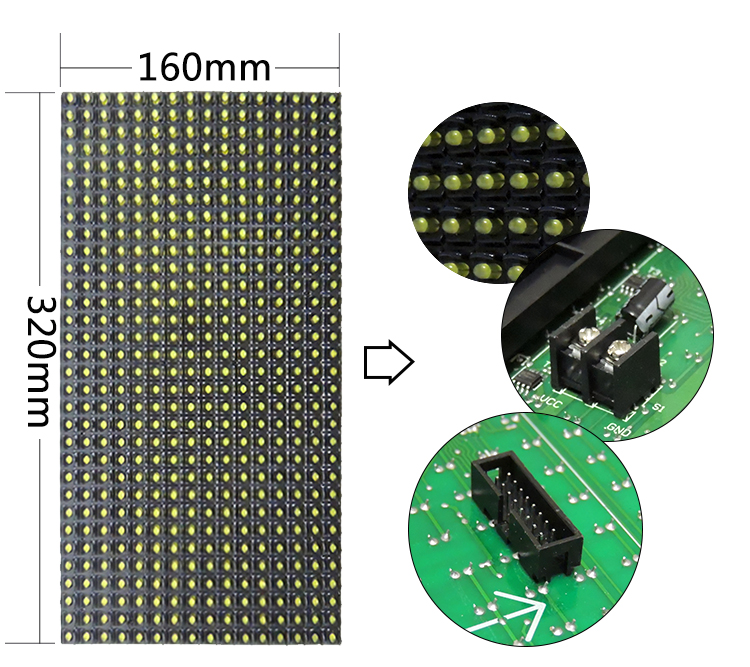

Module size(mm)	320*160
Module Resolution(dots)	32*16
Min.Viewing Distance(m)	≥10
Brightness(cd/m²)	≥2000
Viewing Angle(degree)	≤120°
Average Power Consumption(w/m²)	200
Scan Mode	1/4
Protection Level	IP65
Cabinet Size(mm)	960*960
Color Temperature	The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements
Input Voltage	AC220 V/50HZ or AC 110V/60HZ
Refresh Rate	LED screen refresh frame frequency recommended is no less than 1200HZ(recommended)
Color	64g color(on the condition of 4096 gray scale)
Horizontal/Vertical viewing angle	<120°
Gray Scale	Recommended 14BIT
Effective Communication Distance(without relay)	Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters.

Warranty and after-service:

Warranty:

1. We guarantee all our display, modules, spare parts (Silan Chip) for two years.

2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.

3. After warranty , we also can offer you the parts for replacement at our bottom price.

4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.

5. We also could solve problems for you until it recovers well by remote control!

Delivery Time:
1.Delivery time: Accomplish manufacturing within 2~3 weeks after receiving the deposit.
2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.

Installation:

1. We can assist the training and technical support for the customer in the factory, if the customer requires so.

2. We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company.

3. Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
