Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency

Categories Roofing Sheet Roll Forming Machine
Brand Name: HC
Model Number: HC25
Certification: ISO CE
Place of Origin: Hebei, China (Mainland)
MOQ: 1set
Price: USD8000-15000
Payment Terms: D/A, Western Union, L/C, T/T
Supply Ability: 20 sets per month
Delivery Time: 30 work days
Packaging Details: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Production: 8-12m/min
Power(W): 4+4kw
Dimension: 7*1.5*1.5m
Weight: 4T
Thickness: 0.3-0.8mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

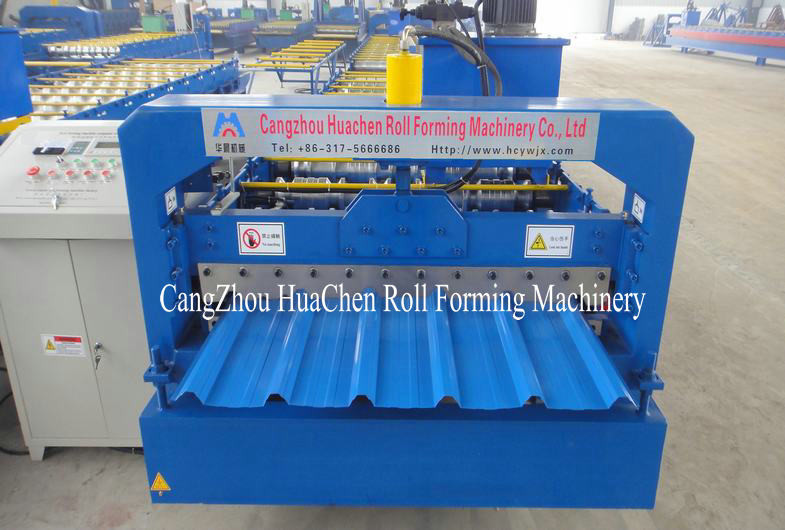

Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency

Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency


Supply various roof/wall profiles

Accept customized design

Machine working life could be more than 10 years

Supply technical support for all life


Product Description

Working flow:

Decoiling → Feeding & Guiding → Roll forming → Cutting → Output the finished production


High efficiency corrugated galvanized roofing sheet roll forming machines producer


Technical specifications:


ItemParameter

Suitable

Material

TypePPGI/GI/PPGL
Thickness0.3-0.8mm
Wide914mm/1000mm/1200mm/1250mm/1450mm
Yield Strength230~550MPA

Product

Specs

ProfileCustomized profile
Effective widthBase on customized profile
LengthAny length

Power

Specs

Voltage380V/3PH/50HZ, accept customization
Main Motor4kw
Hydraulic motor3kw
Hydraulic pressure10-12MPa

Machine

Specs

Forming steps number13~20 steps
Shaft Material45 # steel tempered,Φ70~90mm
Roller Material45 # steel chrome coated
Main machine body350# H steel welded
TransmissionChain and Sprocket, chain size 1 inch
Wall Plate16mm thickness
Blade materialCr12 mould steel with quenched treatment 60-62°
Forming Speed8-12m/min for standard solution
Cutting system

Length-set cutting after roll formed

and could pre-cutting to switch off the coils

Control SystemDelta PLC and Inverter
Manual decoiler

Max width of coiling: 1000~1450mm

Max weight of loading: 5000kg

Output Supporter2 Pcs Simple Supporter
Dimension of the machine7.5m~11m×1.5mm×1.2m
Weight of the machine3.5 ton ~6 ton
