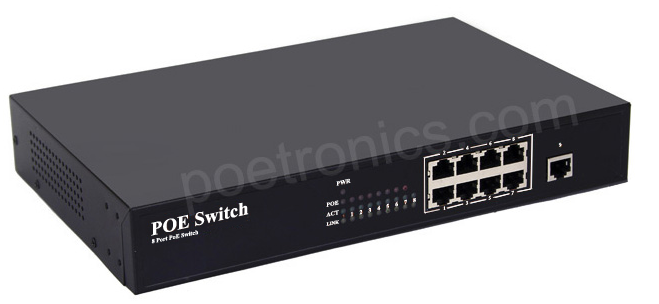

POE-S1081T 8 Port IEEE802.3at 10/100Mbps POE Switch (150W Built-in Power)

POE-S1081T

8 Port IEEE802.3at 10/100Mbps POE Switch

1 Port 10/100Mbps Uplink

1.8Gbps Bandwidth, 150W Built-in Power

Main Features

1. IEEE 802.3at Power over Ethernet PoE compliant

2. Supports 10/100Mbps fast Ethernet

3. 8×100M bit Auto-MDIX PoE port, 1×100Mbps RJ45 port uplink

4. 150W Internal power supply

5. Provides up to 30 watts each PoE port

6. Automatically detects the PoE class level of a Powered Device

7. 1.8Gbps Backplane bandwidth

8. Forwarding rate: 100 Mbps/148,800 pps; 10 Mbps/14,880 pps

9. Status LEDs: System Power, PoE, 100 Mbps, and Link/Activity

10. Full wire-speed non-blocking reception and transmission

11. Store-and-forward switching method

12. Back pressure Flow Control for Half-Duplex mode

13. IEEE 802.3x Flow Control for Full-Duplex mode

14. Power saving technology powers down unused ports when its connected device is in standby mode

15. Plug and Play Design

16. Sturdy rack mountable metal case

17. Easy installation and use, no need to convert by software and network protocol

Detailed Specification

Item: 8 Port Power Over Ethernet Switch (30W PoE)

Model: POE-S1081T

Network Interface:

- 8 10/100Mbps POE Ports

- 1 10/100Mbps Uplink Port

Data Transfer Speed: 100M/1000Mbps full duplex

Internet Port: 100BASE-T or 1000BASE-TX POE RJ-45 port

Performance:

- Backboard Bandwidth: 1.8Gbps

- Network delay(100 to 100M bps); Max 20 microsecond

- Packet buffer memory: 96KB

Database size:

- 1,024 MAC address

- 1000Mbps/1488.00pps, 100 Mbps/148,800pps, 10 Mbps/14,880pps

Network Protocol Standard:

- IEEE 802.3i 10BASE-T

- IEEE 802.3u 100BASE-TX

- IEEE 802.3x Flow Control

- IEEE 802.3at Power over Ethernet

LED Lights: Status Indicator of Power, PoE, Link/Activity

Power Supply: 150W Built-in Power Adapter

Dimensions: 280mm×180mm×35 mm; Weight: 2kg/piece

Ambient Environment:

- Operating Temperature: 0°C~40°C (32°F~104°F)

- Operating Humidity: 10%~ 90% (non-condensing)

Electromagnetism Compatibility:

- CE Class B

- FCC Part 15, Class B

- VCCI Class B

- C-Tick

Safety Approval: CE/LVD, FCC, ROHS

Warranty: One year

Package Content: 8 Port POE Switch, Data Sheet, Power Cord
