MIC5239-3.3YM Rectifier Diode Low Quiescent Current 500mA μCap LDO Regulator fast recovery rectifier diodes high pow

Low Quiescent Current 500mA µCap LDO Regulator

Features

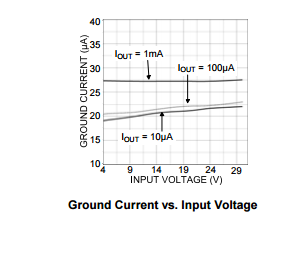

• Ultra-low quiescent current (IQ = 23µA @IO = 100µA)

• Continuous 500mA output current

• Wide input range: 2.3V to 30V

• Low dropout voltage: 350mV @500mA

• ±1.0% initial output accuracy

• Stable with ceramic or tantalum output capacitor

• Logic compatible enable input

• Low output voltage error flag indicator

• Overcurrent protection

• Thermal shutdown

• Reverse-leakage protection

• Reverse-battery protection

• High-power SOIC-8, MSOP-8 and SOT-223 packages

General Description

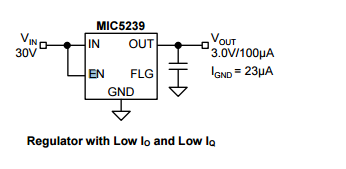

The MIC5239 is a low quiescent current, µCap low-dropout regulator. With a maximum operating input voltage of 30V and a quiescent current of 23µA, it is ideal for supplying keep-alive power in systems with high voltage batteries. Capable of 500mA output, the MIC5239 has a dropout voltage of only 350mV. It can provide high output current for applications such as USB.

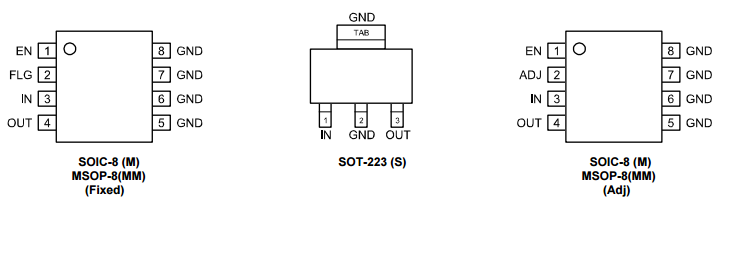

Pin Configuration
