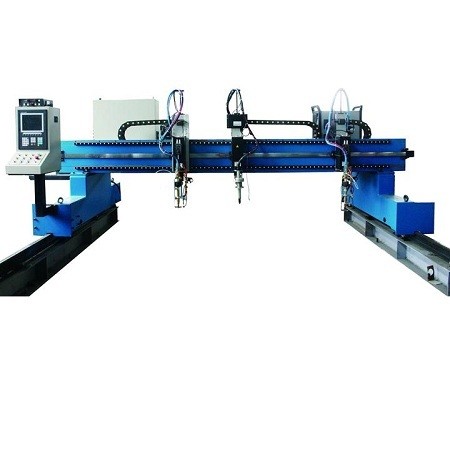

| Categories | Metal cutting machine |
|---|---|
| Brand Name: | hengrui |
| Model Number: | HR-4060 |
| Certification: | CE ISO |
| Place of Origin: | china |
| MOQ: | 1 |
| Price: | USD 8800-13800 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 SETS ONE MONTH |
| Delivery Time: | 8 days |
| Packaging Details: | wooden case |
| cutting size: | 4000x6000mm |
| mode: | flame and plasma |
| color: | blue or white or red |
| motor: | servo motor |
| Cutting Technical Data | |||||
| 1 | Model | HR-4060 | HR-4080 | HR-5060 | HR-6080 |
| 2 | Machine dimension | 4000x6000mm | 4000x8000mm | 5000x6000mm | 6000x8000mm |
| 3 | Effective Cutting area | 3200x4000mm | 3200x6000mm | 4200x4000mm | 5200x6000mm |
| 4 | Torch Lift Distance | 200mm | |||
| 5 | Cutting Thickness | Flame: Piercing Cutting: 5-80 mm Edge Start: 5-150 mm Plasma: Piercing Cutting: 0-45 mm Edge Start: 0-65 mm | |||
| 6 | Transmission Style | Rack & Gear | |||
| 7 | Motor | Servo motor or stepper motor , Dual-side | |||
| 8 | Cutting Speed | For Servo Motors: 0-10000 mm / min For Step Motors: 0-4000 mm / min | |||
| 9 | Positioning Accuracy | ≤±0.2 mm /m | |||
| 10 | Repeat ability | ≤±0.3 mm /m | |||
| 11 | Running speed | 12000(mm/min) | |||
| 12 | Cutting Mode | Plasma or Flame or plasma and flame dual use | |||
| 13 | Torch & Number | One Plasma Torch / One Flame Torch / One Plasma Torch + One Flame Torch | |||
| 14 | Flame cutting Gas Pressure | Oxygen:0.5-0.8MPa Purity: 99.5%; Flow:1.0M3/h Fuel Gas :Propane or Acetylene Pressure:0.05-0.1MPa | |||
| 15 | CNC Controller | Start / Jiaoda / Powermax,etc | |||
| 16 | Plasma Power | Huayuan or owned | |||
| 17 | Programming software | Auto CAD | |||
| 18 | Nesting software | Fastcam | |||
| 19 | Gearbox | Neugart planet | |||
| 20 | Working temperature | - 10°C -45°C | |||
| 21 | Humidity | <90%, no condensation | |||
| 22 | Surroundings | Ventilation, no big shake | |||
| 23 | Power voltage | 3×380V±10% or up by user’s local condition | |||
| 24 | Operation language | English or Chinese or Russian | |||
| 25 | suggest the drawing | Installation H beam foundation | |||
| 26 | Cutting table | ||||
| 27 | Cutting Table | Normal Cutting Table /work piece collect drawer cutting table / smoke and dust collector with work piece collect drawer cutting table.(We can supply drawing of the cutting table with the machine for free.) | |||
|
