AC Asynchronous Motor Washing Machine Spin Motor for Global Market HK-168T

Categories AC Asynchronous Motor
Place of Origin: china
Certification: ISO,CCC,CE,ROHS,IEI
Model Number: HK-168T
MOQ: 1pcs
Price: negotiable
Packaging Details: 4PCS/carton, 20 pallet/20GP container
Delivery Time: 10-15 days
Payment Terms: T/T,L/C
Supply Ability: 8000pcs/day
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

AC Asynchronous Motor Washing Machine Spin Motor for Global Market HK-168T

AC Asynchronous Motor Washing Machine Spin Motor for Global Market HK-168T

Quick detail

  • global markt for washing machine motor
  • 4 pole washing machine motor parts
  • Single Phase AC Asynchronous Motor with little shape
  • new design Appliance Motor Spin Motor for washing machine
  • All our products pass the CE/CCC/ROHS/SGS/ISO9001/TUV/BV
  • excellent running performance, little shape
  • Specialized in Manufacturing and Supplying a wide range of Electric Motors

1.Features

2.Advantages

1) We are one of big manufacture for producing washing machine motor,wet grinder motor and air condition motor in huzhou,zhejiang. with 250 Worker,more than 20 years motor experience.

2)8000pcs per day production capacity,2 hours to shanghai Port port.3 hours to Ningbo port. Always force on delivery time and quality to get so many long-term cooperation customers.We hope can to be your one of partner to grow each other business together.

3) Safe and reliable, low noise, good starting, long life, etc.

4) Our products pass the CE/CCC/ ISO9001/TUV/BV/ IEI/ROHS

5) The motor can be designed and produced according to your request.

6) We will send you some samples for your further inspecting.

7) We have more detailed specifications.If you are interested in, please mail us.


3.More detail

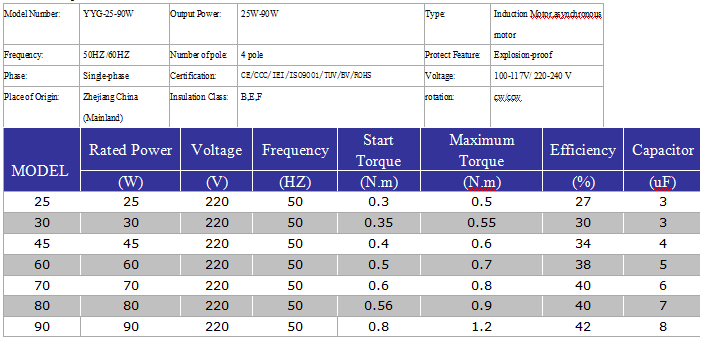

More Specifications:

Product Name

Spin motor

Voltage

100V, 110V, 127V, 220V, 230V, 240V, 220-240V

Frequency

50Hz, 60Hz, 50/60Hz

Power

25-90W

Material

Stator lamination: Silicon steel Q195

Rotor lamination: Silicon steel Q195

Rotor end ring: primary ingot

Shaft: Steel #45 C D: Φ10 or Φ12

Cover(top/bottom): galvanized steel or aluminium

Winding: Enamelled round copper/aluminium/copper clad aluminium wire

Insulation class

Class B. Class E or Class F

Pole

2poles 4 pole or 6 pole

Bearing type

Oil impregnate Bush bearing or ball bearing based on customer’s request

Noise

<55db

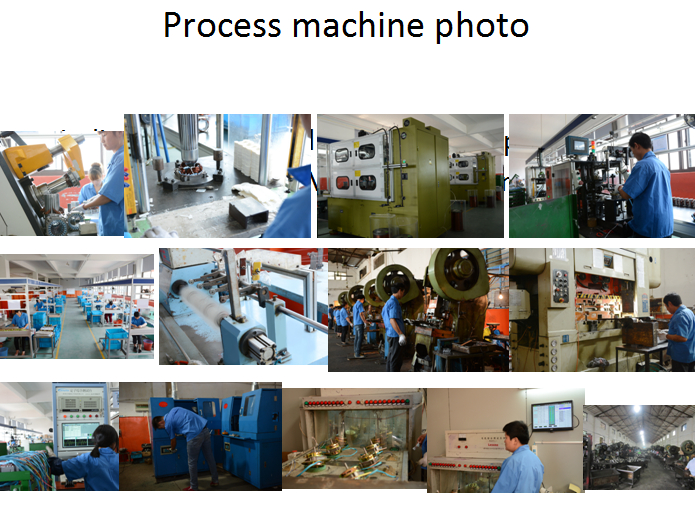

4.The processing of producing motors

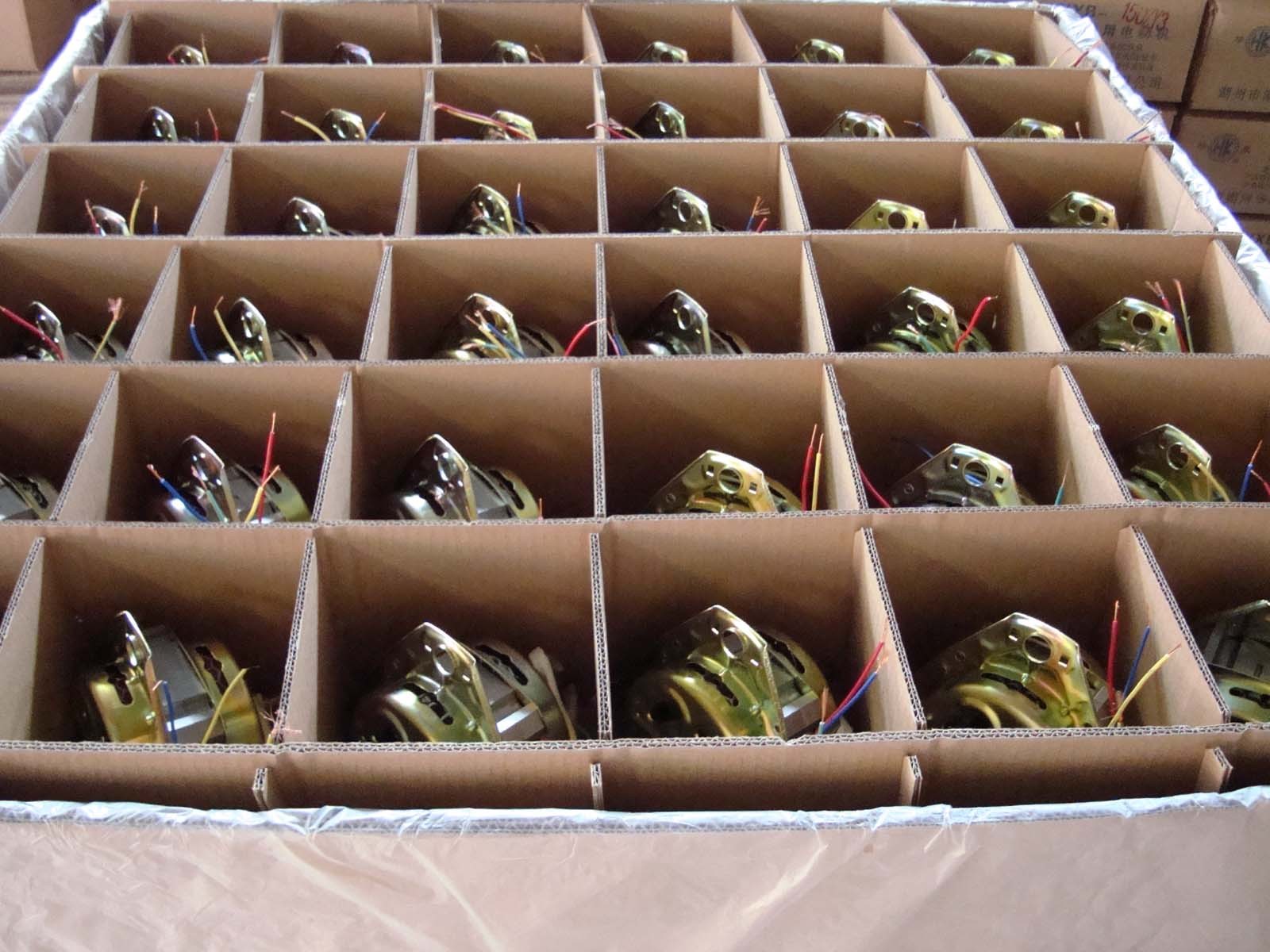

5. Packing detail

4 pcs one carton with foam

one container (20GP)containing 5000-6000pcs

One pallet 294 pcs for spin motor.

One pallet 216 pcs for wash motor.

One container (20GP)containing 20 pallets

Can be customized according to customer’s requirement packaging.

6. Why choose us

1) Safe and reliable, low noise, good starting, long life, etc.

2) All our products pass the CE/CCC/ROHS/SGS/ISO9001/TUV/BV

3) This motor can be designed and produced according to your request.

4) We will send you some samples for your further inspecting.

5) We have more detailed specifications.If you are interested in, please mail us
